In stock · Ready to ship Peplink MAX BR1 Mini LTE Cellular Router (FirstNet Capable)
Cellular Routers

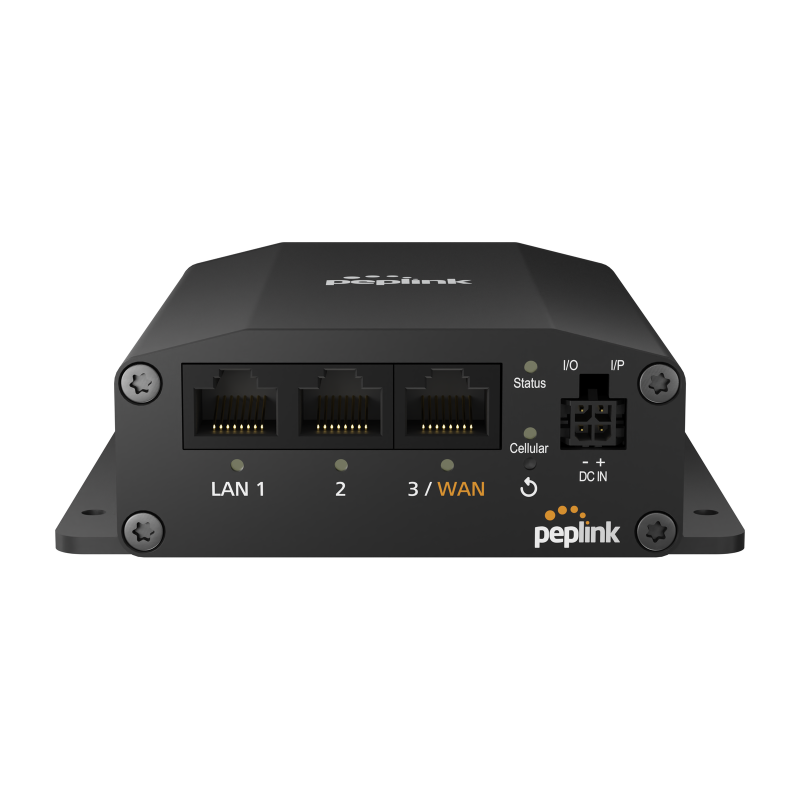

Peplink MAX BR1 Mini LTE Cellular Router (FirstNet Capable)

$369.00per unit
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

Compact industrial LTE router for cabinets, kiosks and vehicles, with Core, CAT-7, DC-power, serial M2M and Latin America models.

SKU: MAX-BR1-MINI-LTE
Model
Additional Warranty*
Plan
Connectivity Plans

Billed monthly, separately from this order, once the plan is activated. Nothing is charged for it at checkout.

Software Licences
Quantity
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Small unattended sites need a router that fits in a cabinet, takes PoE or DC, and comes in the exact form the site needs: with or without Wi-Fi, with a serial port, or for another region.

The Peplink MAX BR1 Mini carries one LTE modem with redundant nano-SIM slots, eSIM support, up to three gigabit Ethernet ports with one convertible to WAN, and 802.3at PoE input. Routing is 300 Mbps for 1 to 60 users. The standard model adds dual-band Wi-Fi 5 and GPS; the Core model removes both; the LTE-A model runs CAT-7 at 300 Mbps downlink; the DC model adds terminal-block power; the M2M model adds a 9-pin serial port; the MX model covers Latin America.

All run from 10V to 30V DC, PoE or the included adapter, rated -40 to 65 °C in a 430-gram metal chassis. The US models are certified for AT&T, T-Mobile, Verizon and FirstNet.

Product details
In the box
  • MAX BR1 Mini (HW3):
  • 2x LTE Antennas (ACW-235)
  • 2x Wi-Fi Dual Band Antennas (ACW-342)
  • 1x GPS Active Antenna (ACW-232)
  • 1x 12V 2A 4 Pin Power Supply (ACW-632)
  • MAX-BR1-MINI-LTEA-US-DC-T-PRM:
  • Comes with a DC power cable instead of the regular 4 Pin Power Supply
  • MAX BR1 Mini Core:
  • 2x LTE Antennas (ACW-342)
  • 1x 12V 2A 4pin Power Supply (ACW-632)
  • MAX BR1 Mini M2M:
  • 1x BR1 Mini M2M
  • 2x Dual Band Wi-Fi Antennas (ACW-342)
Built for
Traffic signal cabinetsWater and wastewater SCADA panelsVending and micro-market kiosksParking pay stationsRemote pump and lift stationsOil and gas wellhead monitoring
Specifications
Enclosure
Compact, Indoor Metal
WAN Interface
1x 10/100/1000M Ethernet with GPIO and ignition sensing (WAN use requires PrimeCare or Feature Pack license); max config: 1 WAN with 2 LAN, 0 WAN with 3 LAN; 1x Embedded Cellular Modem with Redundant SIM Slots
LAN Interface
2x 10/100/1000M Ethernet (one with 802.3at PoE input); 3 / 2 GE LAN configurable
Recommended Users
1–60
SIM Options
2 SIM slots, Nano-SIM (4FF); RemoteSIM: Yes (HW4+); FusionSIM: Yes (HW4+); Peplink eSIM: Yes (HW3+); BYO eSIM: Yes (HW3+)
Antenna Connectors
2x SMA Cellular Antenna Connectors, 2x RP-SMA Wi-Fi Antenna Connectors, 1x SMA GPS Antenna Connector
Power Input
AC adapter: 100V–240V input, 12V 2A output; Power Port: 10V–30V DC PoE input: 1x 802.3at PoE
Power Consumption
13W (nominal), 18W (max.)
Weight
0.95 pounds / 430 grams
Humidity
15%–95% (non-condensing)
Certifications
FCC, CE, RoHS, UL 121201 (Class I and Division 2), E-Mark (Motor Vehicle), EN 61373, EN 50155, EN 61000; Core: FCC, CE, RoHS, UL+CUL (62368-1), UL 121201 (Class I and Division 2); M2M: TAA Compliant
Warranty
1-Year Limited Warranty
Router Throughput
300Mbps
Dimensions
5.0 x 4.2 x 1.4 inches / 125.7 x 107 x 35 mm
Wi-Fi Interface
Dual (2.4GHz + 5GHz), 2x2 Wi-Fi 5; transmit power 20dBm (both bands); Multiple SSIDs: 16 (standard and M2M models); Core model: no Wi-Fi
Cellular Antenna Connectors
2x SMA Cellular Antenna Connectors
GPS Antenna Connector
Yes (standard and M2M models); Core model: no GPS
PepVPN Throughput (No Encryption)
80Mbps (SpeedFusion VPN, No Encryption)
PepVPN Throughput (256-bit AES)
60Mbps (SpeedFusion VPN, 256-bit AES)
Cellular 1 Data Rate (Downlink/Uplink)
CAT-7: 300 Mbps/150 Mbps CAT-6: 300 Mbps/50 Mbps CAT-4: 150 Mbps/50 Mbps
Number of PepVPN / SpeedFusion Peers
2 default; 5 with PrimeCare
802.1q VLANs Supported
16
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
No
Operating Temperature
-40°–149°F, -40°–65°C
Compatibility
LTE-A CAT-7 US models: AT&T, T-Mobile, Verizon, FirstNet, US Cellular LTE CAT-4 US model: AT&T, T-Mobile, Verizon Core US models: AT&T, T-Mobile, Verizon, FirstNet M2M US model: AT&T, T-Mobile, Verizon, FirstNet
Other Ports
4pin Molex Micro-Fit Connector: Yes
Serial
Standard model: No; M2M model: RS-232/RS-485 serial port (supports dual serial port Y-cables)
Recommended PPTP/L2TP/OpenVPN Users
L2TP/OpenVPN users: 3
Package Content
MAX BR1 Mini (HW3): 2x LTE Antennas (ACW-235) 2x Wi-Fi Dual Band Antennas (ACW-342) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4 Pin Power Supply (ACW-632) MAX-BR1-MINI-LTEA-US-DC-T-PRM: Comes with a DC power cable instead of the regular 4 Pin Power Supply MAX BR1 Mini Core: 2x LTE Antennas (ACW-342) 1x 12V 2A 4pin Power Supply (ACW-632) MAX BR1 Mini M2M: 1x BR1 Mini M2M 2x LTE Antennas (ACW-235) 2x Dual Band Wi-Fi Antennas (ACW-342) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4pin Power Supply (ACW-632)
