In stock · Ready to ship Peplink MAX HD4 MBX Quad 5G Cellular Router (FirstNet Capable, T-Priority)
Cellular Routers

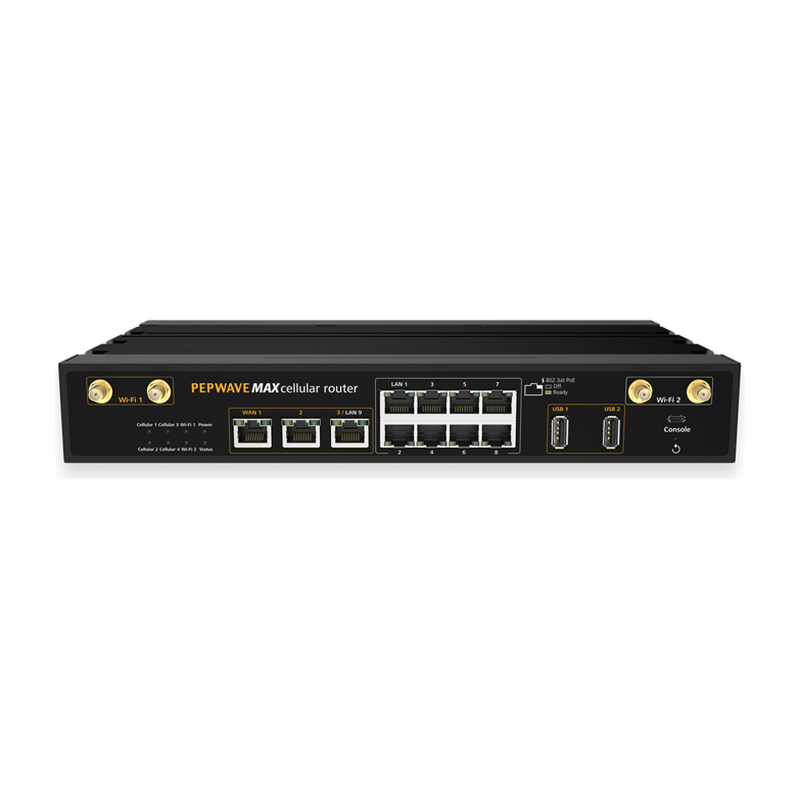

Peplink MAX HD4 MBX Quad 5G Cellular Router (FirstNet Capable, T-Priority)

Pricing on sign-up

Pricing for Peplink MAX HD4 MBX Quad 5G Cellular Router (FirstNet Capable, T-Priority) is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

Quad 5G mobile powerhouse for global deployments. Delivers massive cellular bandwidth with four 5G modems and resilient SpeedFusion bonding for mission-critical applications.

SKU: MAX-HD4-MBX-5GN-T
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Live broadcasts, incident response and large public events share one problem: thousands of people and devices crowd the same cell sites at the same moment. A single cellular link, or even two, can saturate right when the video feed or command traffic matters most.

The Peplink MAX HD4 MBX 5G carries four 5G modems and eight SIM slots, eleven gigabit Ethernet ports configurable as up to three WANs, and up to eight 802.3at PoE+ ports on dual 54V inputs. Router throughput reaches 2.5 Gbps, with dual-band Wi-Fi 5 and GPS.

SpeedFusion hot failover and bonding combine all four cellular paths into one connection, and high availability pairing keeps a backup unit ready. The metal enclosure is rated -40 to 65 °C for broadcast trucks, incident units and search and rescue staging.

Product details
In the box
  • 1x MAX HD4 MBX
  • 1x PSU 180W (ACW-630)
  • 1x QMA to SMA Adaptor (for GPS)
  • 1x GPS Antenna (ACW-232)
  • 4x Wi-Fi Dual Band Antenna (ACW-341)
  • 1 Pair of Mounting Brackets (ACW-513)
  • 3-pin Terminal Block Connector (Ignition Sense)
  • 4-pin Terminal Block Connector (Power Supply)
  • Grounding Cable
  • Rubber Foot Pad Set
  • Cellular antennas not included
Built for
Live broadcast & news trucksState DOT incident responseSearch & rescue stagingLarge public safety eventsMulti-agency field operations
Specifications
Enclosure
Indoor, Metal
WAN Interface
3x 10/100/1000M Ethernet (2 when WAN 3 is set to LAN), 4x Embedded 5G Modems with 8 SIM slots (5GD model: 5G NSA; 5GN and 5GK models: 5G NSA and SA), 2x USB WAN
LAN Interface
8x 10/100/1000M Ethernet (9 when WAN 3 is set to LAN)
Recommended Users
50-500
SIM Options
8x Mini-SIM (2FF), Peplink eSIM (HW4+, firmware 8.3.0+), BYO eSIM (HW4+, firmware 8.4.0+), RemoteSIM from SIM Injector, FusionSIM
Antenna Connectors
16x QMA Cellular Antenna Connectors
Power Input
AC adapter: 100V-240V input / 54V 3.34A output; DC: 12V-56V
Power Consumption
35W (nominal) / 55W (max., without PoE)
Weight
3.3 kg / 7.28 lb
Humidity
15%-95% (non-condensing)
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput
2.5 Gbps
Dimensions
1.7 x 11.5 x 7.0 in / 43 x 292 x 177 mm
Wi-Fi Interface
Dual-band (2.4GHz / 5GHz) Wi-Fi 5, 2x2 MIMO, 16 SSIDs, Wi-Fi WAN and/or AP
AP Controller
Yes (max. 30 APs / 50 switches)
Cellular Antenna Connectors
16x QMA
GPS Antenna Connector
Yes
Maximum Number of APs Supported
30
PepVPN Throughput (No Encryption)
600 Mbps
PepVPN Throughput (256-bit AES)
500 Mbps
Number of PepVPN / SpeedFusion Peers
3 or 20 or 50
802.1q VLANs Supported
128
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
Up to 8x 802.3at PoE+ (dual 54V inputs required for all ports)
Operating Temperature
-40 to 149 F / -40 to 65 C
Compatibility
5GN (Global) and 5GK (North America) models: AT&T, T-Mobile, Verizon, FirstNet (US carrier certifications); 5GD (Global) model: not US carrier certified. T-Priority: 5GN and 5GK models
Other Ports
2x USB
Serial
No
Recommended PPTP/L2TP/OpenVPN Users
15
Cellular WAN Interface
4x Embedded 5G Modems with 8 SIM slots
Package Content
1x MAX HD4 MBX; 1x PSU 180W (ACW-630); 1x QMA to SMA Adaptor (for GPS); 1x GPS Antenna (ACW-232); 4x Wi-Fi Dual Band Antenna (ACW-341); 1 pair of Mounting Brackets (ACW-513); 3-pin Terminal Block Connector (ignition sense); 4-pin Terminal Block Connector (power supply); Grounding cable; Rubber Foot Pad set. Cellular antennas not included.
