In stock · Ready to ship Peplink MBX Mini Dual 5G Cellular Router (FirstNet Capable)
Cellular Routers

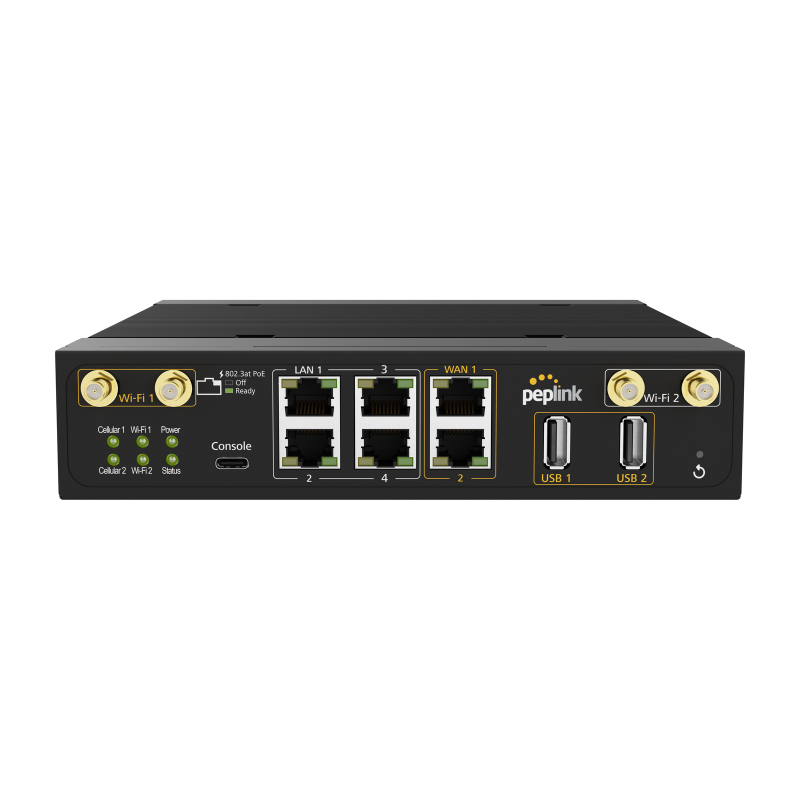

Peplink MBX Mini Dual 5G Cellular Router (FirstNet Capable)

Pricing on sign-up

Pricing for Peplink MBX Mini Dual 5G Cellular Router (FirstNet Capable) is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales
AT&T

Compact multi-cellular mobile router with dual 5G modems for the Americas. Engineered for high-bandwidth vehicle, maritime, and rapid deployment scenarios.

SKU: MAX-MBX-MINI-5GH-T
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Paratransit vans, public works trucks, harbor patrol boats and campus shuttles need dual-carrier connectivity but rarely have room for a full-size router. The equipment on board still needs power, Wi-Fi and a connection that survives dead zones on the route.

The Peplink MBX Mini 5G fits two 5G modems and four SIM slots into a compact metal chassis, with two gigabit Ethernet WANs, four gigabit LAN ports, USB WAN, dual-band Wi-Fi 5 and PoE+ output. Router throughput reaches 2.5 Gbps.

SpeedFusion bonding across both modems, GPS and a -40 to 65 °C operating range let the same unit move from a vehicle to a pop-up testing site when a fleet is redeployed.

Product details
In the box
  • 1x MBX Mini
  • 1x PSU 180W (ACW-630)
  • 1x Power Cord
  • 4x Dual-Band Wi-Fi Antennas (ACW-341)
  • 1x QMA to SMA Adapter (for GPS)
  • 1x GPS Antenna (ACW-232)
  • 1 Pair of Ear L-Mounts Kit (ACW-756) with Screw Set
  • 3-pin Terminal Block Connector (Ignition Sense)
  • 4-pin Terminal Block Connector (Power Supply)
  • Rubber Foot Pad Set
Built for
Transit & paratransit fleetsHarbor & marine patrol boatsPop-up testing & vaccination sitesMunicipal public works fleetsSchool & campus shuttles
Specifications
Enclosure
Indoor, Metal
WAN Interface
2x 10/100/1000M Ethernet, 2x Embedded 5G Modems with 4 SIM slots (5GH model: 5G NSA and SA), 2x USB WAN
LAN Interface
4x 10/100/1000M Ethernet
Recommended Users
50-500
SIM Options
4x Nano-SIM (4FF), Peplink eSIM (firmware 8.3.0+), BYO eSIM (firmware 8.4.0+), RemoteSIM from SIM Injector, FusionSIM
Antenna Connectors
8x QMA Cellular Antenna Connectors, 4x RP-SMA Wi-Fi Antenna Connectors, 1x QMA GPS Antenna Connector
Power Input
AC adapter: 100V-240V input / 54V 3.34A output; DC: 12V-56V
Power Consumption
45W (max., without PoE)
Weight
1.9 kg / 4.19 lb
Humidity
15%-95% (non-condensing)
Certifications
FCC, CE, RoHS, E-Mark, PTCRB
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput
2.5 Gbps
Dimensions
7.32 x 8.05 x 1.61 in / 186 x 204.5 x 41 mm
Wi-Fi Interface
Dual-band (2.4GHz / 5GHz) Wi-Fi 5, 2x2 MIMO, 16 SSIDs
AP Controller
Yes (max. 30 APs / 50 switches)
Edge Computing
No
Cellular Antenna Connectors
8x QMA
GPS Antenna Connector
1x QMA
Maximum Number of APs Supported
30
PepVPN Throughput (No Encryption)
600 Mbps
PepVPN Throughput (256-bit AES)
500 Mbps
Cellular 1 Data Rate (Downlink/Uplink)
5G: 4 Gbps / 700 Mbps; LTE CAT-20: 2 Gbps / 150 Mbps
Number of PepVPN / SpeedFusion Peers
Up to 20 (with license)
802.1q VLANs Supported
128
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
802.3at PoE output on the 4x LAN ports (54V DC input required)
Operating Temperature
-40 to 149 F / -40 to 65 C
Compatibility
5GH (America) model: AT&T (T-Mobile and Verizon certifications listed as pending by Peplink); 5GD (APAC, EMEA) model: no US carrier certifications
Other Ports
2x USB
Serial
No
Recommended PPTP/L2TP/OpenVPN Users
15
Cellular WAN Interface
2x Embedded 5G Modems with 4 SIM slots
Package Content
1x MBX Mini; 1x PSU 180W (ACW-630); Power cord; 4x Dual-Band Wi-Fi Antennas (ACW-341); 1x QMA to SMA Adapter (for GPS); 1x GPS Antenna (ACW-232); 1 pair of Ear L-Mounts kit (ACW-756) with screw set; 3-pin Terminal Block Connector (ignition sense); 4-pin Terminal Block Connector (power supply); Rubber Foot Pad set
