In stock · Ready to ship Peplink Mobility 42G 4x4 MIMO 5G/LTE, 2x Wi-Fi and GPS Antenna, 1 ft
Antennas

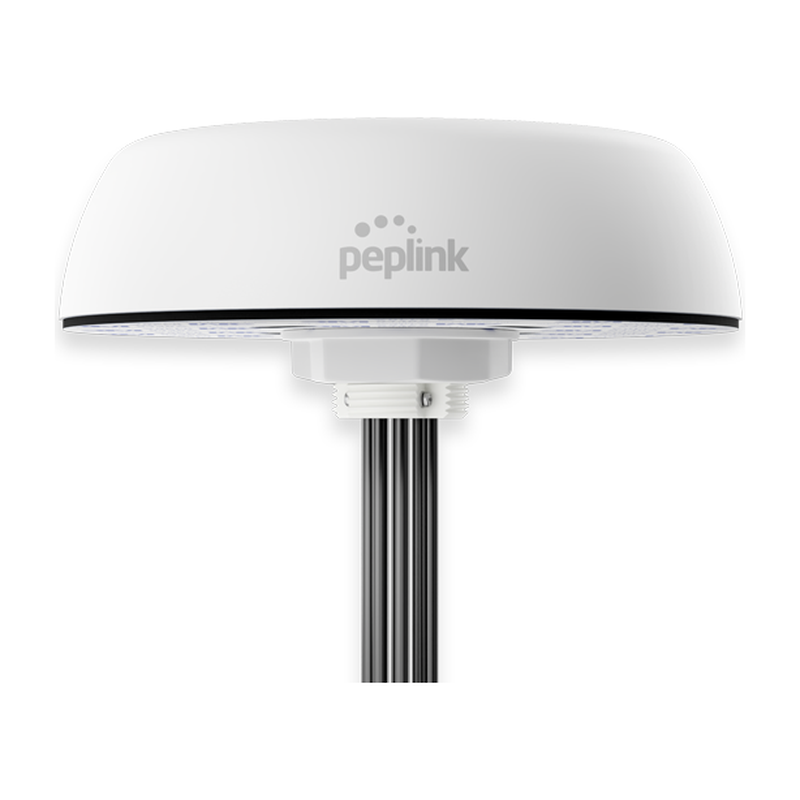

Peplink Mobility 42G 4x4 MIMO 5G/LTE, 2x Wi-Fi and GPS Antenna, 1 ft

$299.00per unit

Seven-in-one roof antenna with 4x4 MIMO 5G/LTE, 2x Wi-Fi and GPS, 600 to 6000 MHz, IP68, with 1 ft leads for direct-mount routers.

SKU: ANT-MB-42G-1
Model
Quantity
Overview

When the router sits right under the roof, long antenna leads only add loss. A one-foot lead set keeps every element close to the connector.

The Peplink Mobility 42G combines four cellular elements covering 617 to 6000 MHz with peak gain of 8.2 dBi, two dual-band Wi-Fi elements and an active GPS element, in an IP68 housing 208 mm across and 58 mm tall. The 1 ft leads end in SMA male cellular and GPS connectors and RP-SMA Wi-Fi connectors.

It is rated -40 to 80 °C, offered in white or black, with the ACW-881 mounting kit and ACW-651 and ACW-653 adapters as options and extension cables for longer runs.

Product details
In the box
  • Antenna top cover (PC)
  • Antenna bottom cover (PC)
  • Double sided 3M adhesive pad
  • Hexagon NUT (PC)
  • Label
  • Cable CFD-200 (4G/5G, Wi-Fi) x6
  • Cable RG-174 (GPS) x1
  • LTE/5G H.S. tube x4
  • Wi-Fi H.S. tube x2
  • GPS H.S. tube x1
  • LTE/5G antenna connector (SMA male) x4
  • Wi-Fi antenna connector (RP-SMA male) x2
  • GPS antenna connector (SMA male) x1
  • LTE/5G antenna connector (QMA male) x4
  • GPS antenna connector (QMA male) x1
Built for
Transit Duo Pro bus installsBR2 Pro command vehicle roofsMobile clinic and outreach vansFire apparatus cab roofsRail maintenance vehicles
Specifications
Enclosure
IP68
Certifications
RoHS, REACH, WHEE; Enclosure UL 94 HB; Cable UL 758 (VW-1); UV UL 746C (F1 long-term UV exposure); Salt Spray MIL-STD 810F/ASTM B117
Warranty
1-Year Limited Warranty
Dimensions
(Height) 2.28" / 58mm, (Diameter) 8.19" / 208mm; Package 9.09" x 8.50" x 6.14" / 231 x 216 x 156 mm
Cellular Antenna Connectors
4x LTE/5G: SMA male (-S SKUs) or QMA male (-Q SKUs); 1x GPS: SMA male or QMA male; 2x Wi-Fi: RP-SMA male
GPS Antenna Connector
GPS 1561-1602 MHz; 0.5dBi@1575MHz, 1.6dBi@1602MHz; LNA Gain 28 ±3dB; Operating Voltage 3.3V; Noise figure 1.5dB max
Operating Temperature
-40° - 176°F / -40° - 80°C
Antenna Connectors
Cellular: 4.4dBi@617–960MHz, 7.8dBi@1710–2700MHz, 7.9dBi@3400–4200MHz, 8.2dBi@5000–6000MHz; 4 elements (4x4); LTE bands B1 to B86 (except B31, B72, B73, B87, B88), 5G bands n1 to n99; VSWR < 2.5 over 95% of band; 50 Ω; Linear; 10W. Wi-Fi: 5.0dBi: 2400–2500MHz, 7.5dBi: 5000–6000MHz; 2 elements (2x2 MIMO); VSWR < 2.5; 50 Ω; Linear; 10W
Other
Cable CFD-200 (LTE/5G, Wi-Fi): 0.33 dB/m @ 900 MHz, 0.49 dB/m @ 2000 MHz, 0.55 dB/m @ 2500 MHz, 0.87 dB/m @ 5800 MHz; 0.2"/5.0mm diameter. Cable RG-174 (GPS): 3.4 dB/m @ 1000 MHz, 4.9 dB/m @ 1800 MHz; 0.1"/2.7mm diameter. Cable length: 1 ft / 0.3m for -1 SKUs (6.5 ft / 2m and 16 ft / 4.8m variants also listed). Mounting hole 1 11/16" / 43mm; Max panel thickness 19/32" / 15mm; Wind survivability 167mph, 268 km/h; Radome material UV stable PC; Storage temperature -40° - 176°F / -40° - 80°C
Package Content
Antenna top cover (PC), Antenna bottom cover (PC), Double sided 3M adhesive pad, Hexagon NUT (PC), Label, Cable CFD-200 (4G/5G, Wi-Fi) x6, Cable RG-174 (GPS) x1, LTE/5G H.S. tube x4, Wi-Fi H.S. tube x2, GPS H.S. tube x1, LTE/5G antenna connector (SMA male) x4, Wi-Fi antenna connector (RP-SMA male) x2, GPS antenna connector (SMA male) x1, LTE/5G antenna connector (QMA male) x4, GPS antenna connector (QMA male) x1
