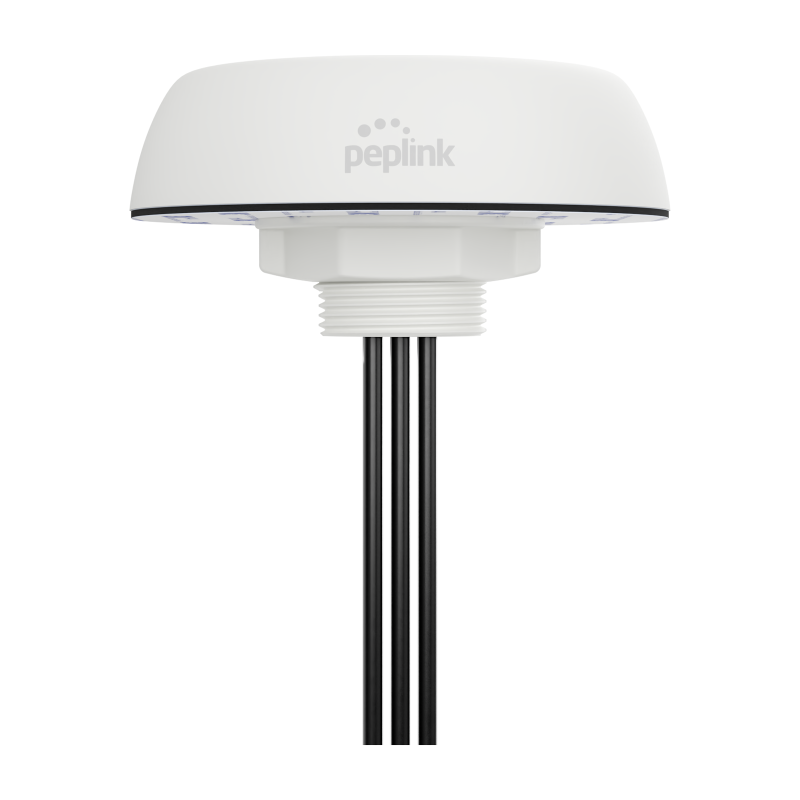

In stock · Ready to ship Peplink Mobility 20G 2x2 MIMO 5G/LTE and GPS Antenna
Antennas

Peplink Mobility 20G 2x2 MIMO 5G/LTE and GPS Antenna

$199.00per unit

Low-profile 2x2 MIMO 5G-ready cellular antenna with GPS, 600 to 6000 MHz, IP68, 6.5 ft SMA leads, in black or white.

SKU: ANT-MB-20G
Model
Quantity
Overview

A single-modem router on a vehicle or cabinet needs two cellular elements and GPS in one puck that survives weather and car washes.

The Peplink Mobility 20G combines two cellular elements covering 617 to 6000 MHz with peak gain of 6.1 dBi and an active GPS element with 28 dB LNA gain, in an IP68 housing 130 mm across and 36 mm tall. The 6.5 ft CFD-200 cellular and RG-174 GPS leads end in SMA male connectors.

It is rated -40 to 80 °C, offered in black or white, and mounts with the included hardware or the ACW-651 and ACW-652 thread adapters.

Product details
In the box
  • Antenna top cover (PC+ABS)
  • Antenna bottom cover (PC+ABS)
  • Double sided 3M adhesive pad
  • Hexagon nut (PC+ABS)
  • Label
  • 2x cable CFD-200 (4G/5G)
  • 1x cable RG-174 (GPS)
  • 2x LTE/5G H.S. tube
  • 1x GPS H.S. tube
  • 2x LTE/5G antenna connector (SMA male)
  • 1x GPS antenna connector (SMA male)
  • 2x LTE/5G antenna connector (QMA male)
  • 1x GPS antenna connector (QMA male)
Built for
BR1 Mini vehicle installsPOTS Adapter rooftop mountsUtility meter cabinet lidsDelivery van roofsTraffic cabinet tops
Specifications
Enclosure
IP68
Certifications
RoHS, REACH, WEEE; UL 94 HB (enclosure); UL 758 VW-1 (cable); UL 746C F1 (UV); MIL-STD 810F/ASTM B117 (salt spray)
Warranty
1-Year Limited Warranty
Dimensions
Height 1.42" / 36mm (spigot not included), Diameter 5.12" / 130mm; Package 8.90"x8.46"x4.29" / 226x215x109mm
Cellular Antenna Connectors
2x LTE/5G elements: SMA male or QMA male (per SKU); 1x GPS: SMA male or QMA male (per SKU)
Operating Temperature
-40° - 176°F / -40° - 80°C
Antenna Connectors
Cellular: 1.0dBi: 617–960MHz, 5.6dBi: 1710–2700MHz, 6.1dBi: 3400–4200MHz, 5.3dBi: 4900–6000MHz; 2 elements (2x2 MIMO); LTE bands B1 to B86 (except B31, B72, B73, B87, B88), 5G bands n1 to n99; VSWR < 2.5 over 85% of the band; Input impedance 50 Ω; Polarisation Linear; Feed power handling 10W
GPS Antenna Connector
GPS 1561–1602 MHz; Peak gain 0.5dBi@1575MHz, 1.6dBi@1602MHz; LNA gain 28 ±3dB; Noise figure 1.5dB max at 3.3V; Operating voltage 3.3V; Power consumption 8.5 ±2.5mA at 3.3V; VSWR < 2
Other
Cable CFD-200 (LTE/5G): Loss 0.33 dB/m @ 900MHz, 0.49 dB/m @ 2000MHz, 0.55 dB/m @ 2500MHz, 0.87 dB/m @ 5800MHz; Diameter 13/64" / 5.0mm. Cable RG-174 (GPS): Loss 3.40 dB/m @ 1000 MHz, 4.90 dB/m @ 1800 MHz; Diameter 0.1" / 2.7mm. Cable length 6.5 ft / 2m (-6 SKUs) or 1 ft / 0.3m (-1 SKUs). Mounting hole 1 11/16" / 43mm; Max panel thickness 19/32" / 15mm; Wind survivability 137mph, 220 km/h; Radome material UV stable PC; Colors Black or White; Storage temperature -40° - 176°F / -40° - 80°C
Package Content
Antenna top cover (PC+ABS), antenna bottom cover (PC+ABS), double sided 3M adhesive pad, hexagon nut (PC+ABS), label, 2x cable CFD-200 (4G/5G), 1x cable RG-174 (GPS), 2x LTE/5G H.S. tube, 1x GPS H.S. tube, 2x LTE/5G antenna connector (SMA male), 1x GPS antenna connector (SMA male), 2x LTE/5G antenna connector (QMA male), 1x GPS antenna connector (QMA male)
