In stock · Ready to ship Peplink Slim 40G 4x4 MIMO 5G/LTE and GPS Adhesive Antenna
Antennas

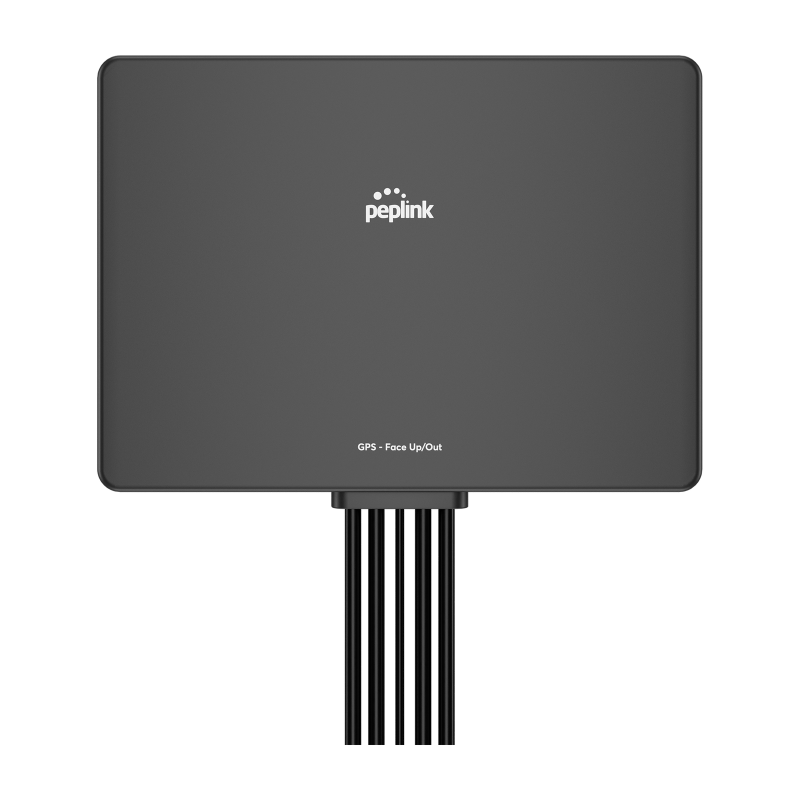

Peplink Slim 40G 4x4 MIMO 5G/LTE and GPS Adhesive Antenna

$149.00per unit

Ultra-thin adhesive-mount 4x4 MIMO 5G/LTE antenna with GPS, 600 to 6000 MHz, SMA leads at 6.5 ft, for glass and panel mounting.

SKU: ANT-SLM-40G-S-B-6
Quantity
Overview

Vehicles that cannot take a drilled roof mount, leased units, glass-roofed cabs and equipment panels, still need a four-element antenna.

The Peplink Slim 40G packs four cellular elements covering 617 to 6000 MHz with peak gain of 8.1 dBi and an active GPS element into a 180 x 130 x 15 mm adhesive-mount housing rated IP55. The 6.5 ft leads end in SMA male connectors.

It is rated -40 to 80 °C and mounts to a window or panel with the supplied adhesive.

Product details
In the box
  • Antenna Slim 40G
  • Velcro strip (hook and loop fastener) (4pcs, length 4.7' / 120mm)
Built for
Leased fleet vehiclesGlass-cab agricultural equipmentRental construction machineryInterior cabinet panel mountsTemporary event vehicles
Specifications
Enclosure
IP55
Certifications
ROHS, REACH, WEEE, UL 94 HB
Package Content
Antenna Slim 40G, Velcro strip (hook and loop fastener) (4pcs, length 4.7' / 120mm)
Warranty
1-Year Limited Warranty
Dimensions
7.09"x5.12"x0.59" / 180x130x15mm; Package 9.61"x3.15"x9.84" / 244x80x250mm
Cellular Antenna Connectors
4x LTE/5G + 1x GPS: SMA male (ANT-SLM-40G-S-B-6); Right angle SMA male (ANT-SLM-40G-S-RA-B-1)
GPS Antenna Connector
GPS 1561-1602 MHz; 0.5dBi @ 1575MHz, 1.6dBi @ 1602MHz; Operating voltage 3.3V; Noise figure 1.5dB max at 3.3V
Operating Temperature
-40° - 176°F / -40° - 80°C
Antenna Connectors
Cellular: 3.6dBi: 617–960MHz, 6.1dBi: 1710–2700MHz, 6.7dBi: 3400–4200MHz, 8.1dBi: 5000–6000MHz; 4x4 MIMO; VSWR <2.5 over 90% of the band; Input Impedance 50 Ω; Linear; 10W
Other
Cable CFD-200 (cellular): 0.33 dB/m @ 900 MHz, 0.49 dB/m @ 2000 MHz, 0.87 dB/m @ 5800 MHz. Cable RG-174 (GPS): 3.4 dB/m @ 1000 MHz, 4.9 dB/m @ 1800 MHz. Cable length 6.5ft / 2m (-6 SKU) or 1ft / 0.3m (-RA-B-1 SKU). Mounting: Window, wall (Velcro strip). Material UV stable PC. Storage temperature -40° - 80°C. Color Black
