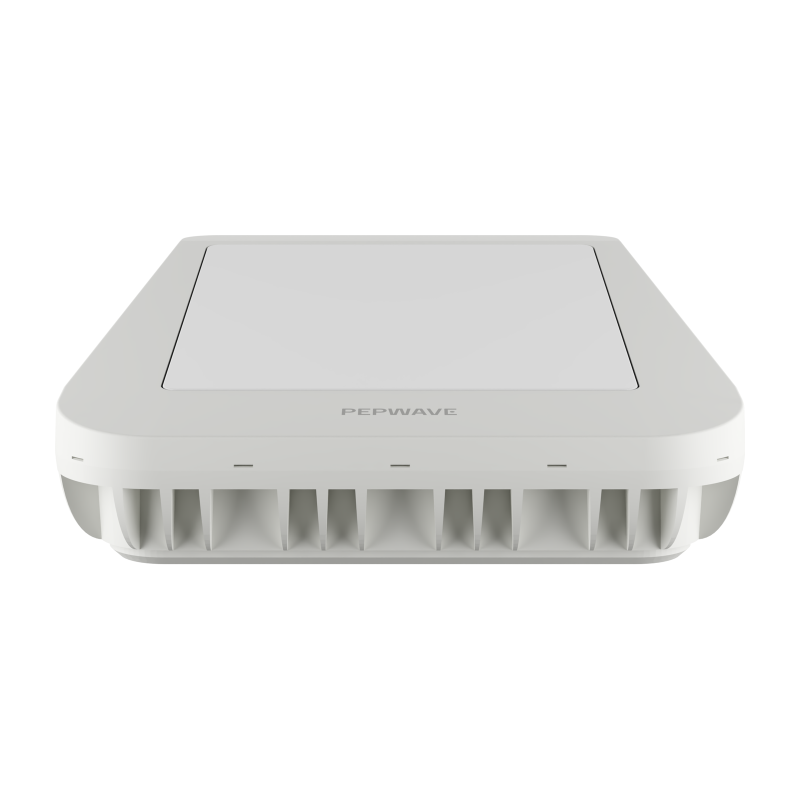

In stock · Ready to ship Peplink Antenna MAX S IP67 Enclosure for Starlink Mini and Peplink Routers
Antennas

Peplink Antenna MAX S IP67 Enclosure for Starlink Mini and Peplink Routers

$699.00per unit

Docks a Starlink Mini and a BR1 Mini, Transit Duo Pro or BR1 Pro 5G in one IP67 housing with 4x4 MIMO 5G, Wi-Fi and GPS antennas.

SKU: ANT-MAX-S
Quantity
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Sites that run Starlink Mini alongside a cellular router end up with two mounts, two power feeds and two weatherproofing jobs.

The Peplink Antenna MAX S holds a Starlink Mini and a BR1 Mini series, BR1 Pro series or Transit Duo Pro router in one IP67 housing with an aluminum base plate and UV-stable polycarbonate cover, adding four cellular elements covering 617 to 6000 MHz at up to 8.9 dBi, two dual-band Wi-Fi elements and an active GPS element. It measures 448 x 368 x 135 mm, rated -40 to 80 °C, and mounts on a surface, pole, roof rack or magnetic base.

The L-mount set, power supply and splitter mounting set, cable glands, Starlink power and Ethernet cables ship in the box.

Product details
In the box
  • 1x Antenna MAX S with L-Mount Set
  • 1x Power Supply / Splitter Mounting Set
  • Router Fixation Screws
  • 3x M25 Cable Glands
  • 1x M25 Hole Plug
  • 2x RJ45 Glands and Caps
  • 2x Hole Plugs
  • 1x DC Cable Connector
  • 1x Starlink Power Cable (900 mm)
  • 1x Ethernet Cable (900 mm)
  • 1x Double-Sided 3M Adhesive Pad
  • 1x Ethernet Cable (200 mm)
  • 1x DC Cable (100 mm)
Built for
Wildland fire base campsRural EMS stationsRemote highway maintenance yardsSearch and rescue staging vehiclesCoastal research and monitoring huts
Specifications
Enclosure
IP67; Bottom plate - Aluminium, Other parts - UV stable PC; UL 94 V-0 (1.47mm)
Certifications
UL 94 V-0 (1.47mm); UL 746C (F1 long-term UV exposure); ASTM B117 (salt spray); ROHS, REACH, WEEE; TAA Compliant
Warranty
1-Year Limited Warranty
Dimensions
17.6" / 448mm - Length, 14.5" / 368mm - Width, 5.3" / 135mm - Height; Packaged 585 x 456 x 185mm / 23.03" x 17.95" x 7.28"
Cellular Antenna Connectors
Cellular: Right-angle SMA male (4 elements); GPS: Right-angle SMA male; Wi-Fi: Right-angle RP-SMA male (2 elements)
Operating Temperature
-40° - 176°F / -40° - 80°C (storage: -40° - 176°F / -40° - 80°C)
Compatibility
BR1 Mini Series (BR1 Mini, BR1 Mini Core, BR1 Mini 5G, BR1 Mini M2M); BR1 Pro Series (BR1 Pro 5G, BR1 Pro CAT-20); Transit Duo Pro; Starlink Mini
Other
Integrated Antenna Enclosure for Peplink and Starlink (HW3). Mounting: Surface, Pole, Magnetic, Vehicle roof rack, or Custom mounts (deck, surface, and magnetic kits sold separately). Glands: 2x M25 Cable Glands, 2x RJ45 Glands
Antenna Connectors
Cellular: 617–960MHz: 5.7dBi, 1410–2700MHz: 6.8dBi, 3300–4400MHz: 8.9dBi, 5000–6000MHz: 7.3dBi; 4 elements; VSWR < 2.5 over 95% of the band; 10W; 50 Ω; Linear. Wi-Fi: 2400–2500MHz: 6.3dBi, 5000–6000MHz: 7.4dBi; 2 elements; VSWR < 3.0; 10W; 50 Ω; Linear
GPS Antenna Connector
GPS 1575–1602 MHz; 0.9dBi@1575MHz, 0.8dBi@1602MHz; VSWR < 2.0; LNA Gain 27 ±3dB; Noise Figure 2.5dB; Operating Voltage 3.3V; Power Consumption 10 ±3.0mA
Package Content
Antenna MAX S, L-mount set, Power supply/splitter mounting set, Router fixation screws, 2pcs RJ45 Gland Accessory Kit (ACW-421), 2pcs M25 cable glands, 1pc M25 hole plug, 2pcs Hole plug, 1pc Starlink power cable (35.4" / 900mm), 1pc Starlink Ethernet cable (35.4" / 900mm), 1pc Double-sided 3M adhesive pad, 1pc Ethernet cable (7.87" / 200mm), 1pc DC cable (3.93" / 100mm), 1pc DC cable-connector (ACW-425), 1pc Starlink Mini Adapter Mount (ACW-424)
