In stock · Ready to ship Peplink Splitter MAX PoE Splitter
Accessories

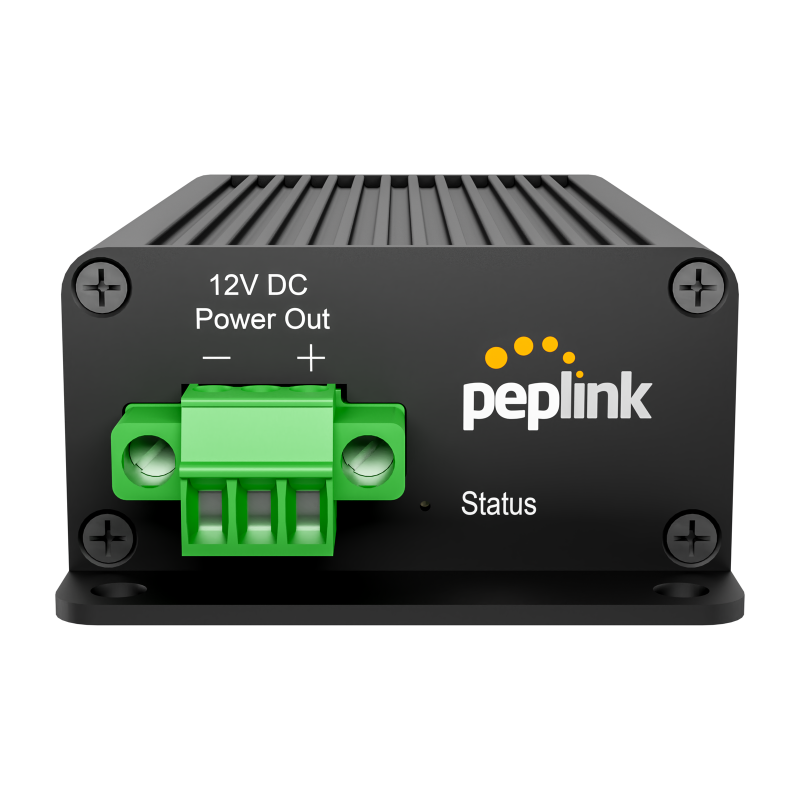

Peplink Splitter MAX PoE Splitter

$99.00per unit

Rugged PoE splitter that turns 802.3bt or af/at power into 12V DC and 2.5G data for routers without PoE input, with surge protection.

SKU: ACW-SPLT-MAX
Quantity
Overview

Some Peplink routers and adapters take DC power only, but the install has one cable run and it is Ethernet.

The Peplink Splitter MAX accepts 802.3bt PoE, compatible with af and at, and outputs 12V DC at up to 48W with 88 to 91 percent efficiency, passing data through two 2.5G Ethernet ports. Power and Ethernet are galvanically isolated, with ESD, EFT and surge protection on the PoE input, in an anodized aluminum body rated -40 to 70 °C at 142 g.

Peplink names the Transit Duo Pro, POTS Adapter and BR1 Pro 5G as compatible, along with any 12V device under 48W. A Starlink Mini version is also offered.

Product details
In the box
  • 1x Splitter MAX
  • 1x DC Cable (100 mm)
Built for
Antenna MAX rooftop installsPole-mounted router enclosuresStarlink Mini power feedsParking structure equipment roomsMarina dock pedestals
Specifications
Enclosure
Rugged Anodized Aluminum
LAN Interface
2x 10/100/1000/2500M Ethernet
Power Input
PoE IN (802.3bt, 802.3af/at compatible)
Weight
0.31 pounds / 142 grams
Certifications
FCC, IC, CE, ROHS, REACH
Package Content
1x Splitter MAX, 1x DC Cable (3.9 inches / 100 mm)
Warranty
1-Year Limited Warranty
Dimensions
4.02 x 1.97 x 1.04 inches / 102 x 50 x 26.5 mm
PoE Output
DC 12V output, Maximum Output 48W, Efficiency 88-91%
Operating Temperature
-40° – 158°F / -40° – 70°C
Compatibility
Transit Duo Pro, POTS Adapter, BR1 Pro 5G; Splitter MAX is compatible with any device that operates from 12V and consumes less than 48W
Other Ports
DC output (DC Cable 3.9 inches / 100 mm included; ACW-502 Micro-Fit to 3-Pin Terminal Block DC Power Cable optional)
Other
Power and Ethernet galvanically isolated. ESD: IEC 61000-4-2 (±8 kV contact, ±15 kV air); EFT: IEC 61000-4-4 (±2 kV for PoE IN port); Surge: ±4 kV, 1.2/50μs, Line-to-Ground for PoE IN port. Solution for Antenna MAX: it effectively isolates surges when assembled with the Peplink Antenna MAX. Used with the Antenna MAX Duo for dual-router setups.
