In stock · Ready to ship Ericsson Cradlepoint Cellular Antenna for E400 and X20, 600 MHz to 6 GHz, SMA
Accessories

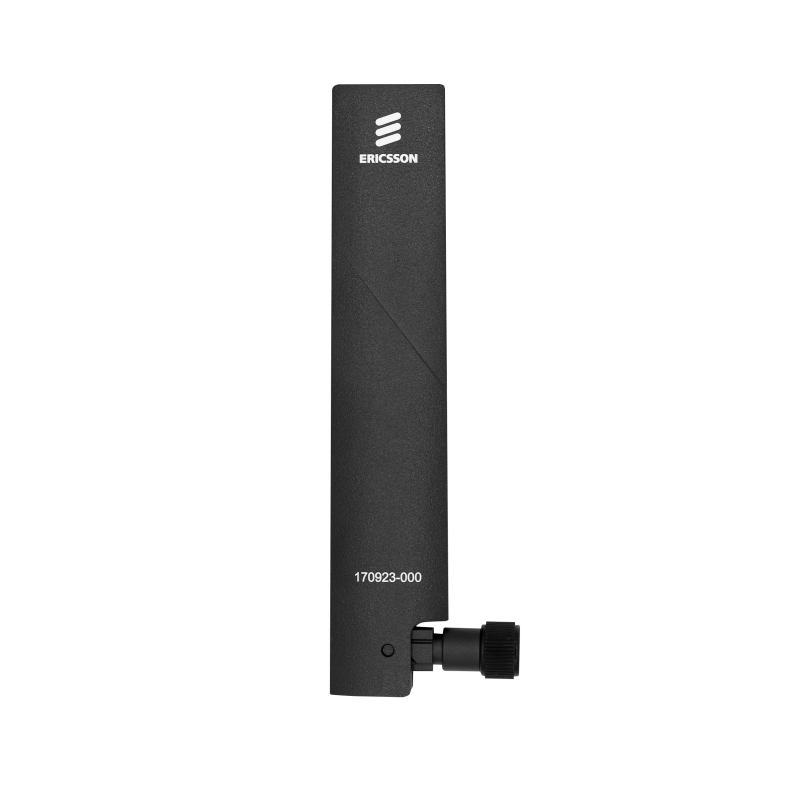

Ericsson Cradlepoint Cellular Antenna for E400 and X20, 600 MHz to 6 GHz, SMA

$17.99per unit

Replacement and spare cellular antenna for Ericsson Cradlepoint E400 and X20 units. Covers 600 MHz to 6 GHz with an SMA connector, 155 mm long, charcoal finish. Cradlepoint part 170923-000.

SKU: 170923-000
Quantity
Overview

Fleet, branch and field deployments that run Ericsson Cradlepoint E400 and X20 units need matching antennas on hand for new installs, replacements and spares. This Ericsson Cradlepoint cellular antenna (part 170923-000) is the 155 mm charcoal SMA antenna specified for the E400 and X20, covering 600 MHz to 6 GHz so it spans the low-band LTE, mid-band and sub-6 GHz 5G ranges those units operate on.

Frequency Coverage and Connector

  • 600 MHz to 6 GHz coverage in one antenna, from low-band LTE through sub-6 GHz 5G
  • SMA connector, matching the cellular ports on the E400 and X20
  • 155 mm length in a charcoal finish that matches the host unit

Compatible Ericsson Cradlepoint Units

Specified for the Ericsson Cradlepoint E400 and X20. Order the quantity that matches the number of cellular ports on the unit when replacing a full set.

Specifications

Specification Detail
Part Number 170923-000
Type Cellular antenna
Frequency Range 600 MHz to 6 GHz
Connector SMA
Length 155 mm
Color Charcoal
Used With Ericsson Cradlepoint E400, X20

Paygasus carries Cradlepoint antennas and accessories as a Cradlepoint Distributor. Add this antenna to your cart with your E400 or X20 order, or talk to a specialist about a multi-site rollout.

Product details
In the box
  • 1 x cellular antenna, 600 MHz to 6 GHz, SMA, 155 mm, charcoal
Built for
Ericsson Cradlepoint E400 deploymentsEricsson Cradlepoint X20 deploymentsReplacement and spare antenna kitsFleet, branch and field installs
