In stock · Ready to ship Peplink Mobility 40G 4x4 MIMO 5G/LTE and GPS Antenna
Antennas

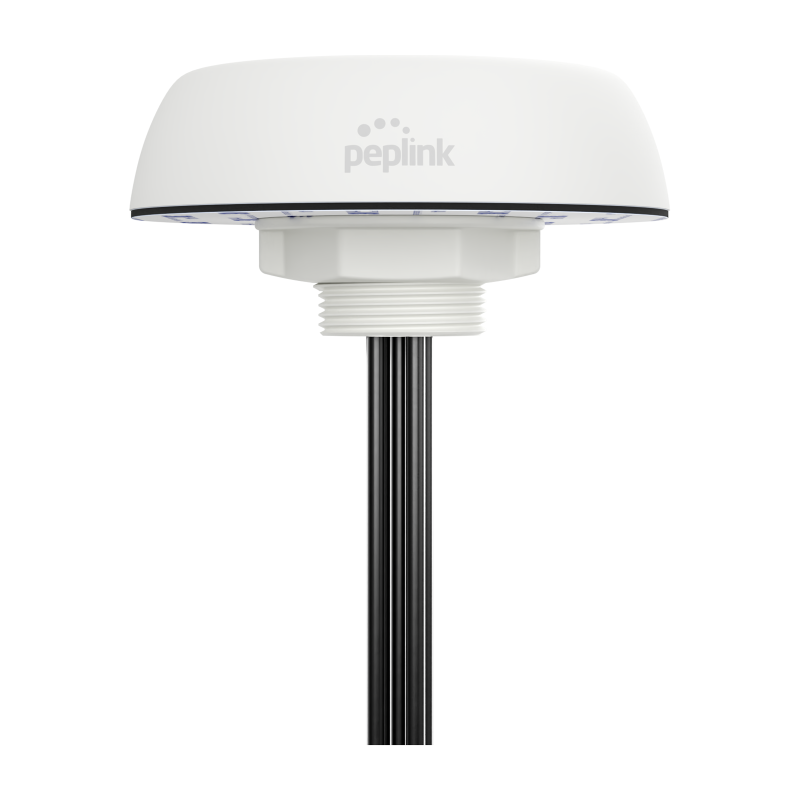

Peplink Mobility 40G 4x4 MIMO 5G/LTE and GPS Antenna

$249.00per unit

4x4 MIMO 5G-ready cellular antenna with GPS for four-connector routers, 600 to 6000 MHz, IP68, 6.5 ft SMA leads, white.

SKU: ANT-MB-40G-S-W-6
Model
Quantity
Overview

A 5G or CAT-20 router with four cellular connectors needs all four fed from one antenna to reach its rated speed.

The Peplink Mobility 40G combines four cellular elements covering 617 to 6000 MHz with peak gain of 7.0 dBi and an active GPS element with 28 dB LNA gain, in an IP68 housing 130 mm across and 36 mm tall. The 6.5 ft leads end in SMA male connectors.

It is rated -40 to 80 °C in white and mounts with the included hardware or the ACW-651 and ACW-652 thread adapters.

Product details
In the box
  • Antenna Mobility 40G
  • Mounting bracket
  • Double sided 3M adhesive pad
Built for
BR1 Pro 5G vehicle installsTransit Pro E roof mountsAmbulance and EMS unitsUtility bucket trucks5G adapter cabinet installs
Specifications
Enclosure
IP68
Certifications
RoHS, REACH & WHEE
Package Content
Antenna Mobility 40G, Mounting bracket, Double sided 3M adhesive pad
Warranty
1-Year Limited Warranty
Dimensions
1.42" / 36mm (Height), 5.12" / 130mm (Diameter); Package 8.90" x 8.46" x 4.29" / 226 x 215 x 109mm
Cellular Antenna Connectors
4x LTE/5G elements + 1x GPS: SMA male, QMA male, or N-type male (per SKU); SMA Right Angle variant available
GPS Antenna Connector
GPS 1.6dBi, LNA 28dB: 1561-1602MHz
Operating Temperature
-40° - 176°F / -40° - 80°C
Antenna Connectors
Cellular: 0.3dBi@ 617–960MHz, 5.1dBi@ 1710–2700MHz, 5.8dBi@ 3400–4200MHz, 7.0dBi@ 4900–6000MHz; 4 elements (4x4 MIMO); LTE bands B1 to B86 (except B31, B72, B73, B87, B88), 5G bands n1 to n99; VSWR < 2.5 over 85% of the band; Input impedance 50 Ω; Polarisation Linear; Feed power handling 10W
Other
Cable CFD-200 (LTE/5G): 0.33 dB/m @ 900 MHz, 0.49 dB/m @ 2000 MHz, 0.55 dB/m @ 2500 MHz, 0.87 dB/m @ 5800 MHz. Cable RG-174 (GPS): 3.4 dB/m @ 1000 MHz, 4.9 dB/m @ 1800 MHz. Cable length 6.5ft / 2m (-6 SKUs) or 1 ft / 0.3m (-1 SKUs). Mounting hole 11/16" / 43mm; Max panel thickness 19/32" / 15mm; Wind survivability 235mph (379km/h); Radome material UV stable PC+ABS; Colors Black, White; Storage temperature -40° - 176°F / -40° - 80°C
