In stock · Ready to ship Peplink Slim 22G 2x2 MIMO 5G/LTE, 2x Wi-Fi and GPS Adhesive Antenna
Antennas

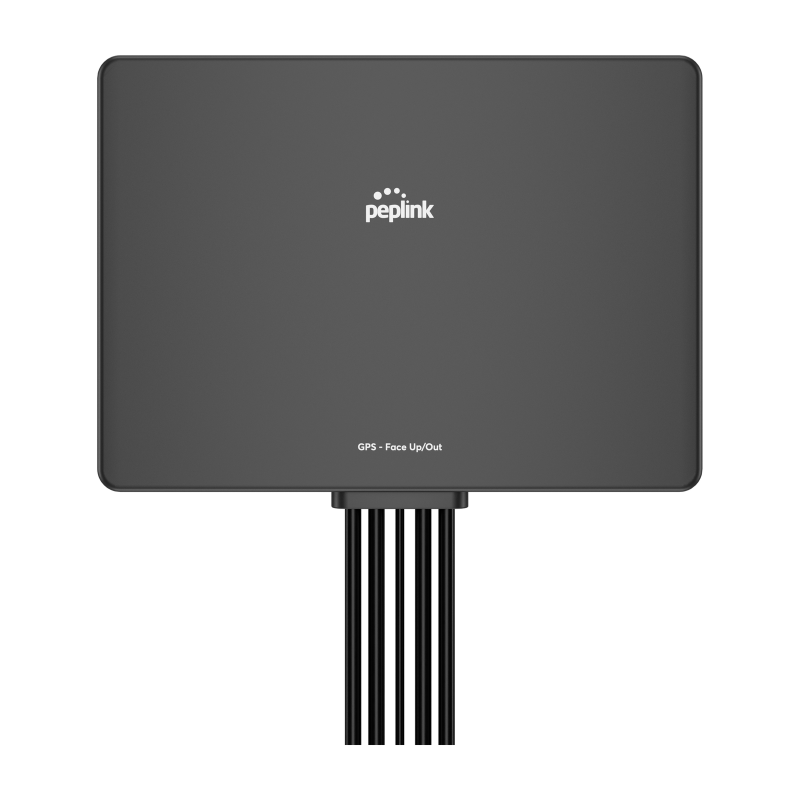

Peplink Slim 22G 2x2 MIMO 5G/LTE, 2x Wi-Fi and GPS Adhesive Antenna

$149.00per unit

Adhesive-mount five-in-one antenna with 2x2 MIMO 5G/LTE, 2x Wi-Fi and GPS, 600 to 6000 MHz, IP55, 0.59 in thick with 6.5 ft SMA leads.

SKU: ANT-SLM-22G-S-B-6
Quantity
Overview

A BR1 Mini or similar two-connector router in a vehicle needs cellular, Wi-Fi and GPS without a drilled mount.

The Peplink Slim 22G packs two cellular elements covering 617 to 6000 MHz with peak gain of 7.5 dBi, two dual-band Wi-Fi elements and an active GPS element into a 180 x 130 x 15 mm adhesive-mount housing rated IP55. The 6.5 ft leads end in SMA male cellular and GPS connectors and RP-SMA Wi-Fi connectors.

It is rated -40 to 80 °C and mounts to a window or panel with the supplied adhesive.

Product details
In the box
  • Velcro strip (hook and loop fastener) (4pcs, length 4.7' / 120mm)
Built for
BR1 Mini in leased vehiclesCode enforcement sedansMobile inspection vehiclesInterior window mounts in kiosksSmall-craft cabin installs
Specifications
Enclosure
IP55
Certifications
ROHS, REACH, WEEE, UL 94 HB, UL 758 (VW-1), UL 746C (F1 long-term UV exposure)
Package Content
Velcro strip (hook and loop fastener) (4pcs, length 4.7' / 120mm)
Warranty
1-Year Limited Warranty
Dimensions
7.09"x5.12"x0.59" / 180x130x15mm; Package 9.61"x3.15"x9.84" / 244x80x250mm
Cellular Antenna Connectors
SMA male (Cellular, GPS), RP-SMA male (Wi-Fi)
Operating Temperature
-40° - 176°F / -40° - 80°C
Antenna Connectors
Cellular: 4.1dBi: 617–960MHz, 4.3dBi: 1710–2700MHz, 6.0dBi: 3400–4200MHz, 7.5dBi: 5000–6000MHz; 2 elements; VSWR <2.5 over 90% of the band; 50 Ω; Linear; 10W. Wi-Fi: 5.5dBi: 2400–2500MHz, 5.7dBi: 5000–6000MHz; 2 elements; VSWR < 2.0
GPS Antenna Connector
GPS 1561–1602 MHz; 0.5dBi @ 1575MHz, 1.6dBi @ 1602MHz; LNA Gain 28 ±3dB; Noise figure 1.5dB max at 3.3V; Operating voltage 3.3V; Power consumption 8.5 ±2.5mA at 3.3V; VSWR < 2
Other
Cable CFD-200 (Cellular/Wi-Fi): 0.33 dB/m @ 900 MHz, 0.49 dB/m @ 2000 MHz, 0.55 dB/m @ 2500 MHz, 0.87 dB/m @ 5800 MHz; 0.2" / 5.0mm diameter. Cable RG-174 (GPS): 3.4 dB/m @ 1000 MHz, 4.9 dB/m @ 1800 MHz; 0.1" / 2.7mm diameter. Cable length 6.5ft / 2m. Mounting: Window, wall. Material UV stable PC. Color Black. Storage temperature -40° - 176°F / -40° - 80°C
