In stock · Ready to ship Peplink Antenna MAX IP67 Router Enclosure with 4x4 MIMO, Wi-Fi and GPS
Antennas

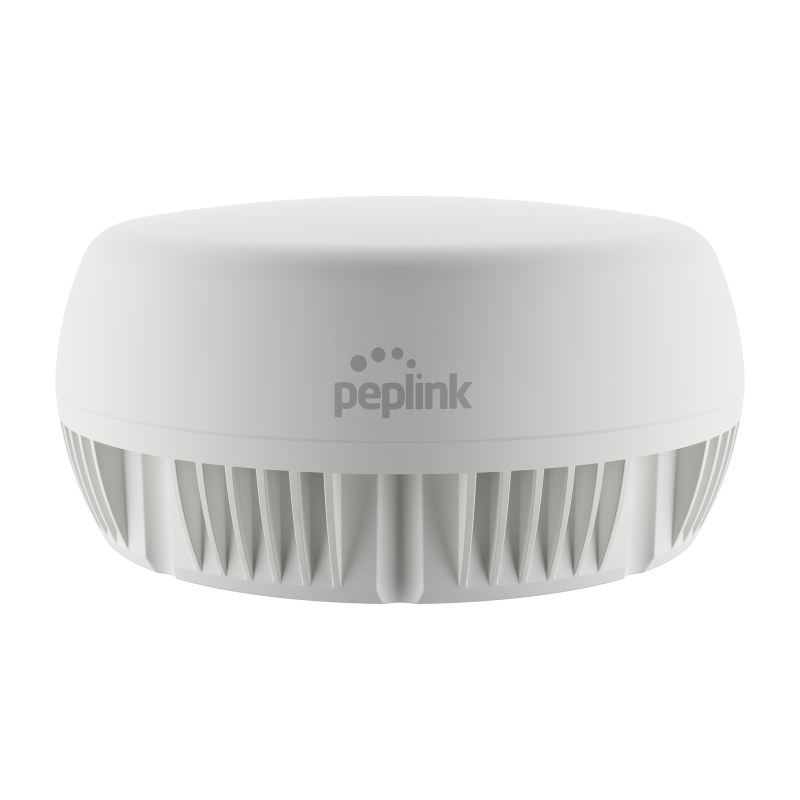

Peplink Antenna MAX IP67 Router Enclosure with 4x4 MIMO, Wi-Fi and GPS

$349.00per unit

IP67 enclosure with seven built-in antennas that turns a BR1 Mini, BR1 Pro or Transit Duo into an outdoor unit.

SKU: ANT-MAX
Quantity
Overview

Putting a router outdoors usually means an enclosure, an external antenna, a cable run and three points of water ingress.

The Peplink Antenna MAX houses the router inside a UV-stable polycarbonate dome with four cellular elements covering 617 to 6000 MHz at up to 6.6 dBi, two dual-band Wi-Fi elements at up to 7.4 dBi and an active GPS element, all connected internally. It measures 250 mm across and 120 mm tall, rated -40 to 80 °C, with an L-mount set, cable glands and an adhesive pad in the box.

Peplink lists the BR1 Mini series, Transit Duo Pro, BR1 Pro 5G and CAT-20, MAX Adapter series and AP One Rugged as compatible. Routers without PoE input need the Splitter MAX.

Product details
In the box
  • 1x Antenna MAX
  • 1x L-Mount Set
  • 1x Double-Sided 3M Adhesive Pad
  • 3x Cable Glands
  • 2x Hole Plugs
Built for
Rooftop cellular backup for branchesLight pole and pole-top mountsBoat and small vessel installsRemote gate and access controlOutdoor kiosk and EV charger canopies
Specifications
Enclosure
IP67; UV-resistant plastic enclosure (UV stable PC); Flammability UL 94 V-0 (1.47 mm)
Certifications
UL 94 V-0 (1.47 mm); UL 746C (F1 long-term UV exposure); MIL-STD 810F/ASTM B117 (salt spray); TAA Compliant
Package Content
Antenna MAX, L-Mount Set, Double sided 3M adhesive pad, 3pcs Cable Gland, 2pcs Hole Plug
Warranty
1-Year Limited Warranty
Dimensions
4.72" / 120 mm - Height, 9.84" / 250 mm - Diameter; Package 13.82" x 11.61" x 5.75" / 351x295x146mm
Cellular Antenna Connectors
Cellular: Right angle SMA male (4 elements); GPS: Right angle SMA male; Wi-Fi: Right angle RP-SMA male (2 elements)
Operating Temperature
-40° - 176°F / -40° - 80°C (storage: -40° - 176°F / -40° - 80°C)
Compatibility
BR1 Mini series (BR1 Mini, BR1 Mini Core, BR1 Mini 5G, BR1 Mini M2M); Transit Duo Pro; BR1 Pro 5G; BR1 Pro CAT-20; MAX Adapter series; POTS Adapter; 5G Adapter (requires ACW-724 ear mounts); AP One Rugged
Antenna Connectors
Cellular: 617–960MHz: 3.0dBi, 1410–2700MHz: 6.2dBi, 3400–4400MHz: 5.7dBi, 5000–6000MHz: 6.6dBi; 4 elements; VSWR < 2.5 over 95% of band; 50Ω; Linear; 10W. Wi-Fi: 2400–2500MHz: 5.4dBi, 5000–6000MHz: 7.4dBi; 2 elements; VSWR < 2.5; 50Ω; Linear; 10W
GPS Antenna Connector
GPS 1575–1602 MHz; 0.9dBi@1575MHz, 0.8dBi@1602MHz; LNA Gain 27 ±3dB; Noise Figure 2.5dB; Operating Voltage 3.3V; Power Consumption 10 ±3.0mA; VSWR < 2.0
Other
Mounting: Surface, wall, pole; Fixed-roof L-mount set included (V-bolts M8, brackets, M4 bolts). Deck mount adapters ACW-651 / ACW-653A. For certain products which do not support PoE In, a PoE Splitter is required. Ear mounts (ACW-724) are needed for the router installation (5G Adapter).
