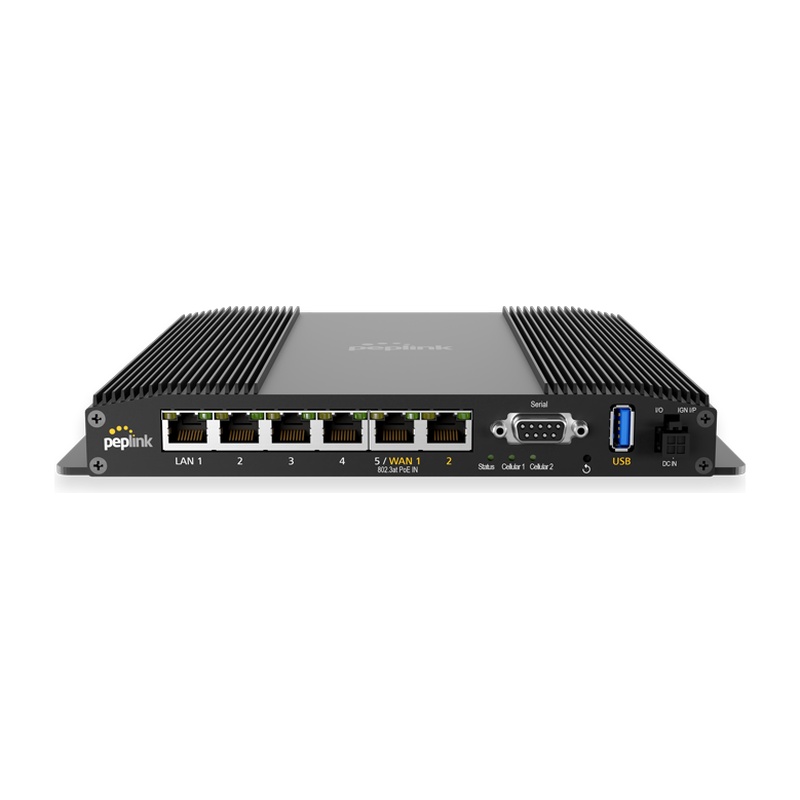

Peplink MAX BR2 Pro Dual 5G Cellular Router (FirstNet Certified, T-Priority)

$2,899.00per unit
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

Dual 5G industrial router designed for extreme reliability. Includes multiple WAN interfaces, Wi-Fi 6, and advanced SpeedFusion bandwidth bonding for unbreakable connectivity.

SKU: MAX-BR2-PRO-5GK-T-PRM
Additional Warranty*
Plan
Connectivity Plans

Billed monthly, separately from this order, once the plan is activated. Nothing is charged for it at checkout.

Software Licences
Quantity
Pairs with

Complete your build with compatible devices

0 selected · $0.00
Overview

Vehicles and remote sites move through coverage gaps that no single carrier fills. A transit bus, utility service truck or mobile health clinic that depends on one network loses its connection every time that network thins out.

The Peplink MAX BR2 Pro runs two 5G modems with four SIM slots, so two carriers can be active at once. It provides two 2.5G Ethernet WANs, four gigabit LAN ports, dual-band Wi-Fi 6 and GPS, with SpeedFusion bonding and failover across every link.

A metal enclosure rated -40 to 65 °C handles vehicle and field installs, and 8GB of internal storage runs Docker applications at pipeline and remote industrial sites.

Product details
In the box
  • 1x BR2 Pro
  • 8x LTE/5G Antennas (ACW-235)
  • 2x Dual Band Wi-Fi Antennas (ACW-341)
  • 1x GPS Antenna (ACW-232)
  • 1x 12V3A 4-Pin Power Supply (ACW-663)
Built for
Dual-carrier transit busesArmored & cash logistics vehiclesUtility service trucksMobile health clinicsPipeline & remote industrial sites
Specifications
Enclosure
Indoor, Metal
WAN Interface
2x 2.5G Ethernet (one convertible to LAN), 2x Embedded 5G Modems with 4 SIM slots, 1x USB WAN
LAN Interface
4x 10/100/1000M Ethernet (5 when a WAN port is set to LAN)
Recommended Users
1-150
SIM Options
4x Nano-SIM (4FF), Peplink eSIM (firmware 8.3.0+), BYO eSIM (firmware 8.4.0+), RemoteSIM from SIM Injector (HW2+), FusionSIM (HW2+)
Antenna Connectors
8x SMA Cellular Connectors
Power Input
AC adapter: 100V-240V input / 12V output; DC: 10V-30V; 1x 802.3at PoE input (25W)
Power Consumption
30W (max.)
Weight
1.1 kg / 2.42 lb
Humidity
15%-95% (non-condensing)
Certifications
FCC, CE, RoHS, RCM, E-Mark (Motor Vehicle), EN 61373 Shock and Vibration, EN 50155 Railway Applications, EN 61000 EMC, MIL-STD-810H Method 514.8 (TAA Compliant per cover)
Package Content
1x MAX BR2 Pro; 1x 12V 3A 4-Pin Power Supply (ACW-663); 8x LTE/5G Antennas (ACW-235); 2x Dual Band Wi-Fi Antennas (ACW-341); 1x GPS Antenna (ACW-232)
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput
1 Gbps
Dimensions
8.58 x 7.68 x 1.61 in / 218 x 195 x 29.5 mm
Wi-Fi Interface
Dual-band (2.4GHz / 5GHz) Wi-Fi 6, 2x2 MIMO, 16 SSIDs
AP Controller
Yes (max. 30 APs / 50 switches)
Edge Computing
Docker and Python applications (firmware 8.3.0+), 8GB internal storage
Cellular Antenna Connectors
8x SMA
GPS Antenna Connector
Yes
Maximum Number of APs Supported
30
PepVPN Throughput (No Encryption)
400 Mbps
PepVPN Throughput (256-bit AES)
200 Mbps
Cellular 1 Data Rate (Downlink/Uplink)
5G: 4.1 Gbps / 900 Mbps; CAT-20: 2 Gbps / 211 Mbps (maximum theoretical rates)
Number of PepVPN / SpeedFusion Peers
2 / 5 / 10 / 20
802.1q VLANs Supported
16
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
No
Operating Temperature
-40 to 149 F / -40 to 65 C
Compatibility
AT&T, T-Mobile, Verizon, FirstNet. T-Priority: 5GN and 5GK models
Other Ports
1x USB, 1x RS-232 serial
Serial
Yes (RS-232)
Recommended PPTP/L2TP/OpenVPN Users
3
Cellular WAN Interface
2x Embedded 5G Modems with 4 SIM slots
