In stock · Ready to ship Peplink MAX HD2 MBX Dual LTE-A Cellular Router (FirstNet Capable)
Cellular Routers

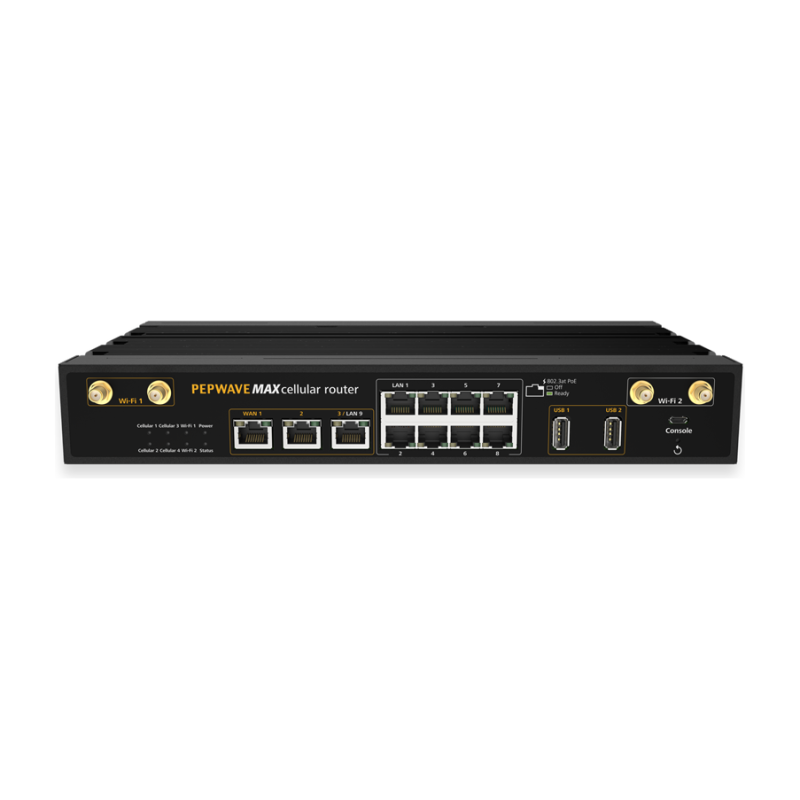

Peplink MAX HD2 MBX Dual LTE-A Cellular Router (FirstNet Capable)

Pricing on sign-up

Pricing for Peplink MAX HD2 MBX Dual LTE-A Cellular Router (FirstNet Capable) is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales
FirstNet Built with AT&T AT&T

Dual LTE-A mobile router with SpeedFusion bonding, a 9-port gigabit PoE+ switch and a swappable module for a later 5G upgrade, in CAT-12 and CAT-18 models.

SKU: MAX-HD2-MBX-LTE
Model
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Transit vehicles and mobile offices need two carriers bonded, PoE for cameras and validators, and a router that outlives one generation of modem.

The Peplink MAX HD2 MBX carries two LTE-A modems with four mini-SIM slots, three gigabit Ethernet WANs, nine gigabit LAN ports with up to eight 802.3at PoE+ outputs, dual-band Wi-Fi 5 and GPS. Routing is 2.5 Gbps with 600 Mbps of SpeedFusion for 50 to 500 users. The CAT-12 model for the Americas runs 600 Mbps downlink per modem; the CAT-18 Global model runs higher.

It runs from 12V to 56V DC or the included 54V supply, rated -40 to 65 °C in a 3.3 kg metal chassis, and the cellular module swaps for the HD2 MBX 5G Expansion Module when the fleet moves to 5G. Peplink lists the CAT-12 model as FirstNet Capable.

Product details
In the box
  • HD2 MBX (CAT-20):
  • 1x PSU 180W
  • 4x Wi-Fi Dual Band Antenna
  • 1x GPS Antenna
  • 8x LTE/5G Antennas
  • 1 Pair Mounting Brackets
  • 3pin & 4pin Terminal Block Connectors
  • Grounding cable
  • Rubber Foot Pads
Built for
Commuter rail passenger carsRegional transit authority busesMobile library and bookmobile fleetsUtility line crew trucksPort and rail yard switching vehicles
Specifications
Enclosure
Indoor, Metal
WAN Interface
3 / 2 (GE) Ethernet WAN; max config: 3 WAN with 8 LAN, 2 WAN with 9 LAN; USB WAN: Yes (2x USB); Wi-Fi WAN: Yes
LAN Interface
9x 10/100/1000M Ethernet with 802.3at PoE Outputs (8 / 9 GE LAN, configurable)
Recommended Users
50–500
SIM Options
4 SIM slots, Mini-SIM (2FF); Peplink eSIM, BYO eSIM (2 profiles), Remote SIM, FusionSIM; eSIM support Yes (HW4+, firmware 8.3.0+)
Antenna Connectors
CAT-12: 4 x SMA Cellular Antenna Connectors, CAT-20: 8 x QMA Cellular Antenna Connectors
Power Input
AC Input 100V–240V, DC Output 54V 3.34A; DC 12–56V
Power Consumption
33W nominal, 55W (w/o PoE) maximum
Weight
7.28 pounds / 3.3 kg
Humidity
15%–95% (non-condensing)
Certifications
FCC, CE, RoHS, E-Mark, PTCRB, EN61373, EN50155, EN61000
Package Content
HD2 MBX (CAT-20): 1x PSU 180W, 4x Wi-Fi Dual Band Antenna, 1x GPS Antenna, 8x LTE/5G Antennas, 1 Pair Mounting Brackets, 3pin & 4pin Terminal Block Connectors, Grounding cable, Rubber Foot Pads
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput
2.5Gbps
Dimensions
1.7 x 11.5 x 7.0 inches / 43 x 292 x 177 mm
Wi-Fi Interface
Dual (2.4GHz + 5GHz), 2x2 Wi-Fi 5; transmit power 24dBm (2.4GHz), 21dBm (5GHz); Multiple SSIDs: 16
AP Controller
30 / 50
Cellular Antenna Connectors
CAT-12: 4 x SMA Cellular Antenna Connectors, CAT-20: 8 x QMA Cellular Antenna Connectors
GPS Antenna Connector
Yes
Maximum Number of APs Supported
30 / 50 (controlled AP / Switch)
PepVPN Throughput (No Encryption)
600Mbps (SpeedFusion VPN, No Encryption)
PepVPN Throughput (256-bit AES)
500Mbps (SpeedFusion VPN, 256-bit AES)
Cellular 1 Data Rate (Downlink/Uplink)
CAT-12: 600 Mbps / 150 Mbps CAT-20: 2 Gbps / 211 Mbps
Number of PepVPN / SpeedFusion Peers
3 or 20 or 50
802.1q VLANs Supported
128
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
Up to 8x 802.3at PoE+
Operating Temperature
-40°–149°F, -40°–65°C
Compatibility
MAX-HD2-MBX-LTEA-R-T: FirstNet Capable
Features
Ignition Sensing
Other
Tech-spec PDF modem options: 2x CAT-12, 2x CAT-18, 2x CAT-18 (ESN), 2x CAT-20. US carrier certifications for HD2 MBX LTE SKUs are not stated on Peplink pages (only 'FirstNet Capable' in the region column for LTEA-R-T).
