In stock · Ready to ship Peplink MAX BR2 Dual LTE Cellular Router (FirstNet Capable)
Cellular Routers

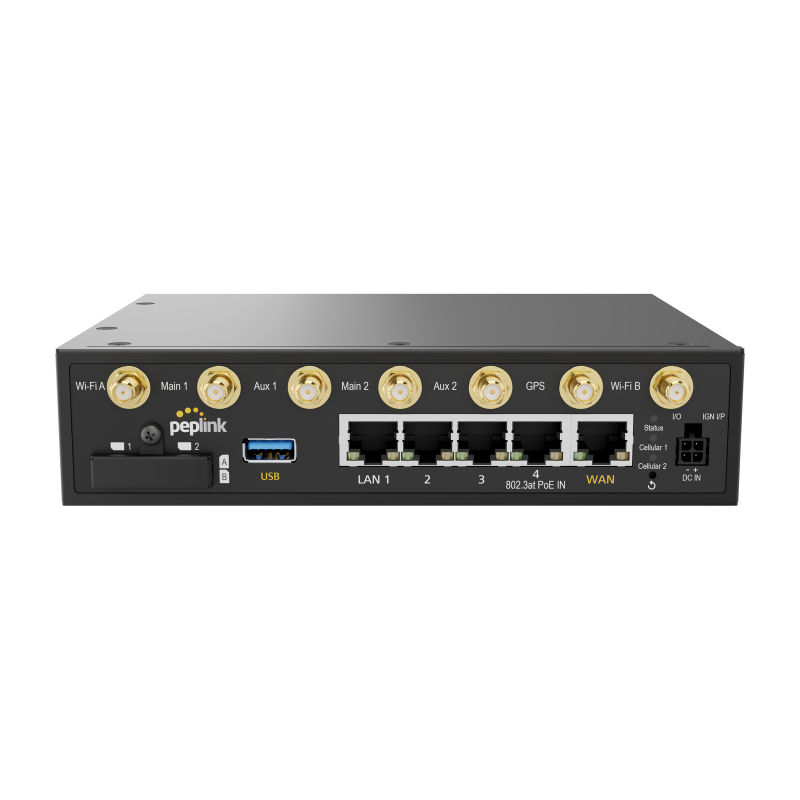

Peplink MAX BR2 Dual LTE Cellular Router (FirstNet Capable)

$599.00per unit
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

Rugged dual LTE router with eSIM, SpeedFusion bonding, GPS and PoE, DC or adapter power, in CAT-4 and CAT-7 models.

SKU: MAX-BR2-LTE
Model
Additional Warranty*
Plan
Connectivity Plans

Billed monthly, separately from this order, once the plan is activated. Nothing is charged for it at checkout.

Software Licences
Quantity
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Remote sites and vehicles that cannot depend on one carrier need two modems, GPS and power flexibility in a chassis that survives the environment.

The Peplink MAX BR2 carries two LTE modems with four nano-SIM slots, eSIM, one gigabit Ethernet WAN and four gigabit LAN ports, dual-band Wi-Fi 5 and GPS. Routing is 300 Mbps with 80 Mbps of SpeedFusion bonding for 1 to 60 users. The CAT-4 model runs 150 Mbps downlink per modem, the CAT-7 model 300 Mbps.

It runs from 12V to 30V DC, 802.3at PoE input or the included adapter, rated -40 to 65 °C in a fanless 1.1 kg metal chassis, and is certified for AT&T, T-Mobile, Verizon and FirstNet.

Product details
In the box
  • 1x MAX BR2
  • 4x LTE Antennas (ACW-237)
  • 2x Dual Band Wi-Fi Antennas (ACW-342)
  • 1x GPS Active Antenna (ACW-232)
  • 1x 12V 2A 4-Pin Power Supply
Built for
Rural cell-backhaul and repeater sitesLivestock auction and fairground officesHighway rest area facilitiesRemote weigh stationsMarina and harbor offices
Specifications
Enclosure
Indoor, Metal; Fanless design
WAN Interface
1x 10/100/1000M Ethernet WAN; max config: 1 WAN with 4 LAN; USB WAN: 1x USB
LAN Interface
4x 10/100/1000M Ethernet LAN
Recommended Users
1–60
SIM Options
4 SIM slots, Nano-SIM (4FF); Peplink eSIM, BYO eSIM (2 profiles each modem), RemoteSIM from SIM Injector, FusionSIM
Antenna Connectors
4x SMA Cellular Antenna Connectors, 2x RP-SMA Wi-Fi Antenna Connectors, 1x SMA GPS Antenna Connector
Power Input
AC adapter 100V–240V / DC 12V; DC 12–30V (terminal block / power port) PoE input: 1x 802.3at PoE
Power Consumption
8W (nominal) / 13W (max. without USB output)
Weight
2.43 pounds / 1.1 kg
Humidity
15%–95% (non-condensing)
Certifications
FCC, CE, RoHS; EN 61000 Electromagnetic Compatibility
Package Content
1x BR2 4x LTE Antennas (ACW-237) 2x Dual Band Wi-Fi Antennas (ACW-342) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4-Pin Power Supply (ACW-632)
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot failover, bandwidth bonding, smoothing: Yes
Router Throughput
300Mbps
Dimensions
6.89 x 5.12 x 1.61 inches / 175mm x 130mm x 41mm
Wi-Fi Interface
Dual (2.4GHz + 5GHz), 2x2 Wi-Fi 5; transmit power 20dBm (2.4GHz), 20dBm (5GHz); Multiple SSIDs: 16
Cellular Antenna Connectors
4x SMA Cellular Antenna Connectors
GPS Antenna Connector
Yes
PepVPN Throughput (No Encryption)
80Mbps (SpeedFusion VPN, No Encryption)
PepVPN Throughput (256-bit AES)
60Mbps (SpeedFusion VPN, 256-bit AES)
Cellular 1 Data Rate (Downlink/Uplink)
CAT-4: 150 Mbps / 50 Mbps CAT-7: 300 Mbps / 150 Mbps
Number of PepVPN / SpeedFusion Peers
2 or 5 (2 default; 5 with PrimeCare)
802.1q VLANs Supported
16
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
No
Operating Temperature
-40°–149°F / -40°–65°C
Compatibility
US Carrier Certifications (North America models): AT&T, T-Mobile, Verizon, FirstNet
Serial
No
