In stock · Ready to ship Peplink MAX HD4 MBX Quad LTE-A CAT-20 Cellular Router (FirstNet Capable)
Cellular Routers

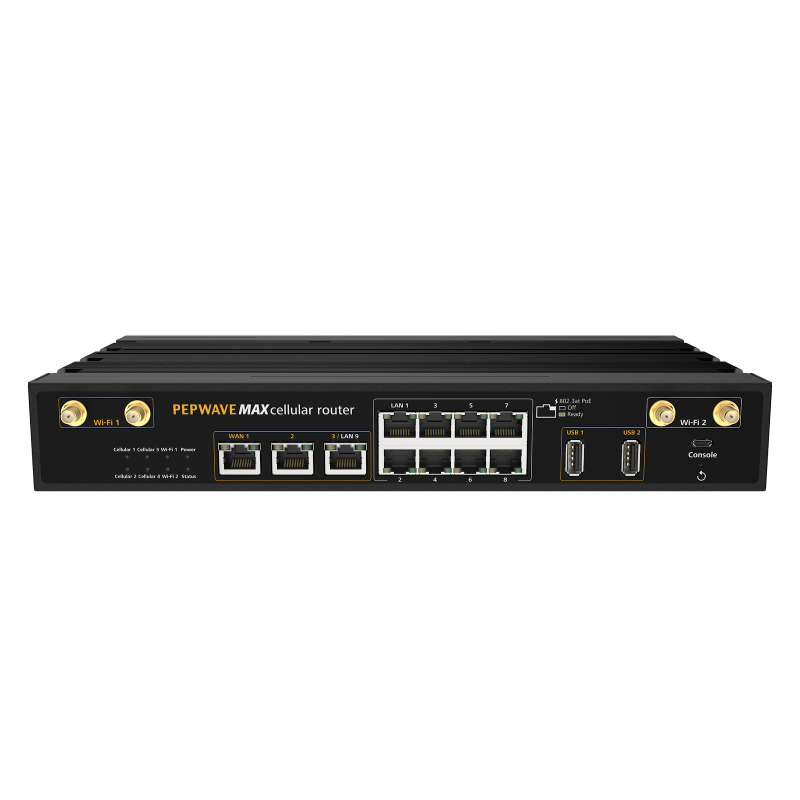

Peplink MAX HD4 MBX Quad LTE-A CAT-20 Cellular Router (FirstNet Capable)

Pricing on sign-up

Pricing for Peplink MAX HD4 MBX Quad LTE-A CAT-20 Cellular Router (FirstNet Capable) is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

Quad LTE-A CAT-20 mobile router with SpeedFusion bonding, a 9-port gigabit PoE+ switch and a swappable module for a later 5G upgrade.

SKU: MAX-HD4-MBX-GLTE-S-T
Model
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

A broadcast truck or command vehicle at a crowded scene needs bandwidth from more than one carrier at once, and power for the cameras and radios on board.

The Peplink MAX HD4 MBX carries four LTE-A CAT-20 modems with eight mini-SIM slots at up to 2 Gbps downlink each, three gigabit Ethernet WANs, nine gigabit LAN ports with up to eight 802.3at PoE+ outputs, dual-band Wi-Fi 5 and GPS. Routing is 2.5 Gbps with 600 Mbps of SpeedFusion for 50 to 500 users.

It runs from 12V to 56V DC or the included 54V supply, rated -40 to 65 °C in a 3.3 kg metal chassis. The cellular module is swappable, so the unit can move to 5G later with the HD4 MBX 5G Expansion Module. Peplink lists the HD4 MBX line on its FirstNet page.

Product details
In the box
  • HD4 MBX (CAT-12):
  • 1x PSU 180W
  • 4x Wi-Fi Dual Band Antenna
  • 1x GPS Antenna
  • 8x LTE/5G Antennas
  • 1 Pair Mounting Brackets
  • 3pin & 4pin Terminal Block Connectors
  • Grounding cable
  • Rubber Foot Pads
  • HD4 MBX (CAT-20 & 5G):
  • 1x PSU 180W
  • 1x QMA to SMA Adaptor
  • Rubber Foot Pad set
  • Cellular antennas not included
Built for
Regional broadcast news vehiclesState police mobile command postsHazmat and bomb squad response unitsEmergency medical helicopter ground supportElection and event security operations
Specifications
Enclosure
Indoor, Metal
WAN Interface
3x 10/100/1000M Ethernet WAN (WAN 3 is configured as a LAN port by default); max config: 3 WAN with 8 LAN, 2 WAN with 9 LAN; USB WAN: 2x USB
LAN Interface
9x 10/100/1000M Ethernet with 802.3at PoE Outputs (8 / 9 GE LAN, configurable)
Recommended Users
50–500
SIM Options
8 SIM slots, Mini-SIM (2FF); Mini-SIM (2FF), Peplink eSIM, BYO eSIM (2 profiles), Remote SIM, FusionSIM; RemoteSIM: Yes; FusionSIM: Yes
Antenna Connectors
CAT-12: 8 x SMA Cellular Antenna Connectors, CAT-20: 16 x QMA
Power Input
AC Input 100V–240V, DC Output 54V 3.34A; DC 12–56V
Power Consumption
35W nominal, 55W (w/o PoE) maximum
Weight
7.28 pounds / 3.3 kg
Humidity
15%–95% (non-condensing)
Certifications
FCC, CE, RoHS, E-Mark, PTCRB, EN61373, EN50155, EN61000
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput
2.5Gbps
Dimensions
1.7 x 11.5 x 7.0 inches / 43 x 292 x 177 mm
Wi-Fi Interface
Dual (2.4GHz + 5GHz), 2x2 Wi-Fi 5; transmit power 24dBm (2.4GHz), 21dBm (5GHz); Multiple SSIDs: 16
AP Controller
30 / 50
Edge Computing
Available with MBX MediaFast / MBX EC version
Cellular Antenna Connectors
CAT-12: 8 x SMA Cellular Antenna Connectors, CAT-20: 16 x QMA
GPS Antenna Connector
Yes
Maximum Number of APs Supported
30 / 50 (controlled AP / Switch)
PepVPN Throughput (No Encryption)
600Mbps (SpeedFusion VPN, No Encryption)
PepVPN Throughput (256-bit AES)
500Mbps (SpeedFusion VPN, 256-bit AES)
Cellular 1 Data Rate (Downlink/Uplink)
CAT-12: 600 Mbps / 150 Mbps CAT-20: 2 Gbps / 211 Mbps
Number of PepVPN / SpeedFusion Peers
3 or 20 or 50
802.1q VLANs Supported
128
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
Up to 8x 802.3at PoE+
Operating Temperature
-40°–149°F, -40°–65°C
Compatibility
MAX-HD4-MBX-LTEA-R-T: AT&T, US Cellular, Verizon, FirstNet MAX-HD4-MBX-GLTE-S-T: AT&T, T-Mobile, Verizon, FirstNet
Features
Ignition Sensing
Serial
No
Recommended PPTP/L2TP/OpenVPN Users
L2TP/PPTP/OpenVPN users: 15
Other
Tech-spec PDF modem options: 4x CAT-12, 4x CAT-12 (FirstNet Capable), 4x CAT-18, 4x CAT-18 (ESN), 4x CAT-20. Peplink's current ordering table shows only CAT-12 and CAT-20 LTE SKUs (plus 5G).
Package Content
HD4 MBX (CAT-12): 1x PSU 180W, 4x Wi-Fi Dual Band Antenna, 1x GPS Antenna, 8x LTE/5G Antennas, 1 Pair Mounting Brackets, 3pin & 4pin Terminal Block Connectors, Grounding cable, Rubber Foot Pads HD4 MBX (CAT-20 & 5G): 1x PSU 180W, 1x QMA to SMA Adaptor, 1x GPS Antenna, 1 Pair Mounting Brackets, 4x Wi-Fi Dual Band Antenna, 3pin & 4pin Terminal Block Connectors, Grounding cable, Rubber Foot Pad set; Cellular antennas not included.
