In stock · Ready to ship Peplink Balance 310X 5G SD-WAN Router (FirstNet Capable)
SD-WAN Routers

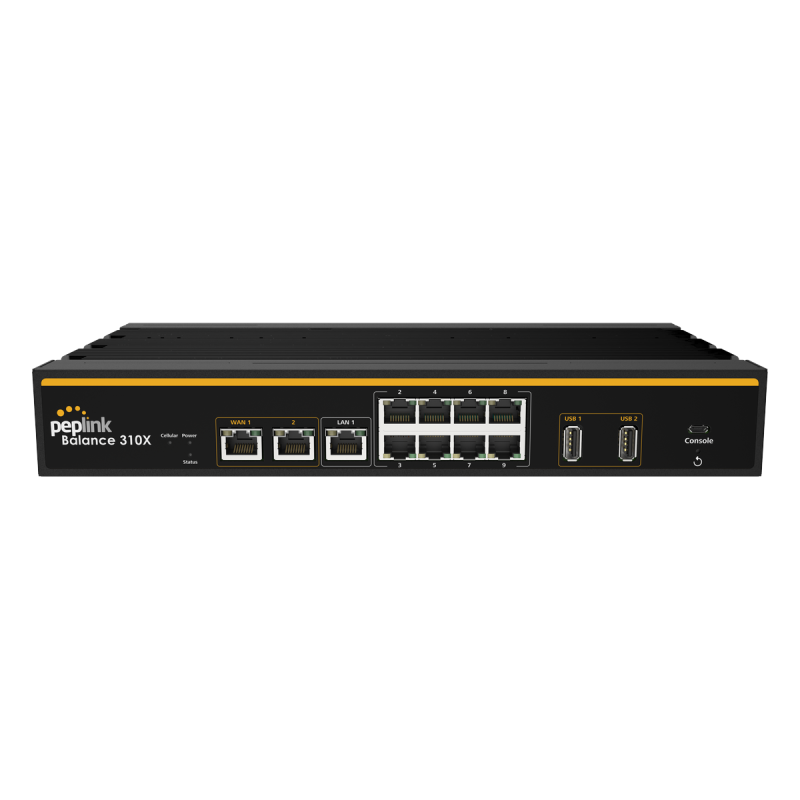

Peplink Balance 310X 5G SD-WAN Router (FirstNet Capable)

Pricing on sign-up

Pricing for Peplink Balance 310X 5G SD-WAN Router (FirstNet Capable) is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales

Peplink's FirstNet-capable 5G SD-WAN router for branch offices, clinics and public-safety sites — keeps payments, records and dispatch moving when a circuit fails.

SKU: BPL-310X-5GH-T
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Public safety sites and the commercial branches around them often end up on different hardware, different carriers and different support contracts. Emergency operations centers, municipal buildings, clinics and utility field sites all need the same thing: a connection that keeps routing when a wired provider fails.

The Peplink Balance 310X 5G carries a FirstNet Capable embedded 5G modem with redundant SIM slots, two gigabit Ethernet WANs, two USB ports and nine gigabit LAN ports. Router throughput reaches 2.5 Gbps for 50 to 500 users, with SpeedFusion available for up to 30 peers by license.

A 12V to 30V DC power input and a -40 to 65 °C operating range let it run in field cabinets and construction offices as well as the server room, so one platform can cover the agency and its commercial sites.

Product details
In the box
  • 1x Balance 310X 5G
  • 1x PSU 24V 2.5A (ACW-647)
  • 4x LTE/5G Antennas (ACW-235)
  • 1x GPS Antenna (ACW-232)
  • 1 Pair of Mounting Brackets (ACW-513)
  • 1x Rubber Foot Pad Set
  • 1x Grounding Cable
Built for
Retail & restaurantClinics & urgent careUtility & energy field sitesConstruction officesMunicipal buildingsEmergency operations centersCommand posts
Specifications
Enclosure
Indoor, Metal, 1U rack-mount
WAN Interface
1x Embedded 5G Modem with Redundant SIM Slots, 2x 10/100/1000M Ethernet, 2x USB 2.0 Interface
LAN Interface
9x 10/100/1000M Ethernet
Recommended Users
50-500
SIM Options
2x Mini-SIM (2FF), Peplink eSIM (HW3+), BYO eSIM (HW3+), RemoteSIM from SIM Injector, FusionSIM
Antenna Connectors
4x SMA Cellular Antenna Connectors, 1x SMA GPS Antenna Connector
Power Input
AC adapter: 24V 2.5A (ACW-647); DC: 12V-30V
Power Consumption
30W (max.)
Weight
7.28 lb / 3.3 kg
Humidity
15% - 95% (non-condensing)
Certifications
FCC, CE, RoHS
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput
2.5 Gbps
Dimensions
1.7 x 11.5 x 7.0 in / 43 x 292 x 177 mm
Wi-Fi Interface
None (no Wi-Fi)
AP Controller
Yes (max. 50 controlled APs / switches)
Edge Computing
No
Maximum Number of APs Supported
50
PepVPN Throughput (No Encryption)
600 Mbps
PepVPN Throughput (256-bit AES)
500 Mbps
Cellular 1 Data Rate (Downlink/Uplink)
5G: 3.4 Gbps / 900 Mbps; LTE CAT-20: 1.6 Gbps / 200 Mbps
Number of PepVPN / SpeedFusion Peers
3 or 30 or 50
802.1q VLANs Supported
1024
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
40
PoE Output
No
Operating Temperature
-40 to 149 F / -40 to 65 C
Compatibility
FirstNet Ready
Other Ports
2x USB
Serial
No
Recommended PPTP/L2TP/OpenVPN Users
50
Cellular WAN Interface
1x Embedded 5G Modem with Redundant SIM Slots
