In stock · Ready to ship Peplink Balance 580 Multi-WAN Router
SD-WAN Routers

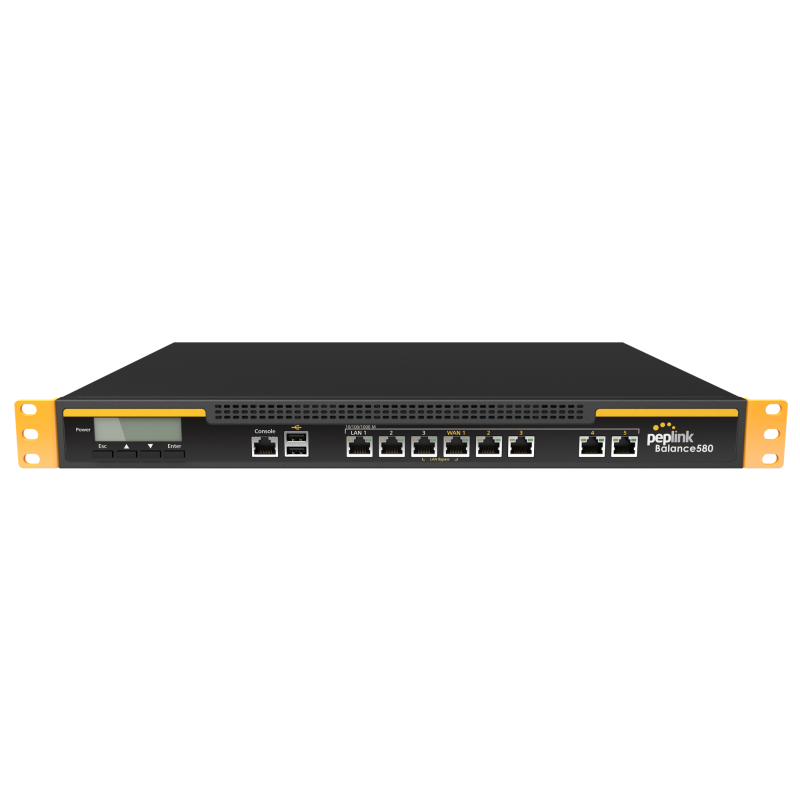

Peplink Balance 580 Multi-WAN Router

End of life

Peplink has replaced the Peplink Balance 580 Multi-WAN Router with the Peplink Balance 580X Modular SD-WAN Router.

We supply the Balance 580 while stock lasts and support existing installs.

View the Peplink Balance 580X Modular SD-WAN Router → Talk to sales

1U rackmount multi-WAN router with five gigabit WAN ports, SpeedFusion bonding and Drop-In Mode for 300 to 1,000 users.

SKU: BPL-580
Additional Warranty*
Plan
Software Licences
Overview

Mid-sized sites that pay for several wired circuits, a fiber line, a cable line and a backup, rarely use them together. Traffic sits on one, the others idle until something fails, and the switch to backup drops sessions.

The Peplink Balance 580 takes up to five gigabit Ethernet WANs plus a USB WAN and puts them behind one 1.5 Gbps router with three gigabit LAN ports. SpeedFusion bonds and fails over between the lines, and Drop-In Mode lets it sit in front of an existing firewall without re-addressing the network.

It ships as a 1U rackmount metal chassis on 100 to 240V AC, rated 0 to 40 °C, with EssentialCare covering InControl management, firmware and replacement.

Product details
In the box
  • 1x Balance 580
  • 1x Power Cord (ACW-614)
  • 1 Pair of Mounting Brackets (ACW-382)
Built for
Regional hospital administration wingsCounty courthouse annexesMid-sized law and accounting firmsCommunity bank headquartersSchool district central offices
Specifications
Enclosure
Indoor, Metal; 1U rack-mount
WAN Interface
5 (GE) Ethernet WAN; USB WAN: Yes (1x USB); SFP: No; max config 5 WAN with 3 LAN
LAN Interface
3 (GE) Ethernet LAN
Recommended Users
300–1000
Power Input
AC 100–240V
Power Consumption
50W (nominal) / 150W (max)
Weight
8.8 pounds / 4 kg
Certifications
FCC, CE, RoHS
Package Content
1x Balance 580 1x Power Cord (ACW-614) 1 Pair of Mounting Brackets (ACW-382)
Warranty
1-Year Limited Warranty
SpeedFusion Features
SpeedFusion Hot Failover: Yes; Smoothing: Yes; Virtual WAN: Yes (requires license)
Router Throughput
1.5Gbps
Dimensions
16.8 x 12 x 1.73 inches / 426 x 305 x 44 mm
Wi-Fi Interface
No Wi-Fi AP / Wi-Fi WAN
AP Controller
100 (max. controlled APs/switches); Switch Controller enabled
Maximum Number of APs Supported
100 (max. controlled APs/switches); Switch Controller enabled
PepVPN Throughput (No Encryption)
200Mbps
PepVPN Throughput (256-bit AES)
200Mbps
Number of PepVPN / SpeedFusion Peers
50 or 100
802.1q VLANs Supported
1024 (802.1q VLANs Supported)
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
100 (OpenVPN site-to-site: 5; GRE: 5)
Operating Temperature
32°–104 °F, 0°–40°C
Serial
No
Recommended PPTP/L2TP/OpenVPN Users
100 (PPTP/L2TP/OpenVPN users)
