In stock · Ready to ship Peplink Balance 310 Fiber 5G SD-WAN Router (FirstNet Capable)
SD-WAN Routers

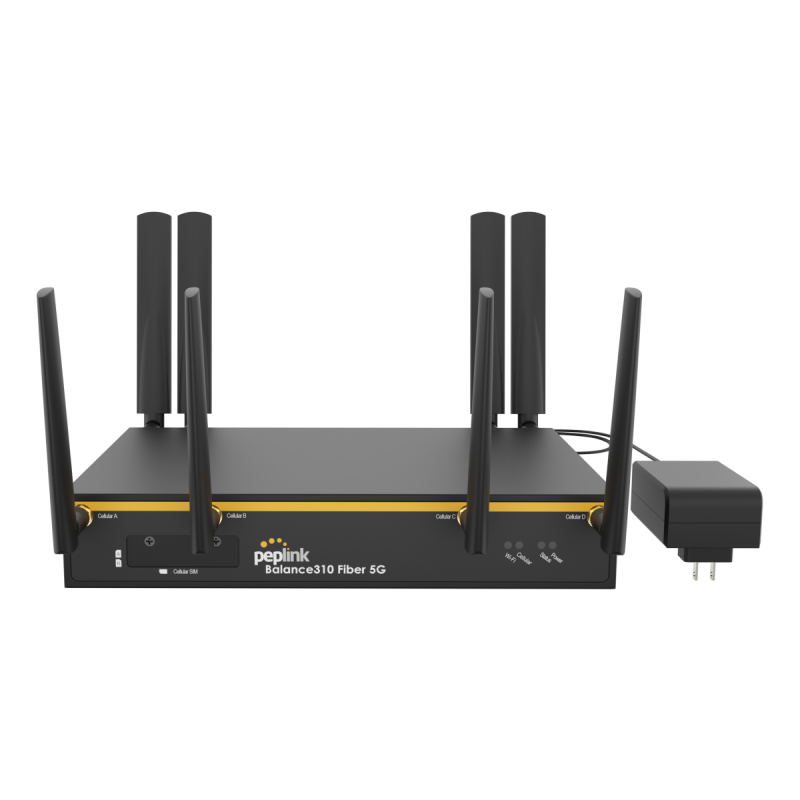

Peplink Balance 310 Fiber 5G SD-WAN Router (FirstNet Capable)

Pricing on sign-up

Pricing for Peplink Balance 310 Fiber 5G SD-WAN Router (FirstNet Capable) is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

Fiber-first branch router with 5G standing by, for sites that cannot wait on a dig to be repaired.

SKU: BPL-310-FBR-5GH-T-PRM
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Fiber gives a campus or county complex the fastest bandwidth it can buy, and also the slowest to restore. When a construction crew cuts the line, repair can take days, and every building behind that fiber goes dark with it.

The Peplink Balance 310 Fiber 5G takes the fiber hand-off directly into an SFP WAN port, adds a gigabit Ethernet WAN and a USB WAN, and keeps an embedded 5G modem with redundant SIM slots ready as a live path. The LAN side provides five gigabit ports, a second SFP port and a dual-band Wi-Fi 5 access point, with 1 Gbps router throughput for 50 to 500 users.

Hot Failover, smoothing and bandwidth bonding run across fiber and 5G together, so sessions carry over to cellular when the fiber fails. It is built for indoor telecom rooms and rated 0 to 40 °C.

Product details
In the box
  • Balance 310 Fiber 5G
  • 1x 12V 5A PSU
  • 1x Power Cord (ACW-614)
  • 4x Wi-Fi Dual Band Antennas (ACW-341)
  • 4x LTE/5G Antennas (ACW-235)
  • Rubber Foot Pad set
Built for
Fiber-served corporate campusesStadium & arena concoursesUniversity administrative buildingsCounty government complexesManufacturing plant offices
Specifications
Enclosure
Indoor, Metal
WAN Interface
1x 10/100/1000M Ethernet, 1x USB Interface, 1x SFP, 1x 5G Embedded Cellular Modem with Redundant SIM Slots
LAN Interface
5x 10/100/1000M Ethernet, 1x SFP
Recommended Users
50–500
SIM Options
Nano-SIM (4FF), Peplink eSIM, BYO eSIM (2 profiles, firmware 8.4.0+), Remote SIM from SIM Injector, FusionSIM
Antenna Connectors
4x SMA Cellular, 4x RP-SMA Wi-Fi
Power Input
12V DC Connector
Power Consumption
17W (nominal), 40W (max.)
Weight
3.6 lb / 1.65 kg
Humidity
10%-85% (non-condensing)
Certifications
FCC, CE, RoHS (TAA Compliant per cover)
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput
1 Gbps
Dimensions
9.9 x 7.1 x 2.0 in / 252 x 180 x 50 mm
Wi-Fi Interface
Wi-Fi 5 Access Point, 2x2:2 Simultaneous Dual-Band
AP Controller
Yes (max. 30 APs / 50 switches)
Maximum Number of APs Supported
30
PepVPN Throughput (No Encryption)
600 Mbps (PepVPN)
PepVPN Throughput (256-bit AES)
500 Mbps
Cellular 1 Data Rate (Downlink/Uplink)
5G: 3.4 Gbps / 900 Mbps; LTE CAT-20: 1.6 Gbps / 200 Mbps
Number of PepVPN / SpeedFusion Peers
2 / 30 (30 requires PrimeCare, complimentary first year)
802.1q VLANs Supported
128
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
No
Operating Temperature
32 to 104 F / 0 to 40 C
Other Ports
1x USB
Serial
No
Recommended PPTP/L2TP/OpenVPN Users
15
Cellular WAN Interface
1x Embedded 5G Modem with Redundant SIM Slots
