In stock · Ready to ship SDX Pro
SD-WAN Routers

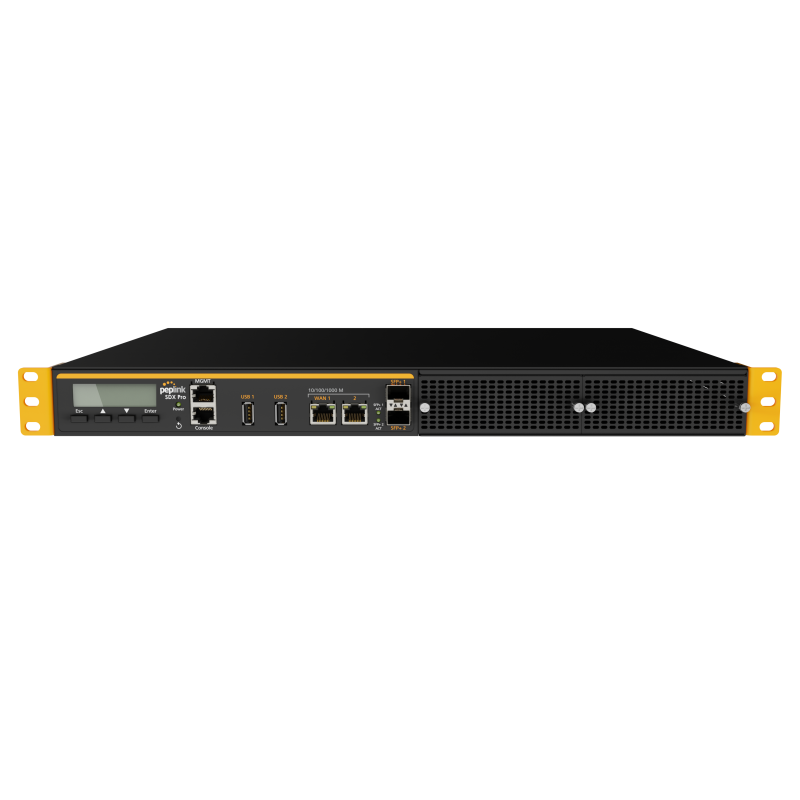

SDX Pro

Pricing on sign-up

Pricing for SDX Pro is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales

High-performance modular edge router featuring dual FlexModule slots. Delivers versatile interface configurations and advanced routing capacity for complex enterprise networks.

SKU: BPL-SDX-PRO-M2

Features and Benefits

Every device is certified and ships on rails Paygasus operates directly — PayFac and registered ISO with Fiserv, full liability submitter with JPMorgan Chase. The hardware and the uplink, from one operator.

Product details
In the box
  • Balance SDX Pro
  • SDX Pro Base Chassis
  • 1U 19" Rack-mount Chassis (ACW-752)
  • L-mount Set (ACW-750)
  • 2x Power Cord (ACW-614)
  • Rubber Foot Pad set
Built for
Resilient connectivityMission-critical uptimeSecure transactions
Specifications
WAN Interface
2x 10G SFP+ Ports, 2x GE Ports (configured as LAN by default, changeable in Web Admin), 2x USB 2.0 Ports for Secure OOBM, 2x FlexModules (Optional)
Recommended Users
500-2000
SIM Options
Mini-SIM (2FF), Peplink eSIM, BYO eSIM (2 profiles, firmware 8.4.0+), RemoteSIM from SIM Injector, FusionSIM (requires FlexModule Plus cellular module)
Power Input
AC Input 100V - 240V (2x redundant power inputs)
Power Consumption
140W System (main chassis; optional module adds 20W), 420W PoE+ Power Budget
Humidity
5%-90% (non-condensing)
Certifications
FCC, IC, CE (TAA Compliant per cover)
Warranty
1-Year Limited Warranty
Router Throughput
24 Gbps
Dimensions
17.2 x 13.3 x 1.7 in / 438 x 340 x 44 mm (1U rack-mount)
Maximum Number of APs Supported
2000
PepVPN Throughput (No Encryption)
1 Gbps (by using 10G WAN fiber)
PepVPN Throughput (256-bit AES)
600 Mbps (by using 10G WAN fiber)
Number of PepVPN / SpeedFusion Peers
800
802.1q VLANs Supported
1024
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
500
Weight (No Modules)
15.9 lb / 7.2 kg
Operating Temperature
32 to 104 F / 0 to 40 C
