In stock · Ready to ship SDX
SD-WAN Routers

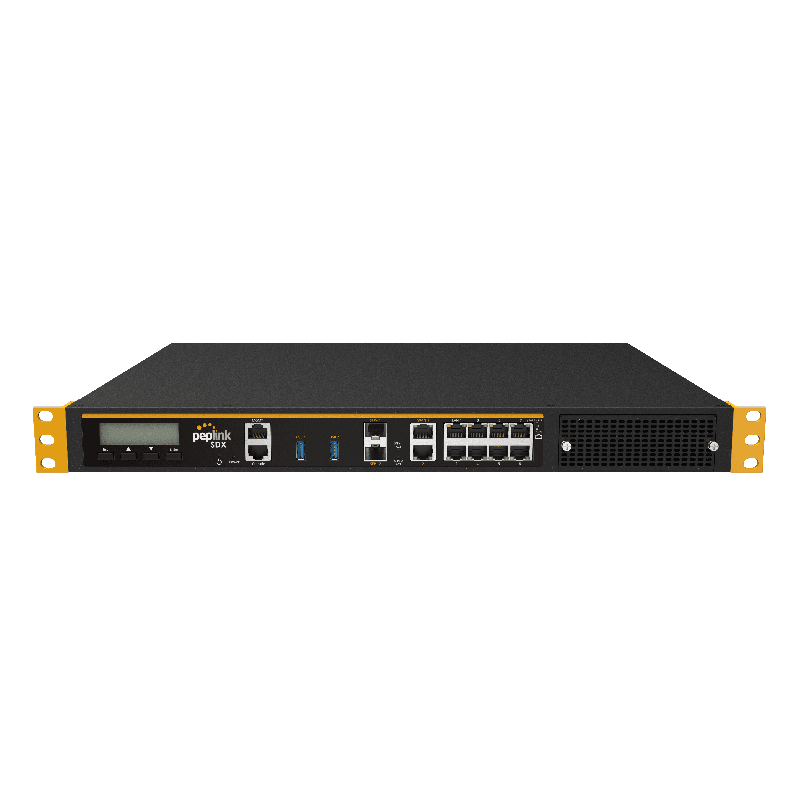

SDX

Pricing on sign-up

Pricing for SDX is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales

Enterprise-grade SD-WAN edge router supporting FlexModule expansion. Allows for scalable throughput and highly customizable WAN/LAN interface deployments.

SKU: BPL-SDX

Features and Benefits

Every device is certified and ships on rails Paygasus operates directly — PayFac and registered ISO with Fiserv, full liability submitter with JPMorgan Chase. The hardware and the uplink, from one operator.

Product details
In the box
  • Balance SDX
  • SDX Base Chassis
  • 1U 19" Rack-mount Chassis (ACW-752)
  • L-mount Set (ACW-748)
  • 1x Power Cord (ACW-614)
  • Rubber Foot Pad set
Built for
Resilient connectivityMission-critical uptimeSecure transactions
Specifications
WAN Interface
2x 10G SFP+ Ports, 2x GE Ports, 2x USB 3.0 Ports
LAN Interface
8x GE Ports with PoE+ Output
Recommended Users
500-2000
SIM Options
Mini-SIM (2FF), Peplink eSIM, BYO eSIM (2 profiles), RemoteSIM from SIM Injector, FusionSIM (requires FlexModule Plus cellular module; RemoteSIM/FusionSIM need firmware 8.4.0+ and HW v3+)
Power Input
AC Input 100V - 240V
Power Consumption
80W System (main chassis; optional module adds 20W), 330W PoE+ Power Budget
Humidity
5%-90% (non-condensing)
Certifications
FCC, IC, CE (TAA Compliant per cover)
Warranty
1-Year Limited Warranty
Router Throughput
12 Gbps
Dimensions
17.2 x 13.3 x 1.7 in / 438 x 340 x 44 mm (1U rack-mount)
Maximum Number of APs Supported
250
PepVPN Throughput (No Encryption)
1 Gbps
PepVPN Throughput (256-bit AES)
600 Mbps
Number of PepVPN / SpeedFusion Peers
300
802.1q VLANs Supported
1024
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
200
PoE Output
8x 802.3at PoE+ Output
Weight (No Modules)
11.7 lb / 5.3 kg
Operating Temperature
32 to 104 F / 0 to 40 C
Recommended PPTP/L2TP/OpenVPN Users
200
