In stock · Ready to ship Balance 310X CAT 20
SD-WAN Routers

Balance 310X CAT 20

Pricing on sign-up

Pricing for Balance 310X CAT 20 is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales

Peplink's global Balance 310X — FirstNet Ready, CAT-20 LTE, and a single part number for estates that span more than one country.

SKU: BPL-310X-GLTE-S-T
Overview

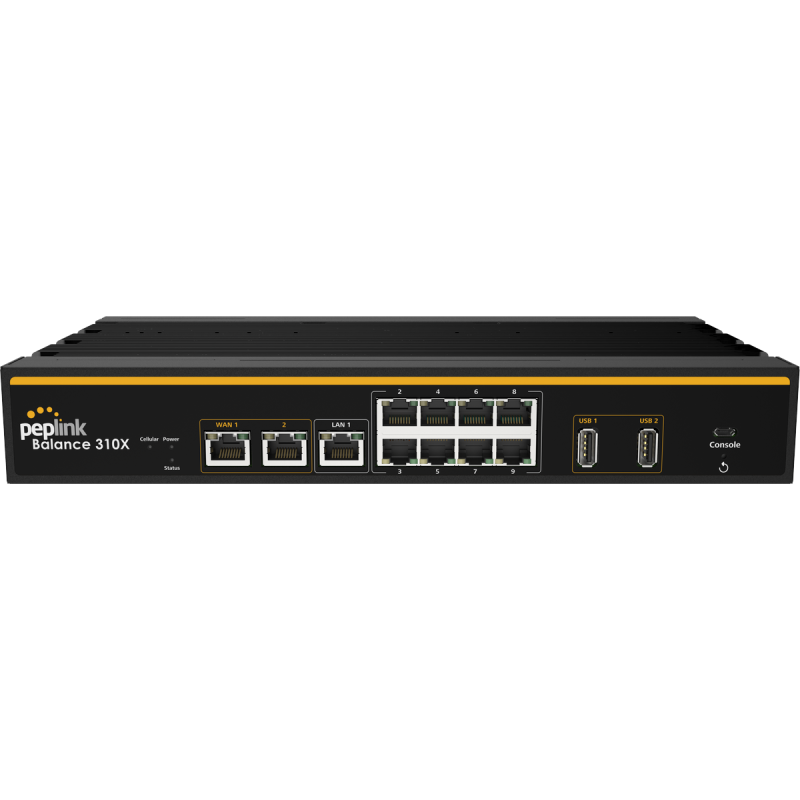

The Peplink Balance 310X CAT 20 (BPL-310X-GLTE-S-T) is the global build of the Balance 310X, and the variant Peplink itself prints as FirstNet Ready in its ordering guide. The metalwork is identical to the CAT 12; the radio inside is not. It is specified for sites that cannot be pinned to one country's band plan, and for the ones where a wired outage is expected to be invisible to the people working through it.

That suits estates that cross borders and carriers — a retailer opening in three countries on one hardware standard, a logistics operator whose depots sit well outside good fibre coverage, an incident post that has to work wherever it gets parked. One part number covers all of them, which matters more than it sounds once you are holding spares for a fleet rather than a building.

Paygasus supplies it with the data plan and warranty attached to the same order, so a site arrives ready to provision. Talk to our team if you need it sized across more than one region.

Product details
In the box
  • 1x Balance 310X
  • 1x PSU 24V 2.5A (ACW-647)
  • 4x LTE Antennas (ACW-234)
  • 1x GPS Antenna (ACW-232)
  • 1x Ear L-Mount Kit (ACW-513)
  • 1x Rubber Foot Pad Set
  • 1x Grounding Cable
Built for
Multi-site retailDistribution & logisticsGlobal branch officesEmergency operations centersHigh-throughput failover
Specifications
WAN Interface
1x Embedded LTEA-PRO Modem with Redundant SIM Slots, 2x 10/100/1000M Ethernet, 2x USB 2.0 Interface
LAN Interface
9x 10/100/1000M Ethernet
Recommended Users
50-500
SIM Options
Redundant SIM Slots (embedded modem)
Antenna Connectors
4x SMA Cellular Antenna Connectors, 1x SMA GPS Antenna Connector
Power Input
Power Din DC: 12V - 30V
Power Consumption
30W (max.)
Weight
7.28 lb / 3.3 kg
Humidity
15% - 95% (non-condensing)
Certifications
FCC, CE, RoHS, EN 55032, CISPR 32
Warranty
1-Year Limited Warranty
Router Throughput
2.5 Gbps
Dimensions
1.7 x 11.5 x 7.0 in / 43 x 292 x 177 mm
PepVPN Throughput (No Encryption)
600 Mbps
PepVPN Throughput (256-bit AES)
500 Mbps
Cellular 1 Data Rate (Downlink/Uplink)
CAT-20: 2 Gbps / 211 Mbps
Number of PepVPN / SpeedFusion Peers
2 / 30 (per datasheet: 2/30^, PrimeCare required)
Operating Temperature
-40 to 149 F / -40 to 65 C
Compatibility
FirstNet Ready
