Dual 2.5G WAN branch router with four 10G LAN ports, one PoE+ port and 4 Gbps of routing for sites that outgrew gigabit.

SKU: BPL-310-PRM
Overview

A branch office, clinic network closet or campus building often runs two wired providers and a switch stack that has crept past gigabit. The router in between becomes the bottleneck, and adding a cellular backup means another box.

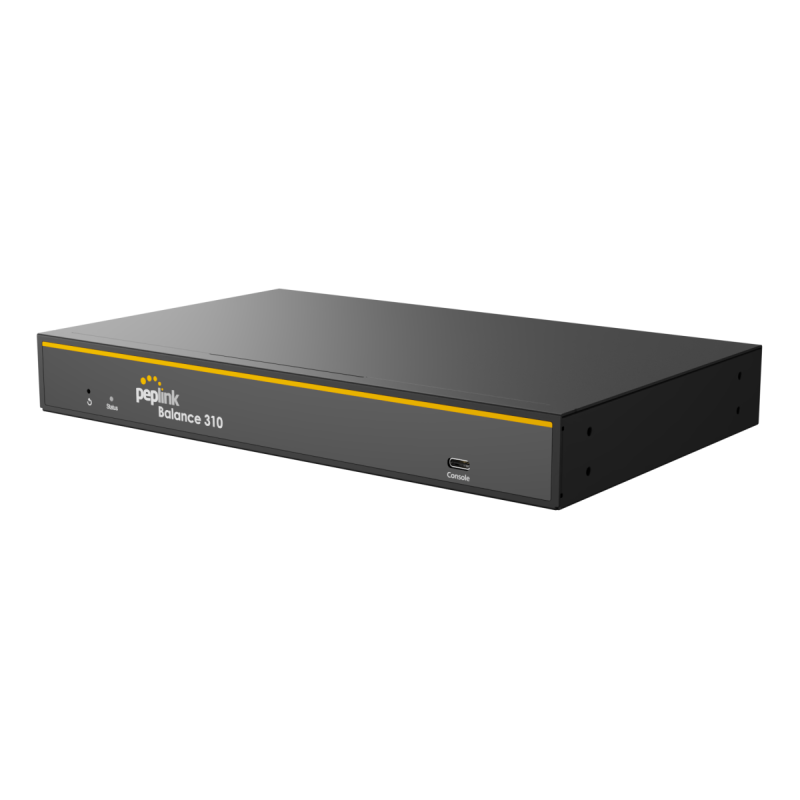

The Peplink Balance 310 carries two 2.5G Ethernet WANs, one of which doubles as a LAN port with 802.3at PoE+ output, and four 10G LAN ports that step down to gigabit or 2.5G as needed. Router throughput reaches 4 Gbps for 50 to 500 users, with 1 Gbps of SpeedFusion capacity for bonding and failover across both lines.

The chassis is fanless indoor metal with 8GB of storage for Docker applications, powered by the included 54V supply or 12V to 56V DC, and rated 0 to 40 °C. Ignition sensing support and TAA compliance cover vehicle and public-sector deployments.

Product details
In the box
  • 1x Balance 310
  • 1x 54V 1.2A Power Supply
  • 4x Rubber Feet
Built for
Two-provider branch officesOutpatient imaging centersCommunity college buildingsCredit union operations centersEngineering and design studios
Specifications
Enclosure
Indoor, Metal; Fanless design; Ignition sensing support; TAA compliant
WAN Interface
2x 2.5G Multi-Gig Ethernet WAN (1x 2.5GE WAN/LAN Port with 802.3at PoE+ Output); configurations: 2 WAN with 4 LAN, 1 WAN with 5 LAN; USB WAN: No; SFP: No
LAN Interface
4x 10GE LAN Ports (backward compatible with FE/GE/2.5G/5G)
Recommended Users
50-500
SIM Options
Nano-SIM (4FF); Peplink eSIM; BYO eSIM (2 profiles); RemoteSIM from SIM Injector; FusionSIM
Antenna Connectors
6x LTE/5G antennas (ACW-235)
Power Input
AC Adapter: AC Input 100V - 240V / DC Output 54V; DC 12V - 56V via 4-pin connector; included 54V 1.2A Power Supply
Power Consumption
32W (nominal) / 39W (max. without PoE output)
Weight
2.89 pounds / 1.31 kg
Humidity
10% to 95% (non-condensing)
Certifications
FCC, CE, RoHS
Package Content
1x Balance 310, 1x 54V 1.2A Power Supply, Rubber Foot Pad Set
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding, SpeedFusion Connect, Relay Mode (Server)
Router Throughput
4Gbps
Dimensions
10.2 x 6.3 x 1.34 inches / 260 x 160 x 34 mm
AP Controller
30 / 50 (max. controlled APs/switches; 50 requires licensing); Switch controller: Yes; Synergy Mode controller: Yes
Edge Computing
Docker (8GB Internal Storage)
Cellular Antenna Connectors
6x SMA Cellular Antenna Connectors
GPS Antenna Connector
No
Maximum Number of APs Supported
30 / 50 (max. controlled APs/switches; 50 requires licensing); Switch controller: Yes; Synergy Mode controller: Yes
PepVPN Throughput (No Encryption)
1Gbps
PepVPN Throughput (256-bit AES)
1Gbps
Cellular 1 Data Rate (Downlink/Uplink)
5G - 4 Gbps / 700 Mbps; LTE CAT-20 - 2 Gbps / 150 Mbps
Number of PepVPN / SpeedFusion Peers
2 / 10 / 20 / 50
802.1q VLANs Supported
128 (802.1q VLANs Supported); Port-based VLAN: Yes; Inter-VLAN routing: Yes; Load Balancing Algorithms: 8
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5 (OpenVPN site-to-site: 5; GRE: 5)
PoE Output
1x 802.3at 2.5GE WAN. A DC input voltage of 50V – 56V is required to enable PoE output. PoE budget 30W
Operating Temperature
32°– 104°F / 0°– 40°C
Serial
Console Port: 4-Pin Micro-Fit Connector with GPIO and Ignition Sensing
Recommended PPTP/L2TP/OpenVPN Users
15 (PPTP/L2TP/OpenVPN users)
Other
No FlexModule Mini slot, cellular modem or SIM slot is stated by Peplink for BPL-310-PRM (compare table: 'Number of Cellular Modem: No', 'SIM Slots: No').
