In stock · Ready to ship Peplink Balance 5000 EC Enterprise Router and Aggregation Hub

SD-WAN Routers

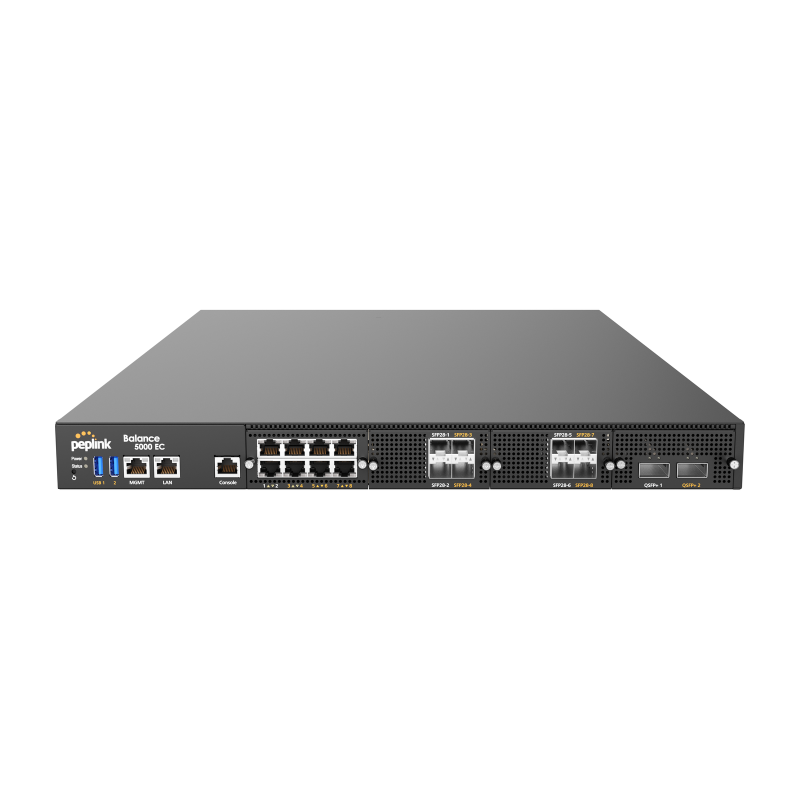

Peplink Balance 5000 EC Enterprise Router and Aggregation Hub

Pricing on sign-up

Pricing for Peplink Balance 5000 EC Enterprise Router and Aggregation Hub is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Already a customer? Sign in

Enterprise aggregation router with up to 110 Gbps throughput, 25G and 100G fiber ports, dual 1TB SSDs and 4,000 VPN peers.

SKU: BPL-5000-EC

Model

Overview

A headquarters or data center that terminates hundreds of branch VPNs, aggregates multiple carrier circuits and runs edge workloads needs a hub that will not be the ceiling.

The Peplink Balance 5000 EC delivers up to 70 Gbps on the 40G model and 110 Gbps on the 100G model, with 2.5G copper WANs, 25G SFP28 ports and a 40G QSFP+ or 100G QSFP28 port. It supports 20,000 or more users and 4,000 SpeedFusion peers, with 30 Gbps of SpeedFusion throughput and two 1TB SSDs for Docker, Python and KVM workloads.

The 1U chassis carries dual hot-swappable power supplies, LAN bypass and rack rails in the box, and is rated 0 to 40 °C for the data center.

Product details

In the box

1x Balance 5000 EC
2x Power Cords
1x Ethernet Cable
1x Rack Mount Rail
1x Short Ear Rack Mount Kit with Screws

Built for

State agency data centersUniversity network coresRegional transit control centersHospital system headquartersCarrier-neutral aggregation sites

Specifications

Enclosure: Indoor, Metal, 1U Rack-mount
WAN Interface: 40G: 2x USB WAN, 6x 2.5G WAN, 4x 25G SFP28 WAN, 1x 40G QSFP+ WAN; max config 8 WAN with 1 LAN 100G: 2x USB WAN, 6x 2.5G WAN, 2x 25G SFP28 WAN, 1x 100G QSFP28 WAN; max config 8 WAN with 1 LAN
LAN Interface: 40G: 3x 2.5G LAN, 4x 25G SFP28 LAN, 1x 40G QSFP+ LAN 100G: 3x 2.5G LAN, 2x 25G SFP28 LAN, 1x 100G QSFP28 LAN
Recommended Users: 10000–20000+
Power Input: Universal Input 100V–240V AC; 2x Dual Hot-Swappable Power Supplies
Power Consumption: 40G: 196W (nominal), 596W (max.) 100G: 203W (nominal), 595W (max.)
Weight: 52.8 pounds / 24 kg
Humidity: 10% to 90% (non-condensing)
Certifications: FCC, CE, RoHS
Package Content: 40G: 1x Balance 5000 EC (40G), 2x Power Cords, 1x Ethernet cable, 1x Rack Mount Rails, 1x Short Ear Rack Mount Kit with screws 100G: 1x Balance 5000 EC (100G), 2x Power Cords, 1x Ethernet cable, 1x Rack Mount Rails, 1x Short Ear Rack Mount Kit with screws
Warranty: 1-Year Limited Warranty
SpeedFusion Features: Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput: 40G: 70Gbps 100G: 110Gbps
Dimensions: 17.2 x 25.6 x 1.73 inches / 438 x 650 x 44 mm
AP Controller: 2000 (max. controlled APs/switches)
Edge Computing: Yes; 2x 1TB SSD internal storage; external USB storage supported
Maximum Number of APs Supported: 2000 (max. controlled APs/switches)
PepVPN Throughput (No Encryption): 30Gbps
PepVPN Throughput (256-bit AES): 30Gbps
Number of PepVPN / SpeedFusion Peers: 4000
802.1q VLANs Supported: 1024
Drop-In Mode: Yes
High Availability: Yes
Number of IPsec Tunnels: 1000 (OpenVPN site-to-site: 5; GRE: 5)
Operating Temperature: 32°– 104° F / 0°– 40° C
Other Ports: 1x Management port, 1x Console port (both models); LAN Bypass: Yes; LACP (802.3ad) NIC Bonding: Yes
Serial: 1x Console port
Recommended PPTP/L2TP/OpenVPN Users: 1000 (PPTP/L2TP/OpenVPN users); Remote User Access: RADIUS/LDAP
