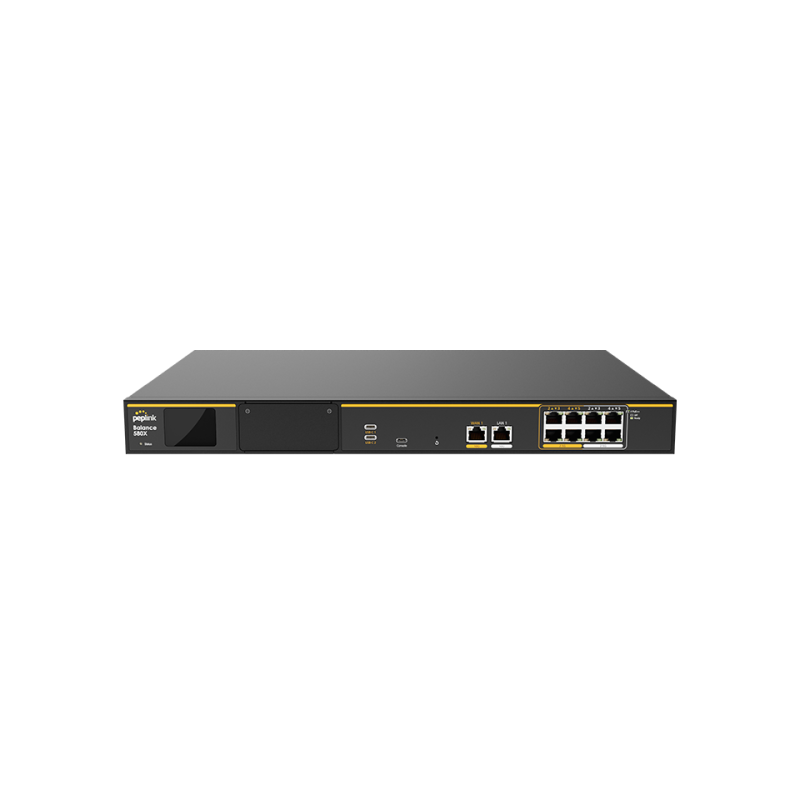

Peplink Balance 580X Modular SD-WAN Router

Pricing on sign-up

Pricing for Peplink Balance 580X Modular SD-WAN Router is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Already a customer? Sign in

Modular 1U SD-WAN router with 10G WAN and LAN, eight 2.5G PoE++ ports and a FlexModule Mini slot for adding 5G or LTE.

SKU: BPL-580X-PRM

Overview

Sites that power cameras, access points and phones from the switch, and want cellular as a real WAN rather than a bolt-on, usually end up with three or four boxes in the rack.

The Peplink Balance 580X puts a 10G WAN, a 10G LAN, four 2.5G WAN/LAN ports and four 2.5G LAN ports in one 1U chassis, with 802.3bt PoE++ output on the 2.5G ports and a 720W PoE budget. A FlexModule Mini slot takes a 5G or LTE modem, bringing cellular into the same SpeedFusion bonding and failover as the wired lines.

Docker runs on 8GB of internal storage, power is universal 100 to 240V AC, and the unit is rated 0 to 40 °C for the server room. Peplink publishes two generations of specs for this model; the current datasheet lists 8 Gbps routing and 1 Gbps SpeedFusion.

Product details

In the box

1x Balance 580X
1x Power Cord (ACW-614)
Rubber Foot Pad Set
1x Ear Rack Mount Kit with screws

Built for

Corporate campus core sitesConvention center operationsCasino and gaming floorsDistribution hub officesCounty emergency management offices

Specifications

Enclosure: Indoor, Metal; 1U Rack-mount
WAN Interface: 1x 10G Multi-Gig Ethernet WAN; 4x 2.5G Multi-Gig Ethernet WAN/LAN Port with 802.3bt PoE++ Output (configurable); 2x USB-C Interface (USB WAN); 1x FlexModule Mini Slot
LAN Interface: 4x 2.5GE LAN Port with 802.3bt PoE++ Output; 1x 10GE LAN Port
Recommended Users: 300–1000
SIM Options: Mini-SIM, Peplink eSIM, BYO eSIM (2 profiles), RemoteSIM, FusionSIM (via FlexModule Mini; up to 1 modem, up to 2 SIM slots)
Antenna Connectors: Per installed FlexModule Mini
Power Input: Universal Input 100V – 240V AC
Power Consumption: 37W (nominal) / 39W (max. without PoE and USB-C Output)
Weight: 9.39 pounds / 4.26 kg
Humidity: 10% to 95% (non-condensing)
Certifications: FCC, CE, RoHS
Package Content: 1x Balance 580X, 1x Power Cord (ACW-614), Rubber Foot Pad Set, 1x Ear Rack Mount Kit with screws
Warranty: 1-Year Limited Warranty
SpeedFusion Features: Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput: 8Gbps
Dimensions: 17.3 x 12.2 x 1.73 inches / 440 x 310 x 44 mm
AP Controller: 100 (max. controlled APs/switches)
Edge Computing: Docker (8GB Internal Storage / External Storage via USB Port)
Maximum Number of APs Supported: 100 (max. controlled APs/switches)
PepVPN Throughput (No Encryption): 1Gbps
PepVPN Throughput (256-bit AES): 1Gbps
Cellular 1 Data Rate (Downlink/Uplink): Optional - requires a compatible 5G or LTE FlexModule Mini
Number of PepVPN / SpeedFusion Peers: 100 / 300 / 500 (up to 500 SpeedFusion Peers with SFN-LC-300 / SFN-LC-500 license)
802.1q VLANs Supported: 1024
Drop-In Mode: Yes
High Availability: Yes
Number of IPsec Tunnels: 100 (OpenVPN site-to-site: 5; GRE: 5)
PoE Output: 8x 802.3bt Type 4 PoE++ output ports; 720W total PoE budget
Operating Temperature: 32°– 104°F / 0°– 40°C
Serial: Console Port and LED Screen
Recommended PPTP/L2TP/OpenVPN Users: 100 (PPTP/L2TP/OpenVPN users)

Peplink Balance 580X Modular SD-WAN Router

Pricing for Peplink Balance 580X Modular SD-WAN Router is available to Paygasus customers.
