In stock · Ready to ship Peplink MAX BR2 Micro Dual LTE Cellular Router (FirstNet Capable)
Cellular Routers

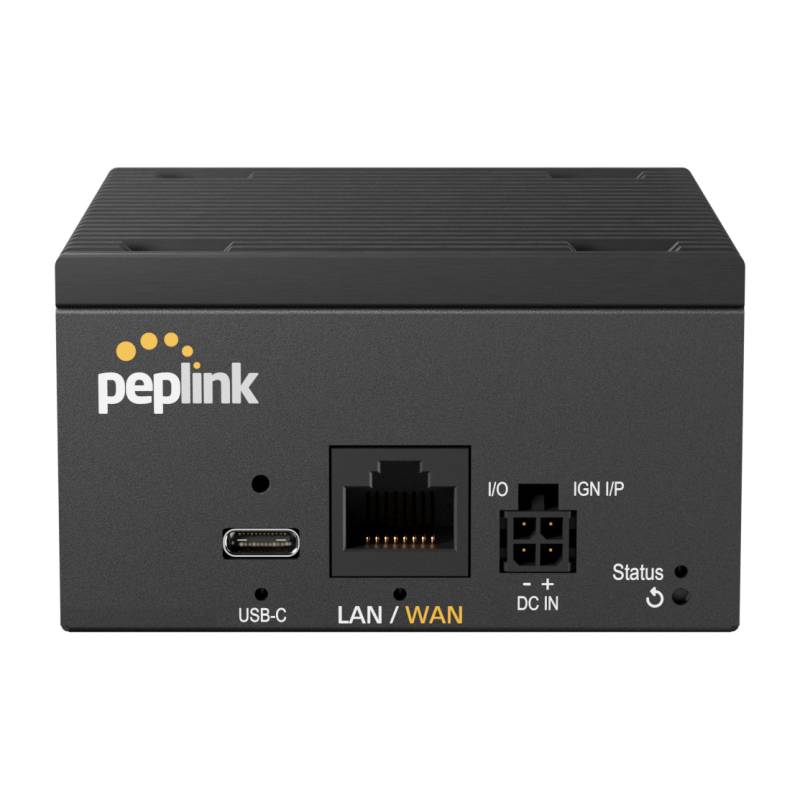

Peplink MAX BR2 Micro Dual LTE Cellular Router (FirstNet Capable)

$599.00per unit
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

Palm-sized dual LTE router with USB-C power, GPS, GPIO and ignition sensing for vehicles and tight enclosures.

SKU: MAX-BR2-MICRO-LTE-US-PRM
Additional Warranty*
Plan
Connectivity Plans

Billed monthly, separately from this order, once the plan is activated. Nothing is charged for it at checkout.

Software Licences
Quantity
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Some installs have no room for a full router: a motorcycle, a small utility vehicle, a sensor enclosure, a kiosk pedestal.

The Peplink MAX BR2 Micro packs two LTE modems with redundant nano-SIM slots and eSIM, one gigabit port configurable as WAN or LAN, GPS, GPIO and ignition sensing into a 350-gram metal chassis measuring 76 x 83 x 43 mm. Routing is 300 Mbps with 80 Mbps of SpeedFusion for 1 to 60 users, on MMCX antenna connectors.

It runs from 10V to 30V DC, USB-C at 9V or the included adapter, rated -40 to 65 °C, and is certified for AT&T, T-Mobile, Verizon and FirstNet.

Product details
In the box
  • 1x BR2 Micro
  • 1x 12V 2A 4 Pin Power Supply (ACW-632)
  • 1x USB-C to USB-C Cable with Screw Locking (ACW-820)
  • 1x USB-C to USB-A Adapter (ACW-822)
  • 4x M2.5 x 3mm Screws
  • 1 pair of Mounting Brackets
Built for
Motorcycle and ATV patrol unitsGolf course and grounds vehiclesSensor and telemetry enclosuresKiosk pedestals and ticket machinesSmall watercraft and patrol skiffs
Specifications
Enclosure
Indoor, Metal
WAN Interface
1x GE WAN/LAN port (configurable); max config: 1 WAN with 0 LAN, 0 WAN with 1 LAN
LAN Interface
1x 10/100/1000M Ethernet (configurable as LAN)
Recommended Users
1–60
SIM Options
2 SIM slots, Nano-SIM (4FF); Peplink eSIM, BYO eSIM (2 profiles per modem), RemoteSIM from SIM Injector, FusionSIM
Antenna Connectors
4x MMCX Cellular Antenna Connectors; 1x MMCX GPS Antenna Connector
Power Input
AC Adapter: 100V–240V / 12V DC; Power Port: 10V–30V DC; USB-C Port: 9V DC
Power Consumption
8W (nominal), 13W (max.)
Weight
0.77 pounds / 350 grams
Humidity
15%–95% (non-condensing)
Certifications
FCC, CE, RoHS, EN 61000 Electromagnetic Compatibility
Package Content
1x BR2 Micro 1x 12V 2A 4 Pin Power Supply (ACW-632) 1x USB-C to USB-C Cable with Screw Locking (ACW-820) 1x USB-C to USB-A Adapter (ACW-822) 4x M2.5 x 3mm Screws 1 pair of Mounting Brackets
Warranty
1-Year Limited Warranty
Router Throughput
300Mbps
Dimensions
2.99 x 3.25 x 1.69 inches / 76 x 83 x 43 mm
Wi-Fi Interface
No
Cellular Antenna Connectors
4x MMCX Cellular Antenna Connectors
GPS Antenna Connector
Yes
PepVPN Throughput (No Encryption)
80Mbps (SpeedFusion VPN, No Encryption)
PepVPN Throughput (256-bit AES)
60Mbps (SpeedFusion VPN, 256-bit AES)
Cellular 1 Data Rate (Downlink/Uplink)
CAT-4: 150 Mbps / 50 Mbps CAT-7: 300 Mbps / 150 Mbps CAT-12: 600 Mbps / 150 Mbps
Number of PepVPN / SpeedFusion Peers
2 default, up to 5 with PrimeCare
802.1q VLANs Supported
16
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
No
Operating Temperature
-40°–149°F / -40°–65°C
Compatibility
US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet
Other Ports
1x USB-C (data connection)
Serial
No
