In stock · Ready to ship Peplink MAX BR1 Mini 5G Cellular Router with Wi-Fi (FirstNet Capable, T-Priority)
Cellular Routers

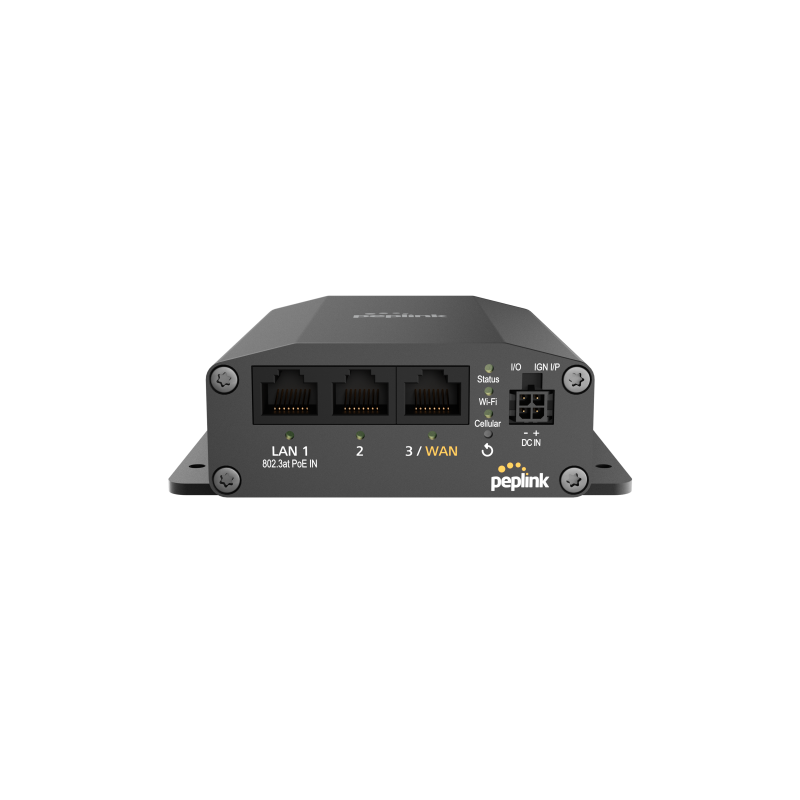

Peplink MAX BR1 Mini 5G Cellular Router with Wi-Fi (FirstNet Capable, T-Priority)

$649.00per unit
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

Compact, rugged 5G router featuring built-in Wi-Fi 6. Delivers reliable cellular connectivity and wireless access for mobile deployments and retail branches.

SKU: MAX-BR1-MINI-5GN-T-PRM
Additional Warranty*
Plan
Connectivity Plans

Billed monthly, separately from this order, once the plan is activated. Nothing is charged for it at checkout.

Software Licences
Quantity
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Seasonal retail, ticket booths, parks facilities, small municipal field offices and outreach vans need a local network as well as an uplink. A consumer hotspot is not built for daily enterprise use, and a full branch router is more than these sites need.

The Peplink MAX BR1 Mini 5G pairs one 5G modem with dual-band Wi-Fi in a fanless, ventless metal case certified for shock and vibration. An Ethernet port serves a local device or converts to a wired WAN, with router throughput up to 300 Mbps.

It supports 5G in NSA and SA modes across a wide set of bands, and certification for AT&T, T-Mobile, Verizon and FirstNet lets a municipality standardize on one unit for every small site.

Product details
In the box
  • 1x BR1 Mini 5G (HW2)
  • 4x LTE/5G Antennas (ACW-235)
  • 2x Dual Band Wi-Fi Antennas (ACW-342)
  • 1x 12V 2A 4pin Power Supply (ACW-632)
Built for
Seasonal & pop-up retailMobile ticketing boothsParks & recreation facilitiesSmall municipal field officesMobile libraries & outreach vans
Specifications
Enclosure
Compact, Indoor Metal
WAN Interface
1x Embedded 5G Modem with 2 SIM slots (5G NSA and SA); 1x Ethernet WAN available by converting a LAN port (PrimeCare required)
LAN Interface
3x 10/100/1000M Ethernet (2 when one port is set as WAN)
Recommended Users
1-60
SIM Options
2x Nano-SIM (4FF), Peplink eSIM, BYO eSIM, RemoteSIM from SIM Injector (HW2+), FusionSIM (HW2+)
Antenna Connectors
4x SMA Cellular Connectors
Power Input
AC adapter: 100V-240V input / 12V 2A output; DC: 10V-30V; 1x 802.3at PoE input
Power Consumption
11W (nominal) / 13W (max.)
Weight
420 g / 0.93 lb
Humidity
15%-95% (non-condensing)
Certifications
FCC, CE, RoHS, EN 61000 EMC, EN 45545-2 Railway Fire Protection (TAA Compliant per cover)
Package Content
1x BR1 Mini 5G; 4x LTE/5G Antennas (ACW-235); 2x Dual Band Wi-Fi Antennas (ACW-342); 1x 12V 2A 4-pin Power Supply (ACW-632)
Warranty
1-Year Limited Warranty
Cellular Data Rate (Downlink/Uplink)
5G - 3.4 Gbps / 900 Mbps; CAT-20 - 1.6 Gbps / 200 Mbps (maximum theoretical)
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding (PrimeCare required)
Router Throughput
300 Mbps
Dimensions
4.95 x 4.2 x 1.4 in / 125.7 x 107 x 35 mm
Wi-Fi Interface
Dual-band (2.4GHz / 5GHz) Wi-Fi
AP Controller
No
Cellular Antenna Connectors
4x SMA
Maximum Number of APs Supported
No
PepVPN Throughput (No Encryption)
80 Mbps
PepVPN Throughput (256-bit AES)
60 Mbps
Cellular 1 Data Rate (Downlink/Uplink)
5G: 3.4 Gbps / 900 Mbps; CAT-20: 1.6 Gbps / 200 Mbps (maximum theoretical rates)
Number of PepVPN / SpeedFusion Peers
2 or 5 (5 with PrimeCare)
802.1q VLANs Supported
16
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
No
Operating Temperature
-40 to 149 F / -40 to 65 C
Compatibility
AT&T, T-Mobile, Verizon, FirstNet. T-Priority
Serial
No
Recommended PPTP/L2TP/OpenVPN Users
3
Cellular WAN Interface
1x Embedded 5G Modem with 2 SIM slots
