In stock · Ready to ship Peplink MAX BR1 Mini 5G Cellular Router, No Wi-Fi (FirstNet Capable, T-Priority)
Cellular Routers

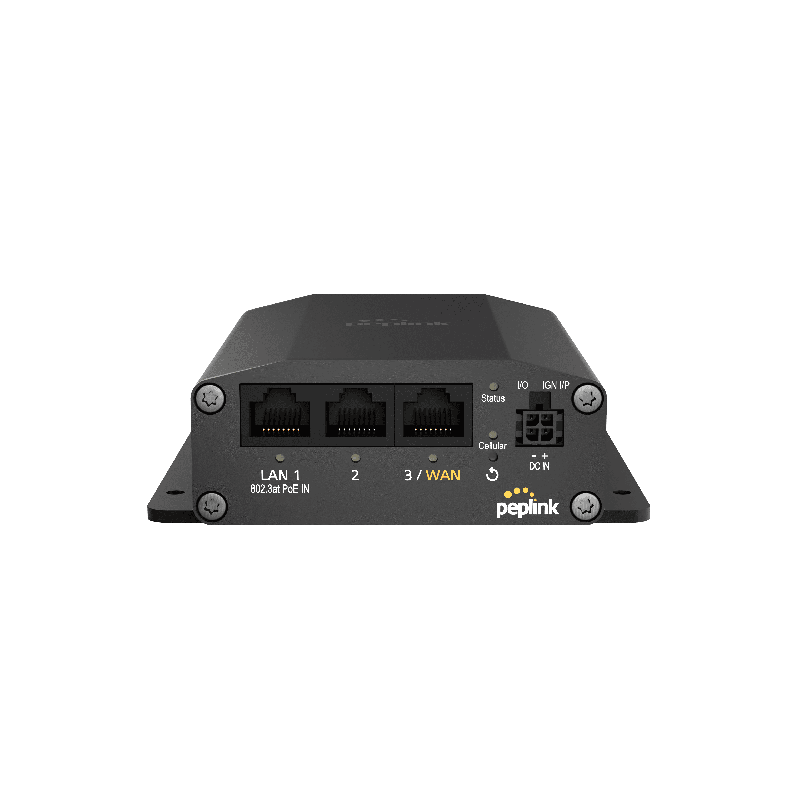

Peplink MAX BR1 Mini 5G Cellular Router, No Wi-Fi (FirstNet Capable, T-Priority)

$599.00per unit
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

Ruggedized 5G router optimized for IoT and M2M deployments. Features Ethernet LAN connectivity and industrial-grade durability without built-in Wi-Fi.

SKU: MAX-BR1-MINI-5GN-T-M-PRM
Additional Warranty*
Plan
Connectivity Plans

Billed monthly, separately from this order, once the plan is activated. Nothing is charged for it at checkout.

Software Licences
Quantity
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Vending machines, ATMs, SCADA panels, smart meters and fare gates do not need Wi-Fi. They need a small, durable cellular link that keeps transactions and telemetry flowing and can be reached remotely when something goes wrong.

The Peplink MAX BR1 Mini 5G without Wi-Fi carries one 5G modem supporting NSA and SA modes in a fanless, ventless metal case certified for shock and vibration. An Ethernet LAN port connects the machine and can be converted to a wired WAN when a line is available.

It is certified for AT&T, T-Mobile, Verizon and FirstNet, supports private 5G networks, and includes InTouch out-of-band access so a remote team can reach the device without a site visit.

Product details
In the box
  • 1x BR1 Mini 5G
  • 4x LTE/5G Antennas (ACW-235)
  • 1x 12V 2A 4pin Power Supply (ACW-632)
Built for
Vending & micro-market machinesATMs & bill-pay kiosksSCADA & telemetry panelsSmart meter & utility gatewaysTransit fare validators & gatesEnvironmental monitoring stations
Specifications
Enclosure
Compact, Indoor Metal
WAN Interface
1x Embedded 5G Modem with 2 SIM slots (5G NSA and SA); 1x Ethernet WAN available by converting a LAN port (PrimeCare required)
LAN Interface
3x 10/100/1000M Ethernet (2 when one port is set as WAN)
Recommended Users
1-60
SIM Options
2x Nano-SIM (4FF), Peplink eSIM, BYO eSIM, RemoteSIM from SIM Injector (HW2+), FusionSIM (HW2+)
Antenna Connectors
4x SMA Cellular Connectors
Power Input
AC adapter: 100V-240V input / 12V 2A output; DC: 10V-30V; 1x 802.3at PoE input
Power Consumption
11W (nominal) / 13W (max.)
Weight
420 g / 0.93 lb
Humidity
15%-95% (non-condensing)
Certifications
FCC, CE, RoHS, EN 61000 EMC, EN 45545-2 Railway Fire Protection (TAA Compliant per cover)
Package Content
1x BR1 Mini 5G; 4x LTE/5G Antennas (ACW-235); 1x 12V 2A 4-pin Power Supply (ACW-632)
Warranty
1-Year Limited Warranty
Cellular Data Rate (Downlink/Uplink)
5G - 3.4 Gbps / 900 Mbps; CAT-20 - 1.6 Gbps / 200 Mbps (maximum theoretical)
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding (PrimeCare required)
Router Throughput
300 Mbps
Dimensions
4.95 x 4.2 x 1.4 in / 125.7 x 107 x 35 mm
Wi-Fi Interface
None (no Wi-Fi model)
AP Controller
No
Edge Computing
No
Cellular Antenna Connectors
4x SMA
GPS Antenna Connector
No
Maximum Number of APs Supported
No
PepVPN Throughput (No Encryption)
80 Mbps
PepVPN Throughput (256-bit AES)
60 Mbps
Cellular 1 Data Rate (Downlink/Uplink)
5G: 3.4 Gbps / 900 Mbps; CAT-20: 1.6 Gbps / 200 Mbps (maximum theoretical rates)
Number of PepVPN / SpeedFusion Peers
2 or 5 (5 with PrimeCare)
802.1q VLANs Supported
16
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
No
Operating Temperature
-40 to 149 F / -40 to 65 C
Compatibility
AT&T, T-Mobile, Verizon, FirstNet. T-Priority
Serial
No
Recommended PPTP/L2TP/OpenVPN Users
3
Cellular WAN Interface
1x Embedded 5G Modem with 2 SIM slots
