In stock · Ready to ship Peplink B One Plus LTE SD-WAN Router (FirstNet Capable)
SD-WAN Routers

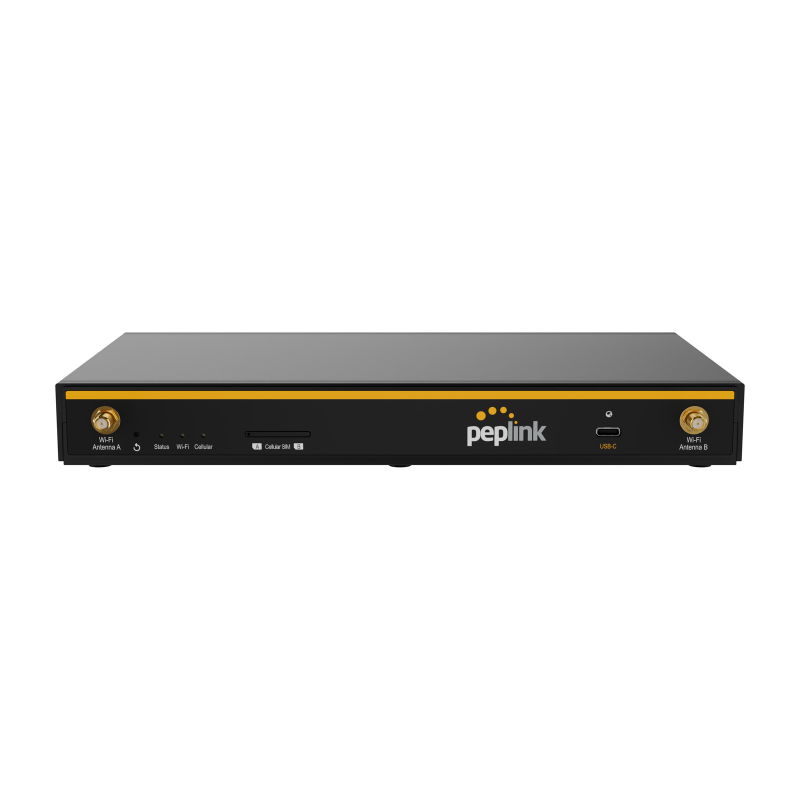

Peplink B One Plus LTE SD-WAN Router (FirstNet Capable)

$479.00per unit
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

Dual WAN branch router with a built-in LTE modem, dual SIM plus eSIM, Wi-Fi 6 and SpeedFusion bonding for up to 150 users.

SKU: B-ONE-PLUS-LTE-US-T-PRM
Additional Warranty*
Plan
Connectivity Plans

Billed monthly, separately from this order, once the plan is activated. Nothing is charged for it at checkout.

Software Licences
Quantity
Overview

A small branch with one wired line and no cellular backup closes early when that line fails. Adding a modem and a separate access point doubles the boxes.

The Peplink B One Plus puts two gigabit Ethernet WANs, a USB-C WAN, an LTE CAT-4 modem with two nano-SIM slots and eSIM, four gigabit LAN ports and dual-band Wi-Fi 6 in one unit. Routing is 1 Gbps with 400 Mbps of SpeedFusion for 1 to 150 users, and SpeedFusion bonds and fails over between wired and cellular.

It runs from 10V to 30V DC or the included adapter, rated -40 to 45 °C in a plastic indoor chassis, and is certified for AT&T, T-Mobile, Verizon and FirstNet. Two cellular and two Wi-Fi antennas ship in the box.

Product details
In the box
  • 1x B One Plus
  • 2x LTE/5G Antennas (ACW-235)
  • 2x Dual Band Wi-Fi Antennas (ACW-341)
  • 1x 12V 3A 4-Pin Power Supply
Built for
Franchise quick-service locationsUrgent care satellite clinicsMunicipal permit and licensing countersReal estate and title officesVeterinary practices
Specifications
Enclosure
Indoor, Plastic; Rack-mount: No
WAN Interface
2x 10/100/1000M Ethernet WAN; 1x USB-C Interface (USB WAN); max config 2 WAN with 4 LAN; SFP: No
LAN Interface
4x 10/100/1000M Ethernet LAN
Recommended Users
1-150
SIM Options
2 SIM slots, Nano-SIM (4FF); Peplink eSIM; BYO eSIM (2 profiles); RemoteSIM; FusionSIM
Antenna Connectors
2x RP-SMA Wi-Fi Antenna Connectors
Power Input
Power Port: 10V – 30V DC; AC Adapter: AC Input 100V–240V / DC Output 12V; included 12V 3A 4 Pin Power Supply (ACW-672)
Power Consumption
6W (nominal), 17W (max. without USB-C output)
Weight
1.7 pounds / 761 grams
Humidity
10% – 90% (non-condensing)
Certifications
FCC, CE, RoHS
Package Content
1x B One Plus, 2x LTE/5G Antennas, 2x Dual Band Wi-Fi Antennas, 1x 12V 3A 4 Pin Power Supply (ACW-672)
Warranty
1-Year Limited Warranty
Router Throughput
1Gbps
Dimensions
10.31 x 6.33 x 1.31 inches / 262 x 161 x 33.5 mm
Wi-Fi Interface
Simultaneous Dual-Band (2.4GHz / 5GHz), Wi-Fi 6, 2X2 MIMO; transmit power 20dBm (2.4GHz), 24dBm (5GHz); 16 SSIDs
AP Controller
Standard; Maximum Number of AP Supported: 30 / 50
Edge Computing
Docker: Requires FW 8.5.2+ with a perpetual software license (LIC-DOC), or FW 8.6.0+ with active PrimeCare, to enable Docker.
Cellular Antenna Connectors
2x SMA Cellular Connectors
GPS Antenna Connector
No
Maximum Number of APs Supported
Standard; Maximum Number of AP Supported: 30 / 50
PepVPN Throughput (No Encryption)
400 Mbps
PepVPN Throughput (256-bit AES)
200 Mbps
Cellular 1 Data Rate (Downlink/Uplink)
1x Embedded Cellular Modem with a Redundant SIM Slot; CAT-4: 150 Mbps / 50 Mbps; 5G support: No
Number of PepVPN / SpeedFusion Peers
2 / 5 / 10 / 20
802.1q VLANs Supported
16 (802.1q VLANs Supported); Load Balancing Algorithms: 8
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5 (OpenVPN site-to-site: 5; GRE: 5)
PoE Output
No
Operating Temperature
- 40° – 113°F / - 40° – 45°C
Compatibility
US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet
Serial
No
Recommended PPTP/L2TP/OpenVPN Users
15 (PPTP/L2TP/OpenVPN users)
