In stock · Ready to ship Peplink B One 5G SD-WAN Router (FirstNet Capable, T-Priority)
SD-WAN Routers

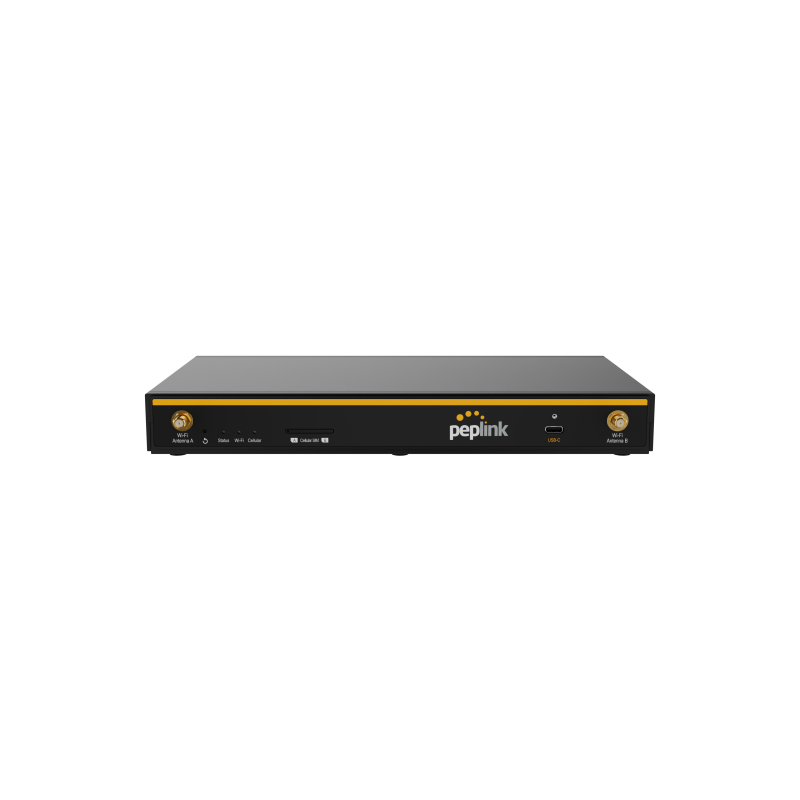

Peplink B One 5G SD-WAN Router (FirstNet Capable, T-Priority)

$699.00per unit

Powerful branch office router featuring integrated 5G and Wi-Fi 6. Seamlessly combines cellular and wired WANs for reliable, high-speed business connectivity.

SKU: B-ONE-5GN-T-PRM
Additional Warranty*
Plan
Connectivity Plans

Billed monthly, separately from this order, once the plan is activated. Nothing is charged for it at checkout.

Software Licences
Quantity
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Small branches rarely have IT staff on site, yet they carry the same expectations as headquarters. The teller system, the pharmacy counter and the franchise point of sale all need a connection that stays up, and a single wired line leaves each of those sites one outage away from closing early.

The Peplink B One 5G combines two gigabit Ethernet WANs, four gigabit LAN ports, an embedded 5G modem with dual SIM slots and dual-band Wi-Fi 6 in one indoor unit. SpeedFusion bonding and failover treat the wired and cellular links as one connection, sized for up to 150 users.

Every B One on the network is managed from InControl 2, so a regional team can configure, monitor and update dozens of branches from one console.

Product details
In the box
  • 1x B One 5G
  • 4x LTE/5G Antennas
  • 2x Dual Band Wi-Fi Antennas
  • 1x 12V 3A 4 Pin Power Supply (ACW-672)
Built for
Small branch officesBank & credit union branchesPharmacy locationsFranchise storefrontsDealership showrooms & service lanesProperty management offices
Specifications
Enclosure
Indoor, Plastic
WAN Interface
2x 10/100/1000M Ethernet, 1x Embedded 5G Modem with 2 SIM slots (5G NSA and SA), 1x USB-C WAN
LAN Interface
4x 10/100/1000M Ethernet
Recommended Users
1-150
SIM Options
2x Nano-SIM (4FF), Peplink eSIM, BYO eSIM, RemoteSIM from SIM Injector (HW2+), FusionSIM (HW2+)
Antenna Connectors
4x SMA Cellular Connectors
Power Input
AC adapter: 100V-240V input / 12V 3A output; DC: 10V-30V
Power Consumption
7W (nominal) / 19W (max.)
Weight
756 g / 1.7 lb
Humidity
10%-90% (non-condensing)
Certifications
FCC, CE, RoHS (TAA Compliant per cover)
Package Content
1x B One 5G; 4x LTE/5G Antennas; 2x Wi-Fi Dual Band Antennas; 1x 12V 3A Power Supply
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput
1 Gbps
Dimensions
10.31 x 6.33 x 1.31 in / 262 x 161 x 33.5 mm
Wi-Fi Interface
Dual-band (2.4GHz / 5GHz) Wi-Fi 6, 2x2 MIMO, 16 SSIDs, Wi-Fi WAN and/or AP
AP Controller
Yes (max. 30 APs / 50 switches)
Edge Computing
Docker (requires FW 8.5.2+ with LIC-DOC perpetual license, or FW 8.6.0+ with active PrimeCare)
Cellular Antenna Connectors
4x SMA
Maximum Number of APs Supported
30
PepVPN Throughput (No Encryption)
400 Mbps
PepVPN Throughput (256-bit AES)
200 Mbps
Cellular 1 Data Rate (Downlink/Uplink)
5G: 3.4 Gbps / 550 Mbps CAT-19: 1.6 Gbps / 200 Mbps
Number of PepVPN / SpeedFusion Peers
2 / 5 / 10 / 20
802.1q VLANs Supported
16
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
No
Operating Temperature
-40 to 113 F / -40 to 45 C
Compatibility
AT&T, T-Mobile, Verizon, FirstNet. T-Priority
Other Ports
1x USB-C
Serial
No
Recommended PPTP/L2TP/OpenVPN Users
15
Cellular WAN Interface
1x Embedded 5G Modem with 2 SIM slots
