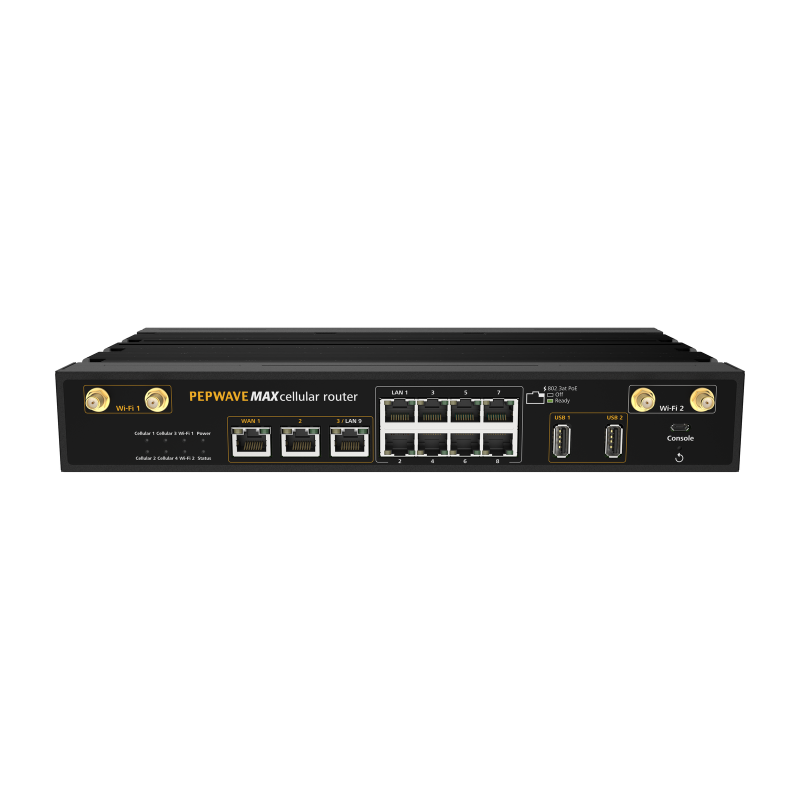

Peplink MAX HD2 MBX Dual 5G Cellular Router (FirstNet Capable)

Pricing on sign-up

Pricing for Peplink MAX HD2 MBX Dual 5G Cellular Router (FirstNet Capable) is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales

Multi-Cellular Gigabit 5G Mobile Powerhouse with dual embedded 5G modems. Provides massive cellular bandwidth and resilient SpeedFusion bonding for mission-critical connectivity.

SKU: MAX-HD2-MBX-5GH-T
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Patrol vehicles, fire apparatus and ambulances carry more connected equipment every year: cameras, laptops, access points and in-vehicle devices that all need power and a network. A mobile command vehicle adds even more, and none of it can wait for a single carrier to recover.

The Peplink MAX HD2 MBX 5G carries two 5G modems with four SIM slots and eleven gigabit Ethernet ports configurable as up to three WANs, with up to eight 802.3at PoE+ ports on dual 54V inputs. Router throughput reaches 2.5 Gbps, with dual-band Wi-Fi 5 and GPS.

SpeedFusion hot failover, smoothing and bandwidth bonding keep both modems working as one connection, and the metal enclosure is rated -40 to 65 °C for vehicle installs.

Product details
In the box
  • 1x MAX HD2 MBX
  • 1x PSU 180W (ACW-630)
  • 4x Wi-Fi Dual Band Antenna (ACW-341)
  • 1x GPS Antenna (ACW-232)
  • 1 Pair of Mounting Brackets (ACW-513)
  • 3-pin Terminal Block Connector (Ignition Sense)
  • 4-pin Terminal Block Connector (Power Supply)
  • Grounding Cable
  • Rubber Foot Pad Set
Built for
Police patrol & tactical vehiclesFire apparatusAmbulances & EMS unitsMobile command vehiclesTransit supervisor vehicles
Specifications
Enclosure
Indoor, Metal
WAN Interface
3x 10/100/1000M Ethernet (2 when WAN 3 is set to LAN), 2x Embedded 5G Modems with 4 SIM slots (Global 5GD model: 5G NSA; Global 5GN model: 5G NSA and SA), 2x USB WAN
LAN Interface
8x 10/100/1000M Ethernet (9 when WAN 3 is set to LAN)
Recommended Users
50-500
SIM Options
4x Mini-SIM (2FF), Peplink eSIM (HW4+), BYO eSIM (HW4+), RemoteSIM from SIM Injector, FusionSIM
Antenna Connectors
8x SMA Cellular Antenna Connectors
Power Input
AC adapter: 100V-240V input / 54V 3.34A output; DC: 12V-56V
Power Consumption
33W (nominal) / 55W (max., without PoE)
Weight
3.3 kg / 7.28 lb
Humidity
15%-95% (non-condensing)
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput
2.5 Gbps
Dimensions
1.7 x 11.5 x 7.0 in / 43 x 292 x 177 mm
Wi-Fi Interface
Dual-band (2.4GHz / 5GHz) Wi-Fi 5, 2x2 MIMO, 16 SSIDs
AP Controller
Yes (max. 30 APs / 50 switches)
Cellular Antenna Connectors
8x SMA
GPS Antenna Connector
Yes
Maximum Number of APs Supported
30
PepVPN Throughput (No Encryption)
600 Mbps
PepVPN Throughput (256-bit AES)
500 Mbps
Number of PepVPN / SpeedFusion Peers
3 or 20 or 50
802.1q VLANs Supported
128
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
Up to 8x 802.3at PoE+ (dual 54V inputs required for all ports)
Operating Temperature
-40 to 149 F / -40 to 65 C
Other Ports
2x USB
Serial
No
Recommended PPTP/L2TP/OpenVPN Users
15
Cellular WAN Interface
2x Embedded 5G Modems with 4 SIM slots
Package Content
1x MAX HD2 MBX; 1x PSU 180W (ACW-630); 4x Wi-Fi Dual Band Antenna (ACW-341); 1x GPS Antenna (ACW-232); 1 pair of Mounting Brackets (ACW-513); 3-pin Terminal Block Connector (ignition sense); 4-pin Terminal Block Connector (power supply); Grounding cable; Rubber Foot Pad set
