In stock · Ready to ship Peplink 5G Cellular Adapter
5G Adapters

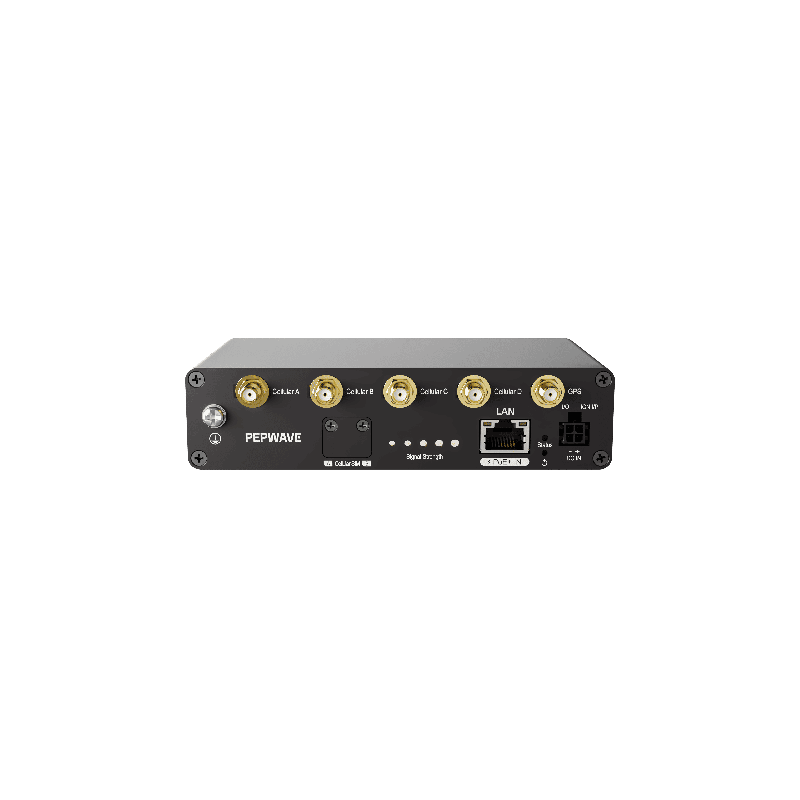

Peplink 5G Cellular Adapter

$399.00per unit
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

Ethernet-based 5G adapter. Upgrades existing network infrastructure with 5G cellular connectivity, easily integrating with any router via standard Ethernet.

SKU: ADP-5GY-T-PRM
Connectivity Plans

Billed monthly, separately from this order, once the plan is activated. Nothing is charged for it at checkout.

Quantity
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Plenty of sites already run a router they trust on a wired line that works most of the time. What they lack is a second path that does not share the same cable in the ground, and a spot inside the building where cellular signal actually reaches. Warehouses, parking garages and transit depots are the usual examples.

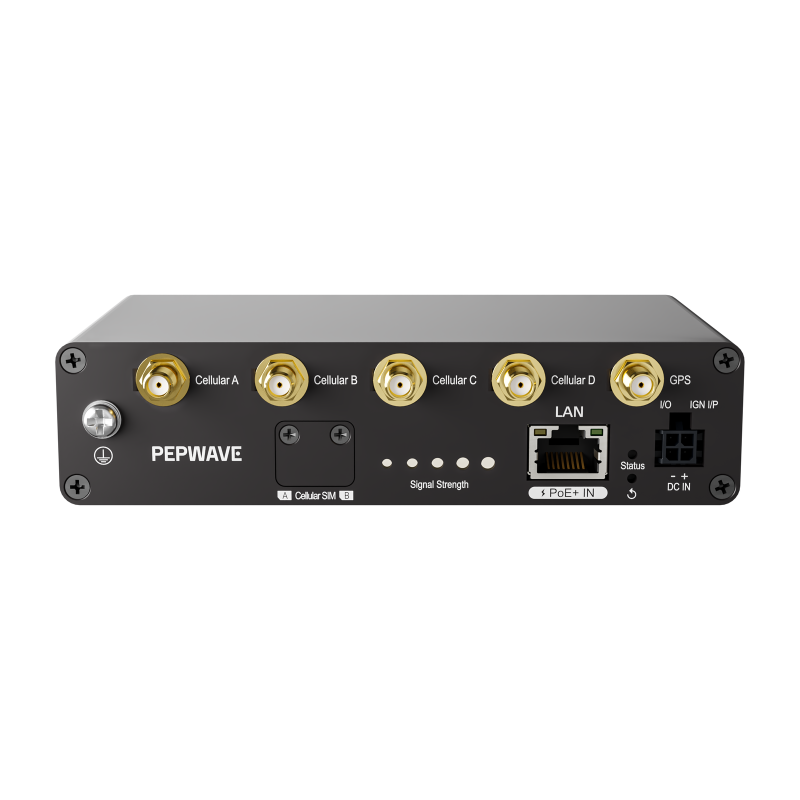

The Peplink 5G Cellular Adapter adds that path without touching the core network. It connects to the existing router over one 2.5G Ethernet cable, draws power from the same cable through 802.3at PoE, and carries four SMA cellular connectors plus a GPS connector.

With 5G and CAT-19 LTE, nano-SIM, eSIM and FusionSIM options, and a -40 to 65 °C operating range, it can be placed where coverage is strongest while the router stays where it is.

Product details
In the box
  • 1x 5G Adapter
  • 1x 12V 2A 4 Pin Power Supply
  • 4x LTE/5G Antennas (ACW-235)
  • 1x GPS Active Antenna
Built for
Warehouses & distribution centersParking garages & decksBasement & interior equipment roomsTransit stations & depotsNetworks adding 5G to an existing router
Specifications
WAN Interface
1x Embedded Cellular Modem
LAN Interface
1x 10/100/1000/2500M RJ45 Ethernet
SIM Options
Nano-SIM (4FF) Peplink eSIM BYO eSIM (2 profiles) RemoteSIM from SIM Injector FusionSIM
Antenna Connectors
4 x SMA Cellular, 1 x SMA GPS
Power Input
AC Adapter: AC Input 100V–240V / DC Output 12V Micro-fit connector with 10-30VDC input Power over Ethernet 802.3at
Power Consumption
6.5W (nominal), 10W (max.)
Weight
0.86 pounds / 390 grams
Humidity
15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS
Package Content
1x 5G Adapter 1x 12V 2A 4 Pin Power Supply 4x LTE/5G Antennas (ACW-235) 1x GPS Active Antenna
Warranty
1-Year Limited Warranty
Dimensions
5.4 x 3.1 x 1.3 inches / 138.2 x 80 x 33.5 mm
Wi-Fi Interface
None (no Wi-Fi)
GPS Antenna Connector
Yes (?)
Cellular 1 Data Rate (Downlink/Uplink)
5G: 3.4 Gbps / 550 Mbps CAT-19: 1.6 Gbps / 200 Mbps
Operating Temperature
-40° – 149°F / -40° – 65°C
Compatibility
AT&T, T-Mobile, Verizon, FirstNet
Configuration Interface
InControl (with InTouch)
Cellular WAN Interface
1x Embedded 5G Modem
Other
Pre-loaded with 1GB Peplink global eSIM data for zero-touch provisioning
