In stock · Ready to ship Peplink FlexModule Mini 5G Module (FirstNet Capable)
Expansion Modules

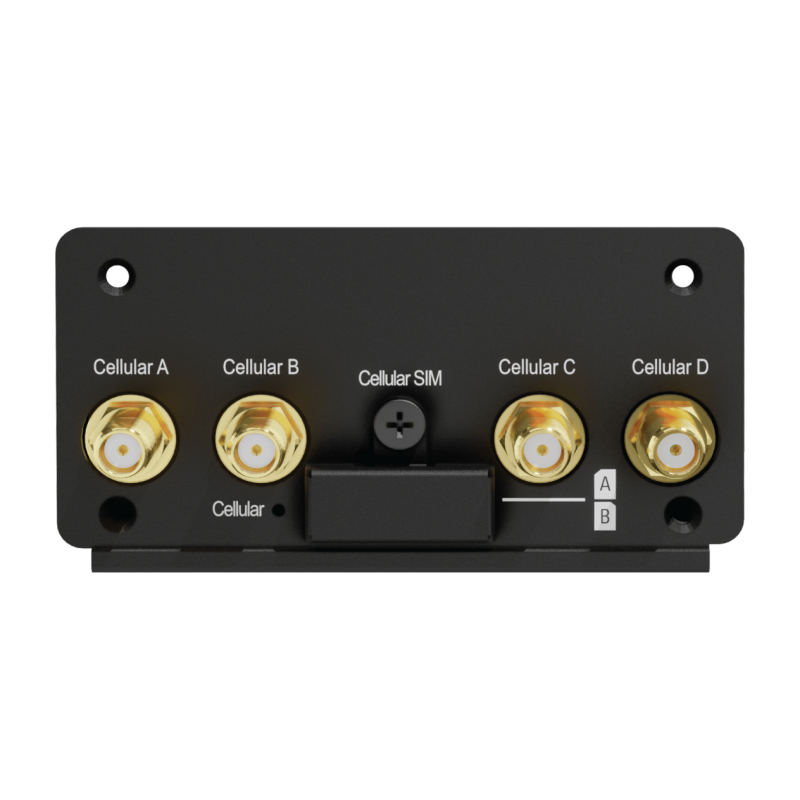

Peplink FlexModule Mini 5G Module (FirstNet Capable)

$699.00per unit
FirstNet Built with AT&T Verizon Frontline AT&T

Single-modem 5G FlexModule Mini with four antennas included that adds 5G to a Balance 20X, 380X or 580X.

SKU: EXM-MINI-15GH
Additional Warranty*
Plan
Connectivity Plans

Billed monthly, separately from this order, once the plan is activated. Nothing is charged for it at checkout.

Quantity
Overview

A Balance 20X, 380X or 580X installed with wired WANs can take on 5G later without a second router at the site.

The Peplink FlexModule Mini 5G slides into the FlexModule Mini slot with one 5G modem and redundant SIM slots. Peplink's Balance 20X page rates it at 4 Gbps downlink and 700 Mbps uplink on 5G and 2 Gbps on LTE CAT-20. Four ACW-235 antennas and an exchangeable module cover are in the box.

It is certified for AT&T and Verizon per Peplink and is on FirstNet's approved device list. The router must be powered down before the module is installed. EssentialCare plans cover the module.

Product details
In the box
  • 1x FlexModule Mini 5G
  • 4x Cellular Antennas (ACW-235)
  • 1x Exchangeable Module Cover
Built for
Small municipal service centersNeighborhood health clinicsCharter school campusesBranch librariesRegional insurance offices
Specifications
SIM Options
Redundant SIM slots
Power Consumption
EXM-MINI-15GH: 10W EXM-MINI-15GN: 18W
Weight
EXM-MINI-15GH: 0.83 pounds / 375 grams EXM-MINI-15GN: 0.419 pounds / 0.19 kg
Package Content
1x FlexModule Mini 5G 4x Cellular Antennas (ACW-235) 1x Exchangeable Module Cover
Warranty
1-Year Limited Warranty
Dimensions
EXM-MINI-15GN: 4.15 x 3.61 x 1.00 inches / 105.5 x 91.8 x 25.5 mm
Cellular Antenna Connectors
4x SMA Cellular Antenna Connectors
Cellular 1 Data Rate (Downlink/Uplink)
EXM-MINI-15GH: 5G: 4 Gbps / 700 Mbps; LTE CAT-20: 2 Gbps / 150 Mbps EXM-MINI-15GN: 5G: 3.4 Gbps / 900 Mbps; LTE CAT-20: 1.6 Gbps / 200 Mbps
Compatibility
Balance 20X / 380X / 580X. The router must be disconnected from power before installing the module. Upgrading from LTE-A CAT-6 or CAT-12 to CAT-18 or 5G requires additional antennas.
Other
EXM-MINI-15GH is listed on the Balance 20X product page; the current FlexModule Mini datasheet (ref 2602-v01) lists EXM-MINI-15GN instead. Values labeled by SKU/source.
