In stock · Ready to ship Peplink HD4 MBX Quad 5G Expansion Module
Expansion Modules

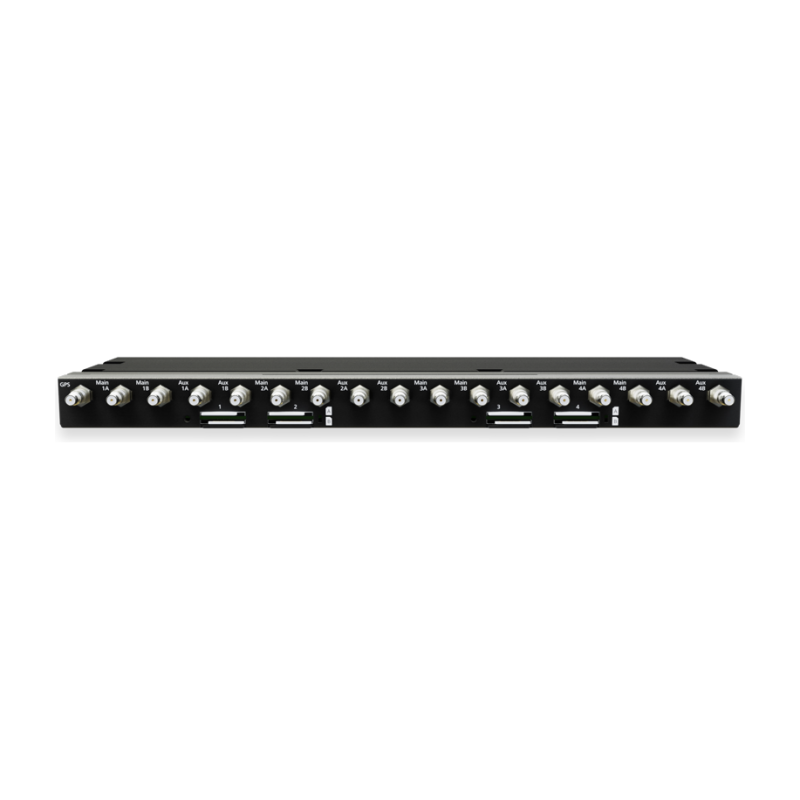

Peplink HD4 MBX Quad 5G Expansion Module

Pricing on sign-up

Pricing for Peplink HD4 MBX Quad 5G Expansion Module is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales

Four-modem 5G expansion module that upgrades an LTE HD4 MBX to 5G with 4.1 Gbps downlink per modem.

SKU: EXM-MBX-T4-5G
Model
Overview

An HD4 MBX bought with LTE modems does not have to be replaced when 5G becomes the standard on the fleet.

The Peplink HD4 MBX 5G Expansion Module swaps into the chassis with four 5G modems and redundant SIM slots, rated 4.1 Gbps downlink and 900 Mbps uplink on 5G, 2 Gbps on LTE CAT-20. It weighs 1 kg and measures 22 x 292 x 88 mm.

Three modem models are offered: 5GH, 5GK for North America on the X65 chipset, and 5GN for global NSA and SA. EssentialCare plans cover the module separately from the router.

Product details
In the box
  • 1x HD4 MBX 5G Expansion Module
Built for
Transit agency bus fleet upgradesBroadcast truck 5G refreshRegional rail maintenance trainsMobile command vehicle refitsAirport ground operations vehicles
Specifications
SIM Options
4x Embedded Cellular Modems with Redundant SIM Slots
Weight
2.2 pounds / 1 kg
Package Content
1x HD4 MBX 5G Expansion Module
Warranty
1-Year Limited Warranty
Dimensions
0.9 x 11.5 x 3.5 inches / 22 x 292 x 88 mm
Cellular Antenna Connectors
16x QMA Antenna Connectors; 1x QMA GPS Antenna Connectors
Cellular 1 Data Rate (Downlink/Uplink)
5G: 4.1 Gbps / 900 Mbps; CAT-20: 2 Gbps / 211 Mbps
Compatibility
Expansion module for the MAX HD4 MBX; the MBX cellular module is swappable for 5G upgrades
