In stock · Ready to ship Peplink HD2 MBX Dual 5G Expansion Module
Expansion Modules

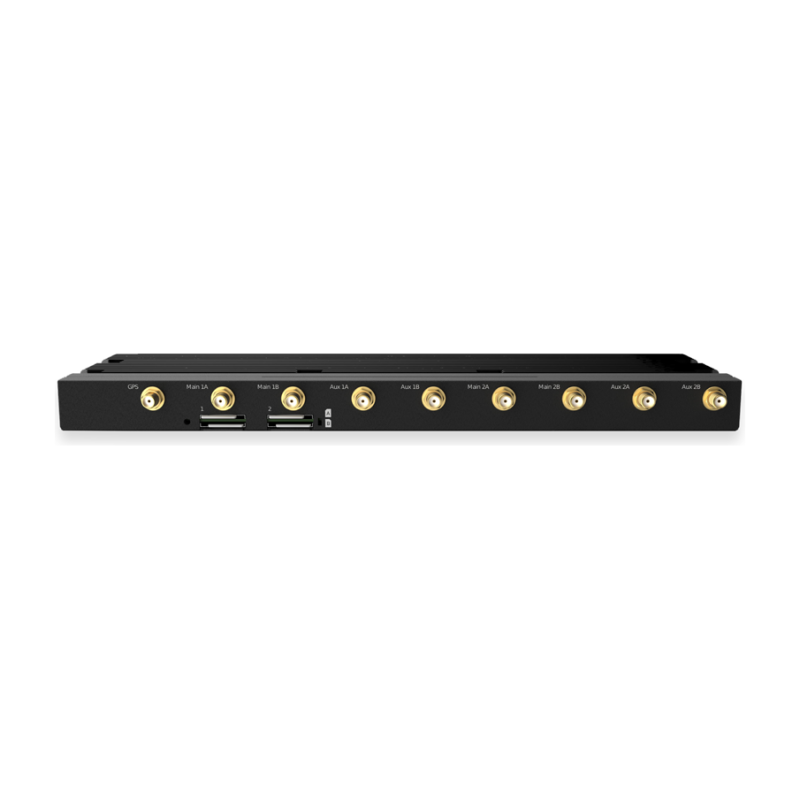

Peplink HD2 MBX Dual 5G Expansion Module

Pricing on sign-up

Pricing for Peplink HD2 MBX Dual 5G Expansion Module is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales

Two-modem 5G expansion module that upgrades an LTE HD2 MBX to 5G without replacing the chassis.

SKU: EXM-MBX-T2-5GH
Overview

An HD2 MBX running CAT-12 or CAT-18 modems can move to 5G in place, keeping its installed wiring and licensing.

The Peplink HD2 MBX 5G Expansion Module carries two 5G modems with redundant SIM slots, rated 3.4 Gbps downlink and 900 Mbps uplink on 5G and 1.6 Gbps on LTE CAT-20. It weighs 1 kg at 22 x 292 x 88 mm and ships without antennas.

EssentialCare plans cover the module, and the same swap procedure applies as on the HD4 MBX.

Product details
In the box
  • 1x HD2 MBX 5G Expansion Module
Built for
Paratransit vehicle refitsCoach and charter bus operatorsUtility mobile substationsPublic works fleet upgradesMarine patrol boat refits
Specifications
SIM Options
2x Embedded Cellular Modems with Redundant SIM Slots
Weight
2.2 pounds / 1 kg
Package Content
1x HD2 MBX 5G Expansion Module
Warranty
1-Year Limited Warranty
Dimensions
0.9 x 11.5 x 3.5 inches / 22 x 292 x 88 mm
Cellular Antenna Connectors
8x SMA Antenna Connectors; 1x SMA GPS Antenna Connectors
Cellular 1 Data Rate (Downlink/Uplink)
5G: 3.4 Gbps / 900 Mbps; CAT-20: 1.6 Gbps / 200 Mbps
Compatibility
Expansion module for the MAX HD2 MBX; the MBX cellular module is swappable for 5G upgrades
