In stock · Ready to ship Peplink MAX Adapter LTE Cellular Modem (FirstNet Capable)
Cellular Adapters

Peplink MAX Adapter LTE Cellular Modem (FirstNet Capable)

$199.00per unit
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

LTE modem that adds a cellular WAN to any router over Ethernet or USB-C, in CAT-4 and CAT-12 models with GPS.

SKU: MAX-ADP-LTE
Model
Additional Warranty*
Plan
Connectivity Plans

Billed monthly, separately from this order, once the plan is activated. Nothing is charged for it at checkout.

Software Licences
Quantity
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Many sites already run a router they are not replacing. What they lack is a cellular path that plugs into it without a forklift.

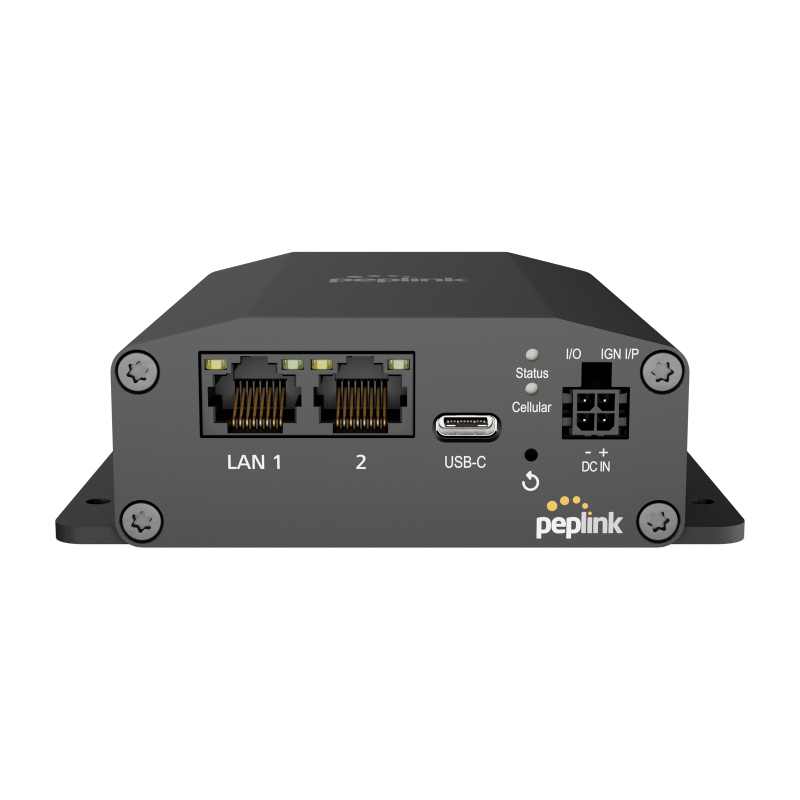

The Peplink MAX Adapter comes in two forms. The CAT-4 model for North America connects over two gigabit Ethernet ports or USB-C, with integrated GPS, GPIO, a nano-SIM slot plus built-in eSIM, and runs from 9V to 36V DC, USB-C or the included adapter, rated -30 to 65 °C. The CAT-12 Global model is a USB-C modem with redundant SIM slots and eSIM, 600 Mbps downlink, rated 0 to 40 °C.

Both carry Peplink care plans and InControl management, and the CAT-4 model is certified for AT&T, T-Mobile, Verizon and FirstNet.

Product details
In the box
  • CAT-4:
  • 1x MAX Adapter
  • 1x 12V 2A 4-pin power supply
  • 1x GPS active antenna
  • 2x indoor wideband cellular antennas (ACW-234)
  • 1GB Peplink eSIM Data Plan
  • CAT-6 / CAT-12:
  • MAX Adapter
  • 2x LTE Antennas (ACW-813)
  • USB-C Female to USB-A Male Adapter
  • USB-C Power Cable
Built for
Alarm and fire panel monitoringDigital signage in transit sheltersElevator emergency phone linesPoint-of-sale backup for chain storesRemote weather and air quality stations
Specifications
Enclosure
CAT-4: Compact, Indoor Metal; Metal, ventless case
LAN Interface
CAT-4: 2x 10/100/1000M Ethernet plus USB-C LAN via RNDIS driver CAT-6 / CAT-12: USB-C (compatible with all Peplink devices with a USB WAN port; Windows and Linux)
SIM Options
CAT-4: Nano-SIM (4FF), Peplink eSIM, or BYO eSIM (single profile); 1 SIM slot; Built-in eSIM + Physical Nano-SIM slot CAT-6 / CAT-12: Redundant SIM Slot: Yes; two SIM slots and an eSIM
Power Input
CAT-4: AC adapter (100V–240V to 12V), 9V–36V DC direct input, or USB-C 5V 2A CAT-6 / CAT-12: 5V USB-C
Power Consumption
CAT-4: 2.2W (nominal), 5.7W (max.) CAT-6 / CAT-12: 5W (nominal), 8W (max.)
Weight
CAT-4: 0.78 pounds / 355 grams CAT-6 / CAT-12: 120g (0.26 lbs)
Humidity
15% – 95% (non-condensing)
Certifications
CAT-4: FCC, CE, RoHS; EN 61000 Electromagnetic Compatibility CAT-6 / CAT-12: FCC, CE, IC
Warranty
1-Year Limited Warranty
Dimensions
CAT-4: 5.0 x 4.2 x 1.4 inches / 125.7 x 107 x 35 mm CAT-6 / CAT-12: 3.9 x 2.8 x 0.7 inches / 100 x 71 x 18.4 mm
Cellular Antenna Connectors
CAT-4: 2x SMA Cellular Antenna Connectors; 1x SMA GPS Antenna Connector CAT-6 / CAT-12: 2x SMA Cellular, 1x SMA GPS
GPS Antenna Connector
CAT-4: Yes (Integrated GPS) CAT-6 / CAT-12: Yes (ACW-232 antenna available)
Cellular 1 Data Rate (Downlink/Uplink)
CAT-4 (MAX-ADP-LTE-US-T-PRM / -EU-T-PRM): CAT-4: 150 Mbps/50 Mbps CAT-6 (MAX-ADP-LTEA-W-T): CAT-6: 300Mbps / 50Mbps CAT-12 (MAX-ADP-LTEA-K-T / -R-T): CAT-12: 600 Mbps / 150 Mbps
Operating Temperature
CAT-4: -22° – 149°F / -30° – 65°C CAT-6 / CAT-12: 32° – 104°F / 0° – 40°C
Compatibility
MAX-ADP-LTE-US-T-PRM: AT&T, T-Mobile, Verizon, FirstNet
Other
Peplink documents two different MAX Adapter hardware lines under the same name: (A) the current MAX Adapter CAT-4 (MAX-ADP-LTE-US-T-PRM / -EU-T-PRM; product page + peplink_max_adapter_datasheet.pdf + compare/tech-specs/max-adapter.pdf) and (B) the USB-C MAX Adapter LTE CAT-6/CAT-12 (MAX-ADP-LTEA-W-T / -K-T / -R-T; max_adapter_lte_5g_datasheet.pdf). Values are labeled by configuration.
Package Content
CAT-4: 1x MAX Adapter, 1x 12V 2A 4-pin power supply, 1x GPS active antenna, 2x indoor wideband cellular antennas (ACW-234); 1GB Peplink eSIM Data Plan CAT-6 / CAT-12: MAX Adapter, 2x LTE Antennas (ACW-813), USB-C Female to USB-A Male Adapter, USB-C Power Cable
