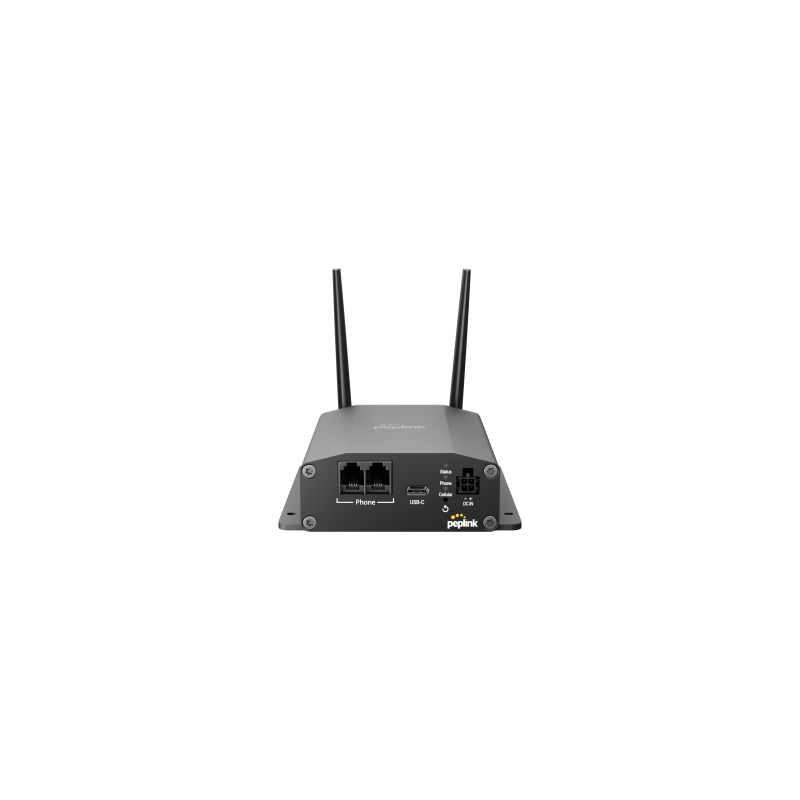

In stock · Ready to ship Peplink POTS Adapter LTE (FirstNet Capable)

Cellular Adapters

Peplink POTS Adapter LTE (FirstNet Capable)

$299.00per unit

AT&T

Industrial LTE adapter with two RJ-11 ports that replaces a copper phone line for alarm panels, elevators and fax, managed from InControl.

SKU: POTS-ADP-LTE-US-T-PRM

Additional Warranty*

Plan

Connectivity Plans

Billed monthly, separately from this order, once the plan is activated. Nothing is charged for it at checkout.

No data plan

250 MB Multi-Carrier Data Plan

Multi-carrier cellular data plan for this device. Data used beyond the plan is billed at $0.022 per MB.

$5.99/monthAC.60.P.250

500 MB Multi-Carrier Data Plan

Multi-carrier cellular data plan for this device. Data used beyond the plan is billed at $0.022 per MB.

$9.99/monthAC.60.P.500

Quantity

Pairs with

Complete your build with compatible devices

Add to bundle

Antennas

Peplink Mobility 20G 2x2 MIMO 5G/LTE and GPS Antenna

Low-profile 2x2 MIMO 5G-ready cellular antenna with GPS, 600 to 6000 MHz, IP68, 6.5 ft SMA leads, in black or white.
More details

From $199.00

View available accessories

0 selected · $0.00

Overview

Copper phone lines are being retired, and the alarm panel, elevator phone or fax machine that depended on one still has to work.

The Peplink POTS Adapter carries one LTE CAT-4 modem with SIM and eSIM support and two RJ-11 phone ports, driving up to 3 REN of line load at 55 Vrms ring voltage over loops to 500 feet. It runs from 9V to 16V DC or USB-C, rated -30 to 65 °C, in a 320-gram unit.

InControl manages it remotely, and it is certified for AT&T, T-Mobile, Verizon and FirstNet. Two LTE antennas and the power supply ship in the box.

Product details

In the box

1x POTS Adapter
2x LTE Antennas
1x 12V 2A 4-Pin Power Supply (ACW-632)

Built for

Elevator emergency phonesFire alarm communicator panelsGate and intercom call boxesLegacy fax lines in clinics and courtsUtility substation dial-up telemetry

Specifications

WAN Interface: 1x LTE Embedded Cellular Modem
SIM Options: 1x SIM (supports standard, eSIM, or BYO eSIM)
Antenna Connectors: 2x SMA Cellular
Power Input: Power Port: 9-16V DC; USB-C Port: 5V DC (USB-C or 4-pin Molex connector)
Power Consumption: 1.7W (nominal), 3.5W (max.)
Weight: 0.70 lbs / 0.32 kg
Humidity: 15% – 90% (non-condensing)
Certifications: FCC, RoHS, UL
Package Content: 1x POTS Adapter, 2x LTE Antennas, 1x 12V 2A 4-Pin Power Supply (ACW-632)
Warranty: 1-Year Limited Warranty
Dimensions: 5.0 x 4.2 x 1.4 inches / 124 x 107 x 35 mm
Cellular Antenna Connectors: 2x SMA Cellular Antenna Connectors
Cellular 1 Data Rate (Downlink/Uplink): 1x LTE Embedded Cellular Modem (CAT-4)
High Availability: 3000 mAh UPS with 24-hour standby or 4-hour line usage
Operating Temperature: -22° – 149°F / -30° – 65°C
Compatibility: POTS-ADP-LTE-US-T-PRM: AT&T, T-Mobile, FirstNet, Verizon
Other Ports: 6-Pin RJ11 Ports For Phone Line (POTS)
Configuration Interface: USB-C Port
POTS Line: 6-Pin RJ11 ports for phone line (POTS); up to 3 REN line load; 55 Vrms ring voltage; 500ft loop length support
Voice Features: Audio notifications, Call Forwarding (CFU/CFB/CFNRy/CFNRc), Call Hold, Call Waiting, 3-Way Conference, CLIR per Call, Speed Dial 8/30, Call Return, Call Blocking, Do Not Disturb, Caller ID, VMWI, DTME
Communication Protocols: Contact ID, Pulse 4/2; Voice: G.711, G.729, AMR, AMR-WB; Fax: ITU-T.30, V.17, V.29, V.27ter, V.21
Backup Power by UPS: 3000 mAh UPS ensures 24 hours standby usage / 4 hours under line usage (UPS not included)
