In stock · Ready to ship Peplink SD Switch 8-Port 10G PoE++ with 4x SFP+
PoE Switches

Peplink SD Switch 8-Port 10G PoE++ with 4x SFP+

$799.00per unit

Fanless 8-port 10G PoE++ switch with four 10G SFP+ uplinks and a 720W budget, managed from InControl.

SKU: PLS-8-10G-720W
Additional Warranty*
Plan
Quantity
Overview

Cameras, access points and servers that need 10G and power from the same port are usually served by a large rack switch.

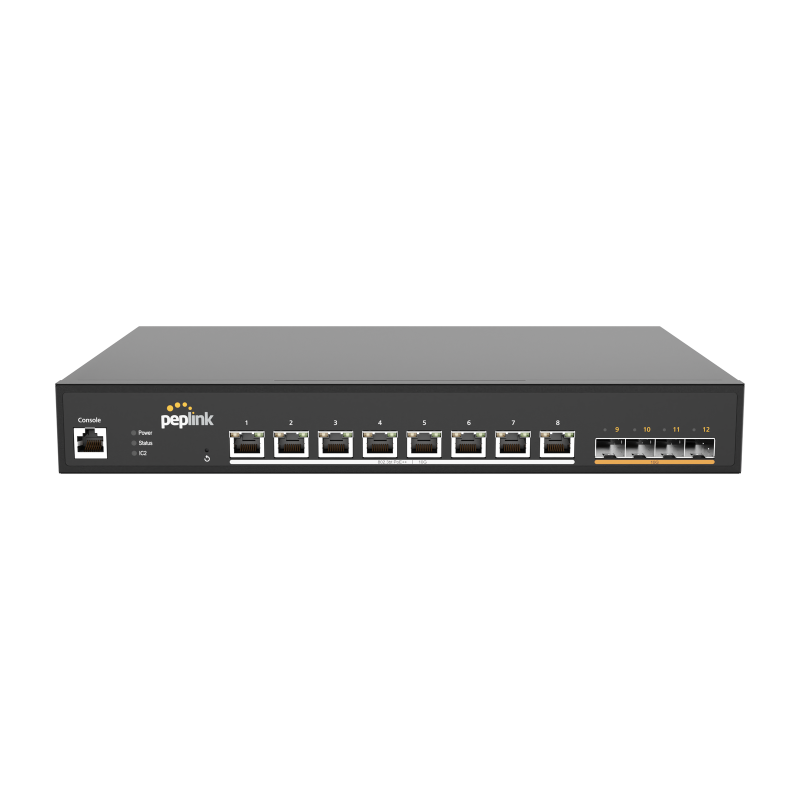

The Peplink SD Switch 8-Port 10G provides eight 10GE RJ45 ports with 802.3bt Type 4 PoE++ and four 10G SFP+ ports, on a 720W PoE budget with 240 Gbps of switching capacity and a 32,000-entry MAC table. It runs on 100 to 240V AC, rated 0 to 50 °C, in a fanless 2.9 kg chassis.

InControl 2 manages it alongside the routers, and PrimeCare A plans cover it. Mounting brackets, power cord, screws and feet ship in the box.

Product details
In the box
  • 1x Switch
  • 1x Power Cord
  • 1x Screw Set
  • 1x Rubber Foot Pad Set
  • 1 Pair of Mounting Brackets
Built for
Server room 10G aggregationSurveillance camera head-endsHospital imaging suitesBroadcast control roomsUniversity research labs
Specifications
LAN Interface
8x 10GE l 802.3bt Type 4 PoE++ RJ45 ports; 4x 10G SFP+ ports
Power Input
1x 100V – 240V AC
Power Consumption
53W (System)
Weight
6.4 pounds / 2.9 kg
Humidity
15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS
Package Content
1x 8 PoE 10G Switch | 1x Power Cord | 1x Screw Set | 1x Rubber Foot Pad Set | 1 Pair of Mounting Brackets
Warranty
1-Year Limited Warranty
Router Throughput
Switching Capacity 240 Gbps; Forwarding Rate 179 Mpps; MAC Address Table 32,000
Dimensions
9.1 x 13.0 x 1.8 inches / 230 x 330 x 44 mm
PoE Output
802.3bt Type 4 PoE++; Total PoE Power Budget 720W
Operating Temperature
32° – 122°F / 0° – 50°C
Serial
Console Port
