In stock · Ready to ship Peplink SD Switch 48-Port 2.5G PoE+
PoE Switches

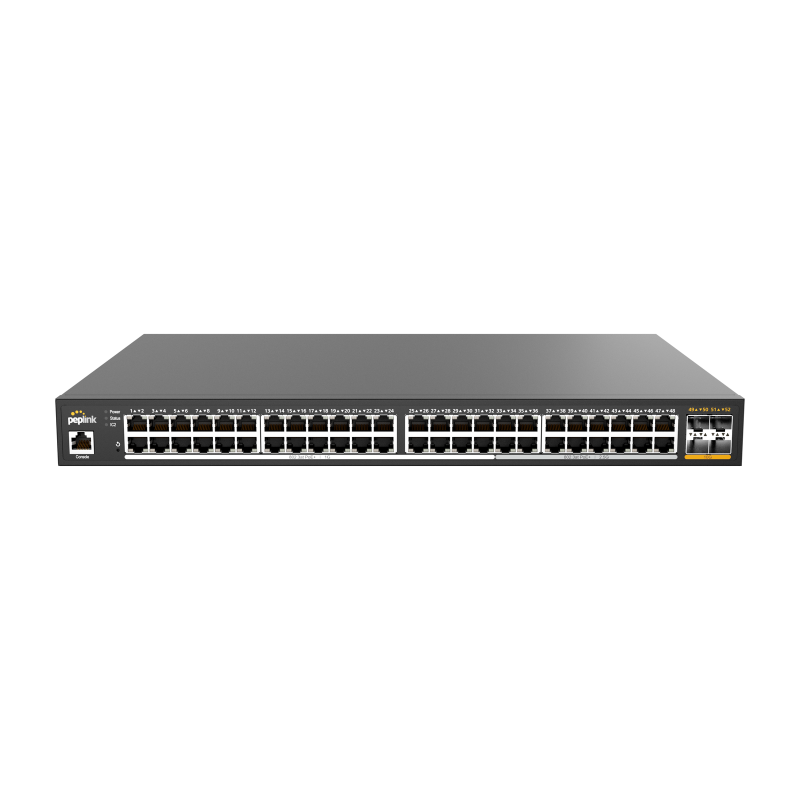

Peplink SD Switch 48-Port 2.5G PoE+

$1,199.00per unit

48-port PoE+ switch with thirty-two gigabit and sixteen 2.5G ports, four 10G SFP+ uplinks and a 740W budget for large sites.

SKU: PLS-48-H2G-740W
Additional Warranty*
Plan
Quantity
Overview

A full floor of phones, cameras and access points needs port count and PoE budget, with 2.5G where the newer access points sit.

The Peplink SD Switch 48-Port provides thirty-two gigabit and sixteen 2.5G RJ45 ports, all with 802.3at PoE+, plus four 10G SFP+ uplinks, on a 740W PoE budget with 224 Gbps of switching capacity and a 32,000-entry MAC table. It runs on 100 to 240V AC with a 900W internal supply, rated 0 to 50 °C, at 4.9 kg.

InControl 2 manages it alongside the routers, and PrimeCare B plans cover it. Mounting brackets, power cord, screws and feet ship in the box.

Product details
In the box
  • 1x Switch
  • 1x Power Cord
  • 1x Screw Set
  • 1x Rubber Foot Pad Set
  • 1 Pair of Mounting Brackets
Built for
Large office floorsHigh school and college buildingsHotel and conference floorsHospital nursing unitsDistribution center offices
Specifications
LAN Interface
32x 1GE l 802.3at PoE+ RJ45 ports; 16x 2.5GE l 802.3at PoE+ RJ45 ports; 4x 10G SFP+ ports
Power Input
1x 100V – 240V AC
Power Consumption
64W (System)
Weight
10.8 pounds / 4.9 kg
Humidity
15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS
Package Content
1x 48 PoE 2.5G Switch | 1x Power Cord | 1x Screw Set | 1x Rubber Foot Pad Set | 1 Pair of Mounting Brackets
Warranty
1-Year Limited Warranty
Router Throughput
Switching Capacity 224 Gbps; Forwarding Rate 318 Mpps; MAC Address Table 32,000
Dimensions
12.2 x 17.3 x 1.8 inches / 310 x 440 x 45 mm
PoE Output
802.3at PoE+; Total PoE Power Budget 740W
Operating Temperature
32° – 122°F / 0° – 50°C
Serial
Console Port
