In stock · Ready to ship Peplink MAX HD2 Dome Pro LR Dual 5G Outdoor Router (FirstNet Capable, T-Priority)
Outdoor Routers

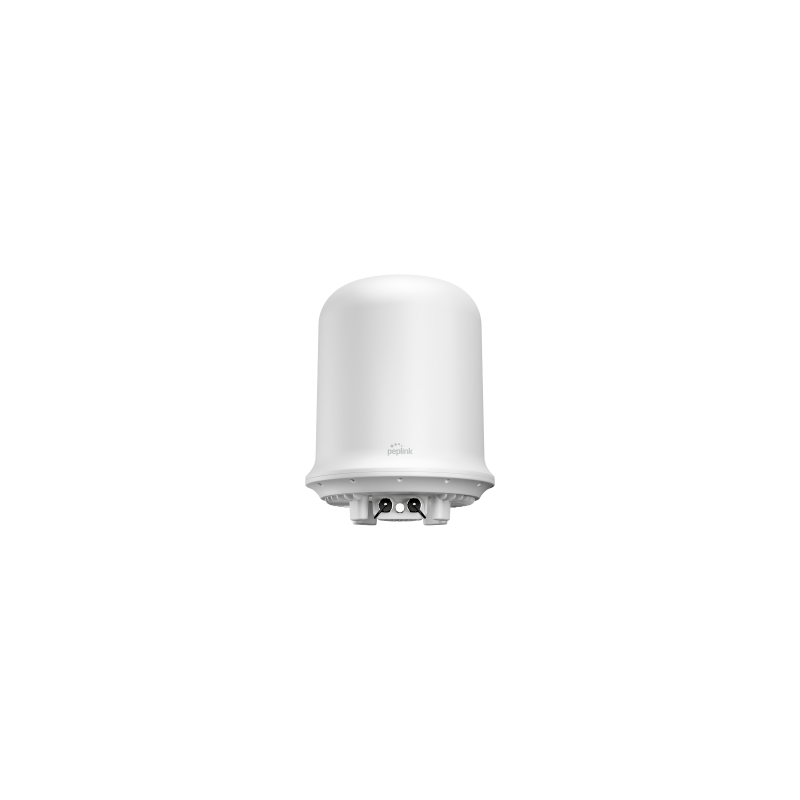

Peplink MAX HD2 Dome Pro LR Dual 5G Outdoor Router (FirstNet Capable, T-Priority)

Pricing on sign-up

Pricing for Peplink MAX HD2 Dome Pro LR Dual 5G Outdoor Router (FirstNet Capable, T-Priority) is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

Long-range IP67 dome with two 5G modems, Wi-Fi 6 and PoE power, no antenna cables, for vessels, masts and vehicles.

SKU: DOM-PRO-LR-5GN-PRM
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Vessels, tall masts and vehicles that need the most cellular reach possible lose signal in the cable run between the antenna and the router.

The Peplink MAX HD2 Dome Pro LR puts two 5G modems, eight long-range cellular antennas, two Wi-Fi antennas and GPS inside one IP67 dome, so nothing is lost to coax. It delivers 3.4 Gbps downlink per modem on 5G and 1.6 Gbps on LTE CAT-20, with four nano-SIM slots, eSIM, dual-band Wi-Fi 6, a 2.5G LAN with 802.3bt PoE input and a gigabit WAN/LAN with PoE+ output. Routing is 1 Gbps with 400 Mbps of SpeedFusion for 1 to 150 users.

It is powered over PoE at 48V to 56V, rated -40 to 65 °C, weighs 6.35 kg, and is certified for AT&T, T-Mobile, Verizon and FirstNet. It appears on both FirstNet's and T-Mobile's T-Priority device lists.

Product details
In the box
  • 1x Dome Pro LR
  • 4x M8 bolts
  • 2x Waterproof Ethernet Adapters (ACW-112)
Built for
Fireboats and harbor patrol vesselsOffshore wind service vesselsMountain lookout and repeater sitesLong-haul freight rail locomotivesCoastal emergency operations towers
Specifications
Enclosure
Outdoor IP67 metal enclosure
Antenna
8x Internal Long Range Optimized Cellular Antennas, 2x Internal Wi-Fi Antennas, 1x Internal GPS Antenna
WAN Interface
1x GE WAN/LAN with 802.3at PoE Output; max config: 1 WAN with 1 LAN, 0 WAN with 2 LAN
LAN Interface
1x 2.5GE LAN with 802.3bt PoE Input
Recommended Users
1–150
SIM Options
4 SIM slots, Nano-SIM (4FF); Peplink eSIM (firmware 8.3.0+), BYO eSIM (2 profiles per modem; firmware 8.4.0+), RemoteSIM from SIM Injector, FusionSIM
Antenna Connectors
8x Internal Long Range Optimized Cellular Antennas; 2x Internal Wi-Fi Antennas; 1x Internal GPS Antenna
Power Input
PoE: DC 48–56V; 1x 802.3at PoE+ (without PoE output) / 1x 802.3bt PoE++ (with PoE output)
Power Consumption
24 W (max., without PoE output)
Weight
14 pounds / 6.35kg (9.98kg With Packaging)
Humidity
15%–95% (non-condensing)
Certifications
FCC, CE, RoHS; EN 61000 Electromagnetic Compatibility
Package Content
1x Dome Pro LR 4x M8 bolts 2x Waterproof Ethernet Adapters (ACW-112)
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput
1Gbps
Dimensions
14.6 inches (diameter) x 18.8 inches (height) / 370 mm (diameter) x 478.5 mm (height)
Wi-Fi Interface
Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6 2x2 MU-MIMO; transmit power 21dBm (2.4GHz), 22dBm (5GHz); 16 Multiple SSIDs
AP Controller
30 / 50
Cellular Antenna Connectors
8x Internal Long Range Optimized Cellular Antennas (embedded)
GPS Antenna Connector
Yes (1x Internal GPS Antenna)
Maximum Number of APs Supported
30 / 50 (controlled AP / Switch)
PepVPN Throughput (No Encryption)
400Mbps (SpeedFusion VPN, No Encryption)
PepVPN Throughput (256-bit AES)
200Mbps (SpeedFusion VPN, 256-bit AES)
Cellular 1 Data Rate (Downlink/Uplink)
5G: 3.4 Gbps / 900 Mbps CAT-20: 1.6 Gbps / 200 Mbps
Number of PepVPN / SpeedFusion Peers
2 default; up to 5 with PrimeCare; 10/20 via software license
802.1q VLANs Supported
128
Drop-In Mode
Yes
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
1x 802.3at PoE+
Operating Temperature
-40°–149°F / -40°–65°C
Compatibility
US Carrier Certifications: AT&T, T-Mobile, Verizon (C-Band), FirstNet
Recommended PPTP/L2TP/OpenVPN Users
Max 15 remote access users
