In stock · Ready to ship Peplink MAX HD1 Dome Pro 5G Outdoor Cellular Router (FirstNet Capable, T-Priority)
Outdoor Routers

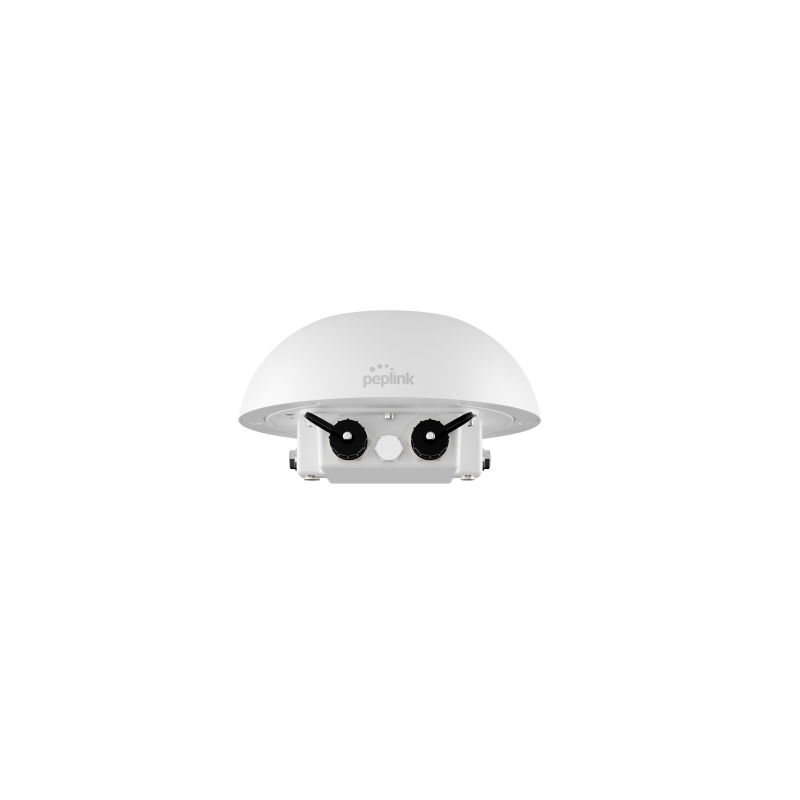

Peplink MAX HD1 Dome Pro 5G Outdoor Cellular Router (FirstNet Capable, T-Priority)

Pricing on sign-up

Pricing for Peplink MAX HD1 Dome Pro 5G Outdoor Cellular Router (FirstNet Capable, T-Priority) is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales
T-Priority FirstNet Built with AT&T Verizon Frontline AT&T

5G cellular router designed for outdoor and vehicle-roof deployments. IP67-rated dome enclosure integrates antenna and modem for weather-proof, high-gain cellular connectivity.

SKU: MAX-HD1-DOM-PRO-5GN
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Some of the hardest sites to connect have no building at all: a mast at a pump station, the roof of a vessel, a pole at a solar or wind farm. Indoor routers with external antennas add cable runs, weatherproofing and signal loss at every connector.

The Peplink MAX HD1 Dome Pro puts the 5G modem, embedded antennas and dual-band Wi-Fi 6 inside one IP67 metal dome. A single cable carries data and 802.3at PoE+ power to the dome, and the included splitter provides a LAN port with 802.3af PoE output for a device below.

Dual SIM slots, GPS and a -40 to 65 °C operating range suit ports, rail yards and agricultural operations where the router has to live outdoors year-round.

Product details
In the box
  • MAX HD1 Dome Pro
  • Ethernet Splitter
  • 2x Waterproof Ethernet Connector (ACW-112)
  • Mounting Kit Set
Built for
Rooftop & mast installsMaritime vessels & ferriesAgricultural & rural operationsRemote pump & lift stationsSolar & wind farmsPorts & rail yards
Specifications
Enclosure
Outdoor, IP67, Metal
Antenna
4x4 Internal MIMO Cellular Antennas, 2x2 Internal MIMO Wi-Fi Antennas, 1x Internal GPS Antenna
WAN Interface
1x Embedded 5G Modem with 2 SIM slots (no Ethernet WAN port)
LAN Interface
1x 10/100/1000M Ethernet; with Ethernet Splitter: 1x LAN with 802.3af PoE out, 1x LAN with 802.3at PoE+ in
Recommended Users
1-150
SIM Options
2x Nano-SIM (4FF), Peplink eSIM, BYO eSIM, RemoteSIM from SIM Injector, FusionSIM
Antenna Connectors
Embedded Antenna (cellular)
Power Input
802.3at PoE input, DC 48V-56V
Power Consumption
20W (max.)
Weight
Without Ethernet Splitter: 1.2 kg / 2.65 lb; with Ethernet Splitter: 1.7 kg / 3.75 lb
Humidity
15%-95% (non-condensing)
Certifications
FCC, CE, RoHS, EN 50124-1 Railway Insulation Coordination, EN 50155 Railway Rolling Stock Electronic Equipment, EN 61000 EMC (TAA Compliant per cover)
Package Content
1x HD1 Dome Pro; 1x Ethernet Splitter; 2x Waterproof Ethernet Connector (ACW-112); 1x Mounting Kit Set
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Dimensions
4.33 in (radius) x 4.53 in (height) / 110 mm (radius) x 115 mm (height)
Wi-Fi Interface
Dual-band (2.4GHz / 5GHz) Wi-Fi 6, 2x2 MIMO, 16 SSIDs
AP Controller
Yes (max. 30 APs / 50 switches)
Edge Computing
No
Cellular Antenna Connectors
Embedded Antenna
GPS Antenna Connector
GPS: Yes
Maximum Number of APs Supported
30
PepVPN Throughput (No Encryption)
400 Mbps
PepVPN Throughput (256-bit AES)
200 Mbps
Cellular 1 Data Rate (Downlink/Uplink)
5G: 3.4 Gbps / 900 Mbps
Number of PepVPN / SpeedFusion Peers
3 or 10 or 20
802.1q VLANs Supported
128
Drop-In Mode
No
High Availability
Yes
Number of IPsec Tunnels
5
PoE Output
1x 802.3af PoE (with Ethernet Splitter)
Operating Temperature
-40 to 149 F / -40 to 65 C
Compatibility
5GH and 5GN models: AT&T, T-Mobile, Verizon, FirstNet (US carrier certifications); 5GD model: not US carrier certified. T-Priority: 5GN model
Serial
No
Recommended PPTP/L2TP/OpenVPN Users
15
Cellular WAN Interface
1x Embedded 5G Modem with 2 SIM slots
