In stock · Ready to ship Peplink AP One Rugged Wi-Fi 5 Access Point
Outdoor Access Points

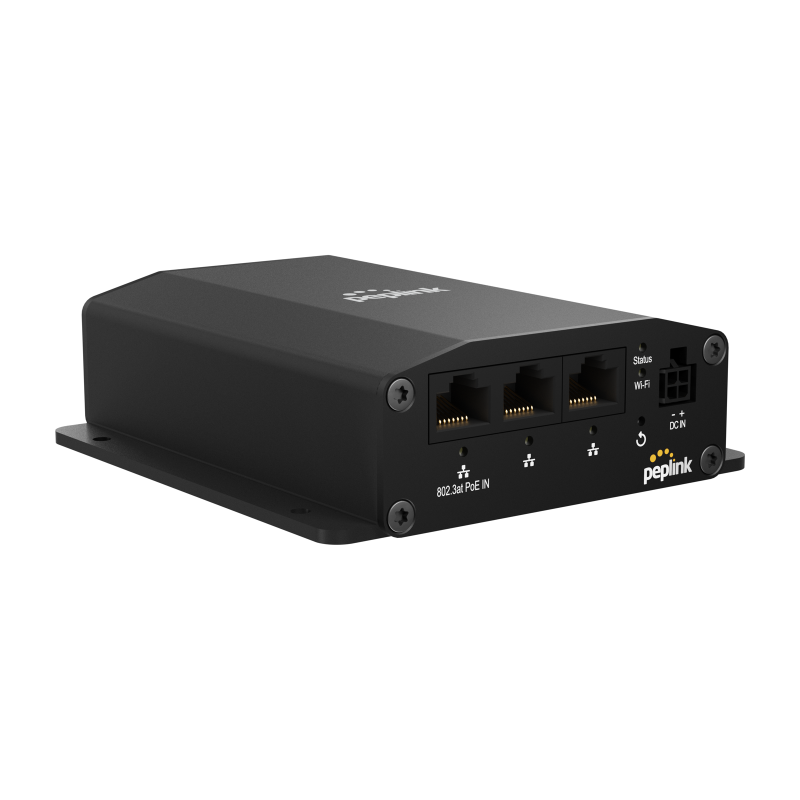

Peplink AP One Rugged Wi-Fi 5 Access Point

$299.00per unit

Dual-band Wi-Fi 5 access point rated -40 to 65 °C, shock and vibration resistant, with three gigabit ports and PoE or DC power.

SKU: APO-AC-RUG
Additional Warranty*
Plan
Software Licences
Quantity
Pairs with

Complete your build with compatible devices

View available accessories
0 selected · $0.00
Overview

Wi-Fi in a warehouse, a bus or an outdoor cabinet fails when an office-grade access point meets heat, cold and vibration.

The Peplink AP One Rugged delivers dual-band Wi-Fi 5 with 2x2 MIMO, up to 866 Mbps on 5 GHz for 60 concurrent users and 16 SSIDs, through two RP-SMA antennas. Three gigabit Ethernet ports carry traffic, one accepting 802.3at PoE input, and it also runs from 10V to 30V DC on an industrial connector.

The ruggedized metal case is rated -40 to 65 °C and mounts on a DIN rail, with bridge, router, mesh and WDS modes managed from InControl 2. Two antennas and a 12V supply ship in the box.

Product details
In the box
  • 1x AP One Rugged
  • 1x 12V 2A Power Supply
  • 2x Wi-Fi Antennas
Built for
Cold storage warehousesTransit vehicle passenger Wi-FiOutdoor equipment cabinetsManufacturing shop floorsLoading docks and truck courts
Specifications
Enclosure
Ruggedized Metal
LAN Interface
3x 10/100/1000M Ethernet (1x Ethernet Port with 802.3at PoE Input)
Antenna Connectors
2x RP-SMA Wi-Fi Antenna connectors; External Omni Directional Antennas: 2x 3dBi - 2.4GHz, 2x 3dBi - 5GHz
Power Input
10V - 30V DC; 802.3at PoE; Industrial microfit connector option
Power Consumption
13w (max.)
Weight
0.8 pounds / 365 grams
Humidity
15% – 95% (non-condensing)
Certifications
FCC, CE, IC, E-Mark, RoHS; Railway Certification: EN 50155, EN 50121-3-2, EN 50121-4; Vibration and Shock: EN 61373; TAA Compliant
Package Content
AP One Rugged, 1 x 12V2A Power Supply (ACW-632), 2 x Dual Band Wi-Fi Antennas (ACW-342)
Warranty
1-Year Limited Warranty
Dimensions
4.8 x 4.2 x 1.4 inches / 122.1 x 107 x 35 mm
Wi-Fi Interface
Wi-Fi 5 2X2 MIMO; Simultaneous Dual-Band (2.4GHz / 5GHz); 2.4 GHz: up to 300Mbps; 5 GHz: up to 866Mbps; Channel width 20/40/80 MHz; Transmit power 2.4GHz: 17dBm, 5GHz: 17dBm; Max concurrent users: 60; SSIDs: 16
AP Controller
Web Administrative Interface; InControl Cloud Management; Peplink AP Controller; SNMP v1, v2c and v3
Maximum Number of APs Supported
Web Administrative Interface; InControl Cloud Management; Peplink AP Controller; SNMP v1, v2c and v3
802.1q VLANs Supported
Management VLAN; VLAN with QoS (802.1p/802.1q); VLAN with RADIUS
Operating Temperature
-40° – 149° F / -40° – 65° C
Other
Operating modes: Bridge Mode, Router (NAT) Mode, Mesh, Wireless Distribution System (WDS). Security: Open, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise. Client Management Per SSID, MAC Address Filtering, Layer 2 Client Isolation, Captive Portal by InControl. Mounting: DIN rail mount system (wall, pole or ceiling).
