In stock · Ready to ship Peplink SD Switch 24-Port 2.5G PoE+ Rugged
Rugged Switches

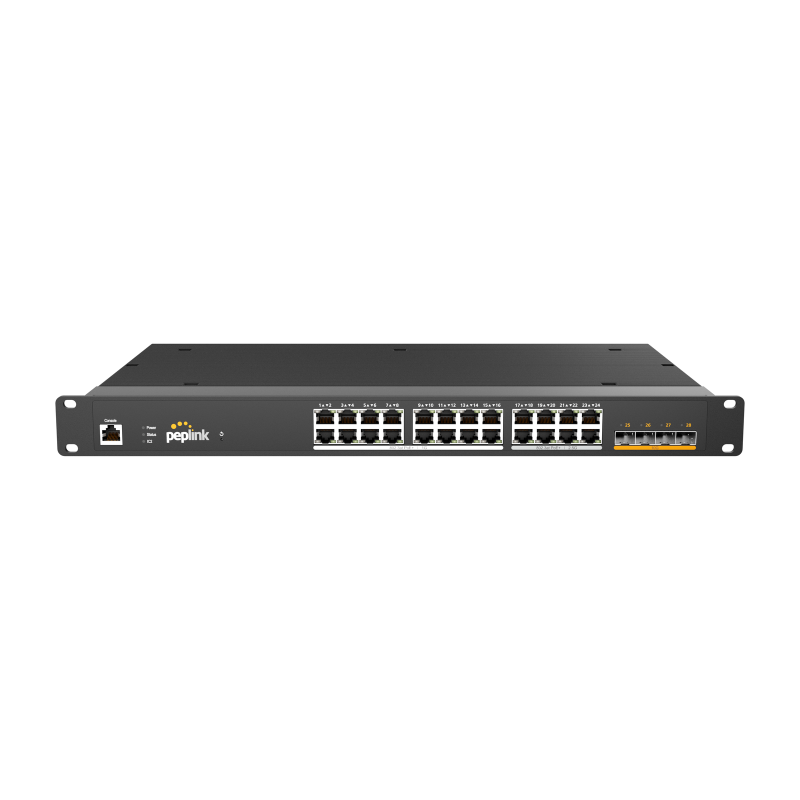

Peplink SD Switch 24-Port 2.5G PoE+ Rugged

$1,199.00per unit

Fanless rugged 24-port PoE+ switch rated -40 to 65 °C with 2.5G ports, four 10G SFP+ uplinks, DC power and a 250W budget.

SKU: PLS-R-24-H2G-250W
Additional Warranty*
Plan
Quantity
Overview

Switches in traffic cabinets, plant rooms and outdoor enclosures see temperatures and dust an office switch is not built for.

The Peplink SD Switch 24-Port Rugged provides sixteen gigabit and eight 2.5G RJ45 ports with 802.3at PoE+ and four 10G SFP+ uplinks, on a 250W PoE budget with 152 Gbps of switching capacity. It runs from dual 54V DIN inputs or a 12V to 54V terminal block, with a 300W supply included, rated -40 to 65 °C in a fanless 5.1 kg chassis.

InControl 2 manages it alongside the routers, and PrimeCare B plans cover it.

Product details
In the box
  • 1x Switch
  • 1x Power Cord
  • 1x 300W Power Supply
  • 1x Screw Set
  • 1x Rubber Foot Pad Set
Built for
Traffic management cabinetsIndustrial control roomsOutdoor venue equipment enclosuresTransit maintenance facilitiesWastewater plant electrical rooms
Specifications
Enclosure
Rugged enclosure with a fanless design
LAN Interface
16x 1GE Ports (802.3at PoE+); 8x 2.5GE Ports (802.3at PoE+); 4x 10G SFP+ Ports
Power Input
2x Power DIN: 54V DC; 1x Terminal Block: 12V - 54V DC (1x 300W PSU included)
Power Consumption
38W (System)
Weight
11.3 pounds / 5.1 kg
Humidity
15% - 95% (non-condensing)
Certifications
FCC, CE, RoHS
Package Content
1x 24 PoE 2.5G Switch Rugged | 1x Power Cord | 1x 300W PSU | 1x Screw Set | 1x Rubber Foot Pad Set
Warranty
1-Year Limited Warranty
Router Throughput
Switching Capacity 152 Gbps; Forwarding Rate 216 Mpps; MAC Address Table 16,000
Dimensions
10.5 x 19.1 x 1.8 inches / 265 x 485 x 45 mm
PoE Output
802.3at PoE+; Total PoE Power Budget 250W
Operating Temperature
-40° – 149°F / -40° – 65°C
Serial
Console Port
