In stock · Ready to ship Peplink PDX Dual 5G Rugged Portable Router (FirstNet Capable)
Cellular Routers

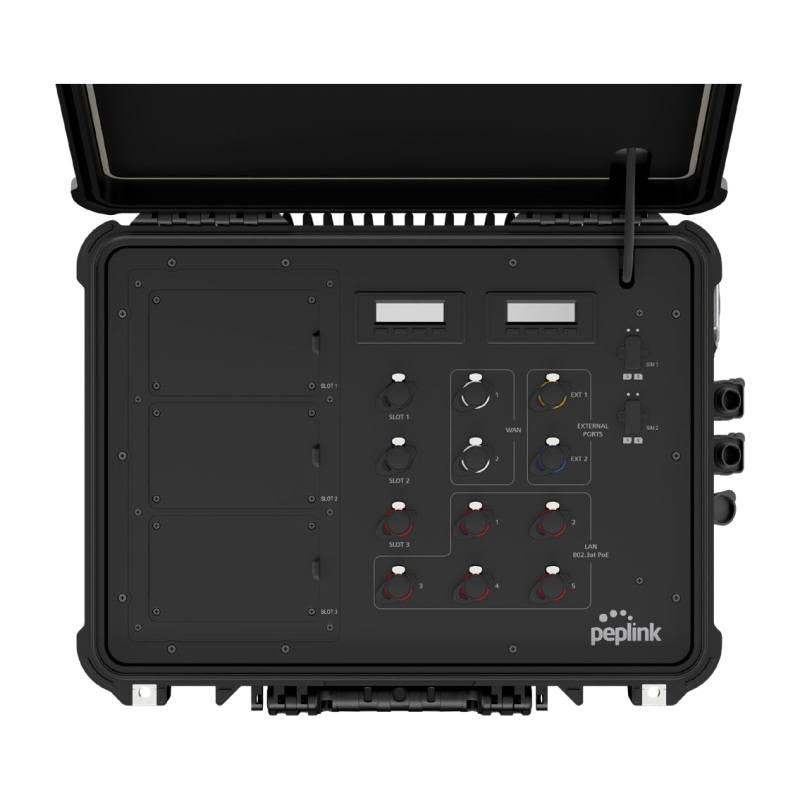

Peplink PDX Dual 5G Rugged Portable Router (FirstNet Capable)

Pricing on sign-up

Pricing for Peplink PDX Dual 5G Rugged Portable Router (FirstNet Capable) is available to Paygasus customers.

Create a free account to unlock pricing, configure connectivity, and add this device to your cart. Takes under a minute — no payment details required.

Sign up to unlock pricing Talk to sales

Ruggedized rapid-deployment cellular powerhouse with dual 5G modems for the Americas. Provides portable, unbreakable connectivity for emergency response and field operations.

SKU: PDX-5GH-T
Overview

Disaster shelters, temporary field hospitals, wildfire camps and polling places open before any wired circuit can be installed. They still need a full site network on day one, with cameras, access points, laptops and ticketing devices running from one place.

The Peplink PDX 5G packs two 5G modems with redundant SIM slots and seven gigabit Ethernet ports, including 802.3at PoE output, into a ruggedized enclosure with dual-band Wi-Fi 5 and internal GPS. Router throughput reaches 2.5 Gbps.

The unit is rated MIL-STD-810H and IP55, and runs on AC, 12V to 56V DC, or an optional 98Wh battery kit. It operates from -40 to 45 °C, so it can be staged at outdoor festivals, gate lanes and incident camps.

Product details
In the box
  • 1x PDX 5G
  • 1x Special Power Cord for PDX (ACW-645)
  • 1x Special Car Plug for PDX
Built for
Disaster recovery & sheltersTemporary polling placesTemporary field hospitalsWildfire incident campsOutdoor festivals & fairsTemporary ticketing & gate lanes
Specifications
Enclosure
Ruggedized, IP55/6X, MIL-STD-810H, 7.7G vibration resistance
WAN Interface
2x 10/100/1000M Ethernet, 2x LAN/WAN external ports, 2x Embedded 5G Modems with Redundant SIM Slots (5GN model: 5G NSA and SA)
LAN Interface
7x 10/100/1000M Ethernet with 802.3at PoE output, plus 2x LAN/WAN external ports
Recommended Users
50-500
SIM Options
Mini-SIM (2FF) with redundant SIM slots per modem, Peplink eSIM, BYO eSIM (2 profiles per modem), RemoteSIM from SIM Injector, FusionSIM
Antenna Connectors
8x Internal Cellular Antennas, 4x Internal Wi-Fi Antennas, 1x Internal GPS Antenna
Power Input
AC: 100V-240V; DC: 12V-56V; optional PDX Battery Kit (98Wh, 14.4V)
Power Consumption
38W (max., without PoE)
Weight
15.7 kg / 34.61 lb
Humidity
15%-95% (non-condensing)
Certifications
FCC, CE, IC
Package Content
1x PDX 5G; 1x Special Power Cord for PDX (ACW-645); 1x Special Car Plug for PDX
Warranty
1-Year Limited Warranty
SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
Router Throughput
2.5 Gbps
Dimensions
19.8 x 15.8 x 7.4 in / 502 x 401 x 188 mm
Wi-Fi Interface
Simultaneous Dual-band (2.4GHz / 5GHz) Wi-Fi 5, 2x2 MIMO, Wi-Fi WAN and/or AP
Cellular Antenna Connectors
Internal (8x)
GPS Antenna Connector
Internal GPS Antenna
PepVPN Throughput (No Encryption)
600 Mbps
PepVPN Throughput (256-bit AES)
500 Mbps
Cellular 1 Data Rate (Downlink/Uplink)
5G: 3.4 Gbps / 900 Mbps; LTE CAT-20: 2 Gbps / 211 Mbps
Number of PepVPN / SpeedFusion Peers
3 / 20
PoE Output
Up to 7x 802.3at PoE, 4x USB power output
Operating Temperature
-40 to 113 F / -40 to 45 C
Compatibility
FirstNet Capable (FirstNet Approved Devices list, PDX entry covers PDX-LTEA-R-T and PDX-5GH-T)
Other Ports
1x USB 2.0 with power output
Cellular WAN Interface
2x Embedded 5G Modems with Redundant SIM Slots
