MAX BR1 IP67

Rugged outdoor router for reliable cellular connectivity in harsh environments.

Use Cases

Data Overage Protection icon illustration

Data Overage Protection

Automatically switch between dual SIM cards to avoid costly data overages and maintain service across carriers or cross-border operations.

Temporary Connectivity and Pop-up Sites icon illustration

Track Mobile Assets

Real-time GPS tracking for fleet vehicles, construction equipment, and trailers without separate hardware.

Cellular Coverage Extension icon illustration

Remote Sites & Monitoring

Deploy weatherproof internet in minutes for construction sites, outdoor events, security cameras, and IoT devices.

Topology

Network topology diagram showing BR1 IP67 router connecting cellular signal to internal network via PoE cable

The BR1 IP67 captures cellular signal outdoors and delivers connectivity to indoor networks via a single PoE cable, which supplies both power and data. A PoE switch then distributes the connection to multiple client devices throughout the building.

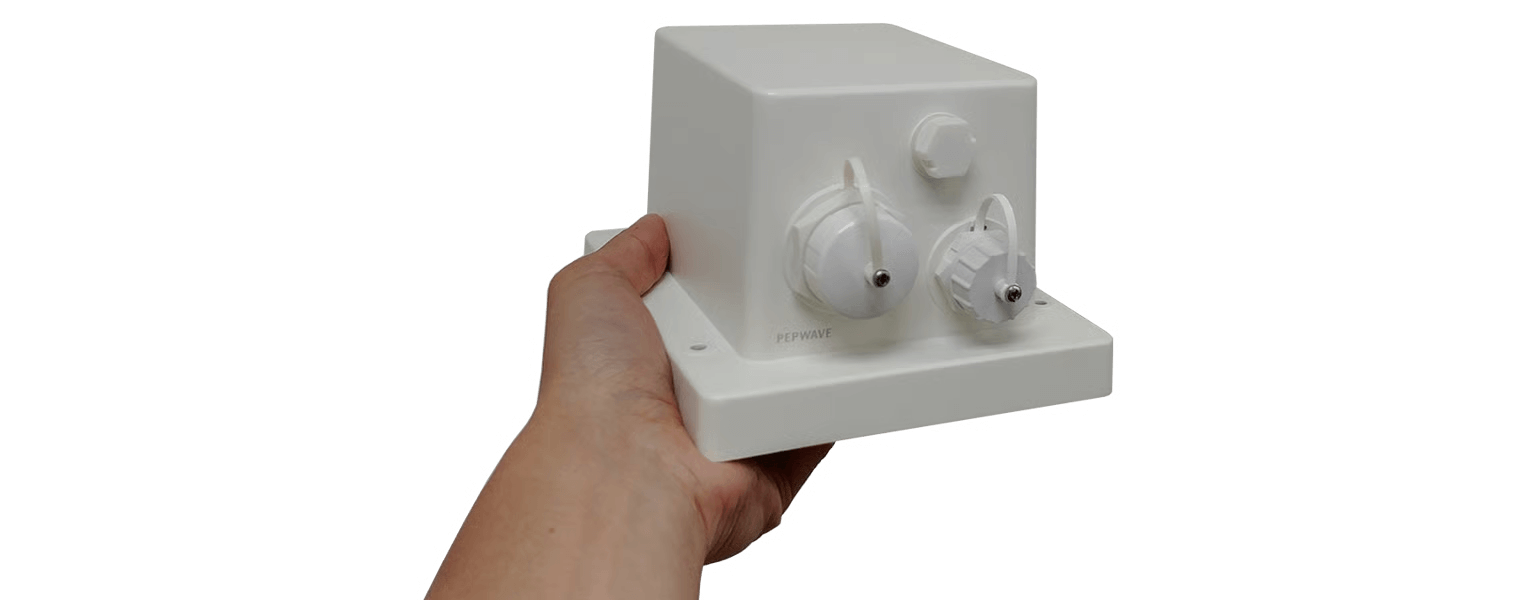

MAX BR1 IP67 compact super-duty IP67 waterproof enclosure outdoor router

Industrial-Grade Protection

Reduce equipment failures and downtime with a router engineered for extreme conditions. Operates reliably in temperatures from -40° to 149°F where standard routers fail.

Dust protection icon

IP67-Rated Seal

Complete protection against dust ingress and water immersion up to 1 meter ensures reliable operation in rain, snow, mud, and wash-down environments.

Waterproof icon

Lightning Immunity

Built-in surge protection guards against electrical spikes and lightning strikes, reducing equipment failures and replacement costs in exposed installations.​

Lightning immune protection icon

Vibration Resistance

Solid-state design with no moving parts withstands constant vibration on vehicles and heavy equipment without performance degradation.

Connectivity Features

PoE-Powered Deployment

802.3af Power over Ethernet enables single-cable installation for both power and data, simplifying outdoor and vehicle deployments. An 802.3af PoE injector is available separately when PoE-enabled switches are not present.

Dual SIM Slots with Failover

Dual SIM slots with automatic failover maintain connectivity when one carrier loses signal and can switch SIMs automatically to avoid data overages or enable seamless cross-border roaming without manual swaps.​

SpeedFusion Hot Failover

Automatically shifts traffic between Wi-Fi and cellular WAN during outages or degradation, preserving live sessions so VoIP calls, video streams, and payment transactions continue without interruption.

Fleet Tracking & Cloud Management

Built-in GPS provides real-time location tracking for fleet management, geofencing, and route optimization, while InControl 2 enables remote monitoring, configuration updates, and firmware management from any internet-connected device.

Customer Engagement Platform

Paygasus Connect Integration

As part of the Paygasus Connect platform, MAX BR1 IP67 delivers ruggedized, managed connectivity for outdoor payment terminals, transit shelters, remote kiosks, and mobile assets. The solution combines industrial-grade hardware with centralized cloud management to keep outdoor operations online in any weather, anywhere you deploy.

Captive Portal Interface
Device Rear Angled View
