Peplink MAX BR1 Pro 5G Router
MAX BR1 Pro 5G is a single 5G router platform for fixed sites and mobile operations. Deployed across branch locations, fleets, public safety vehicles, payment kiosks, and industrial edge systems, it brings 5G, Wi-Fi 6, and centralized management into a low profile form factor that fits standard Paygasus Connect designs.
Up to 8x Faster Than BR1 Classic
When traffic surges, responsiveness matters. MAX BR1 Pro 5G pairs a new generation multi-core CPU with 5G to deliver gigabit-class throughput for fixed and mobile deployments. Compared to the original BR1 Classic, MAX BR1 Pro 5G can achieve up to eight times the performance so sites and field systems stay responsive when traffic spikes.
Go Beyond Connectivity: Deploy the Full 5G Suite
5G Adapter
For deployments that require only cellular backhaul, MAX BR1 Pro 5G can operate as a dedicated 5G WAN and connect to an existing firewall or SD-WAN edge, enabling 5G connectivity without replacing core network infrastructure or changing established security policies.
5G Router / Gateway
MAX BR1 Pro 5G also deploys as a primary 5G router or secure gateway. With support for C-Band 5G and LTE, managed cellular connectivity can be extended to branch offices, retail locations, and remote assets through a single management platform.
Fixed or Mobile
MAX BR1 Pro 5G supports both fixed-site installations and mobile deployments for fleets and public safety vehicles. Multiple WAN options help maintain continuity for voice, video, POS transactions , and telemetry as connectivity conditions change.
Wi-Fi 6
Integrated Wi-Fi 6 helps reduce interference and increase capacity for high-density environments. Edge connectivity is optimized for staff devices, tablets, IoT sensors, and payment terminals without compromising overall performance.
Deploy with Confidence
Building on the BR1 Classic, MAX BR1 Pro 5G supports standardization across retail, transportation, public safety, and industrial edge deployments, while configuration, monitoring, and support stay aligned through Paygasus Connect.

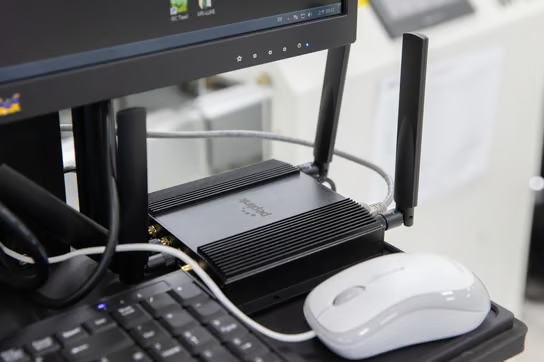

Low-Profile Form Factor
At only 1.15 inches in height, MAX BR1 Pro 5G is approximately 25 percent slimmer than BR1 Classic. The compact design fits cabinets, kiosks, vehicles, and control panels while preserving access for service and cable management.

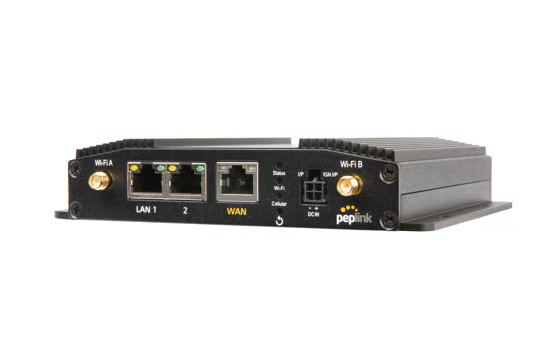

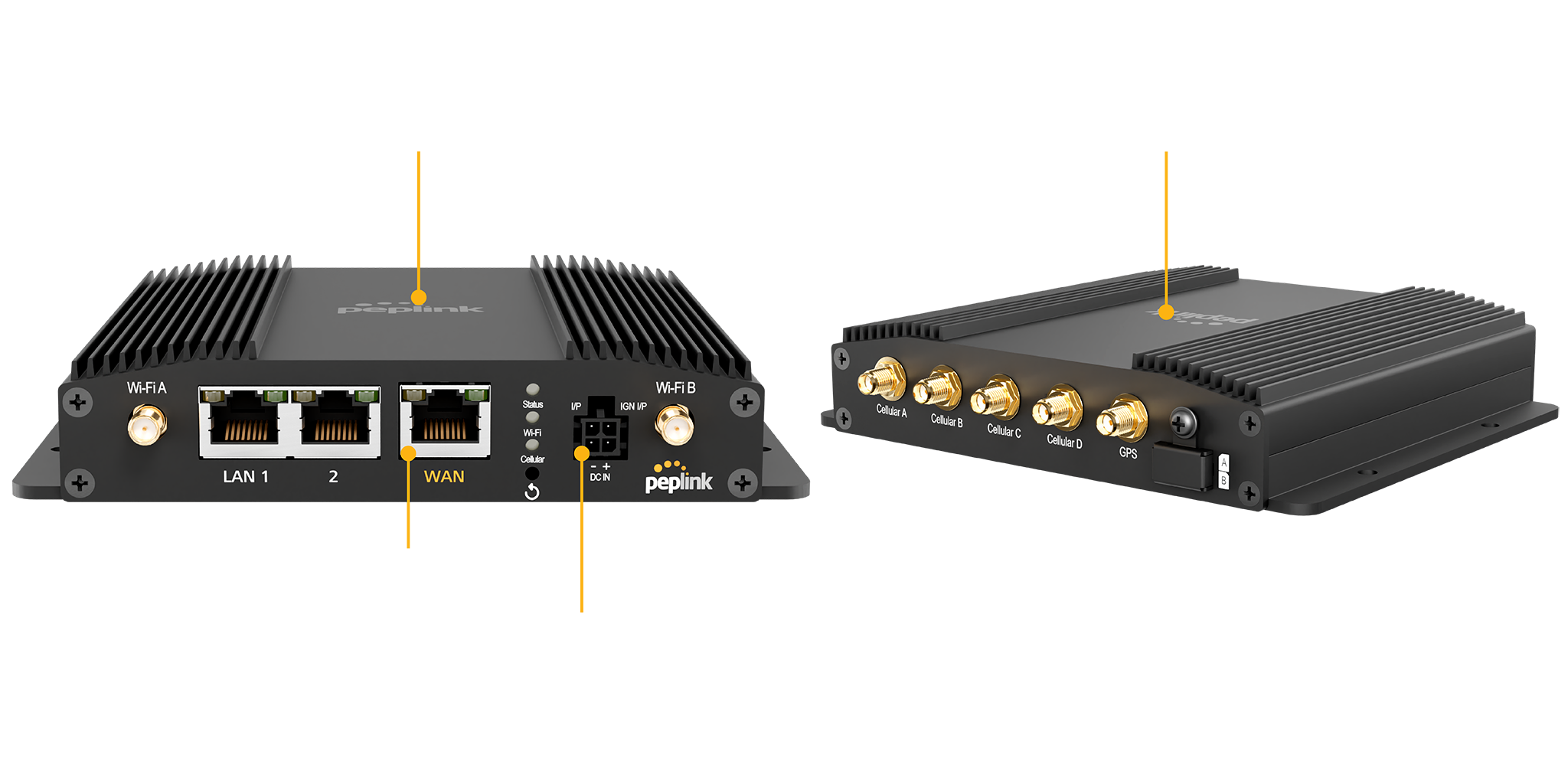

Ports and Connections
MAX BR1 Pro 5G is purpose-built for fixed and mobile deployments that require clean, clearly labeled interfaces. The front panel includes dual Gigabit LAN ports, a 2.5 Gbps WAN port, and a DC power input with ignition sensing to support synchronized power-up in vehicles, trailers, and field enclosures.

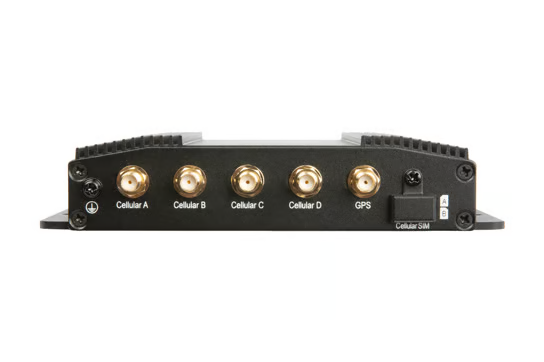

On the RF side, the chassis provides dedicated SMA connectors for Wi-Fi 6, GPS, and multi-antenna 5G cellular. This enables optimal placement of high-gain antennas while keeping the router secured inside kiosks, cabinets, or vehicle racks.
Combined with Paygasus Connect orchestration, these ports and connections support deployment as a 5G or a full router/gateway, enable segmentation of POS and IoT traffic, and maintain visibility into every WAN path that keeps mission-critical applications online.
Specs at a Glance
Key hardware, performance, and network capabilities for planning fixed, mobile, and edge deployments with MAX BR1 Pro 5G Router.
Hardware and Interfaces
Rugged metal chassis with fanless design for harsh and space constrained environments.
1 × 5G modem with LTE fallback and redundant SIM slots for carrier diversity.
1 × 2.5 Gbps Ethernet port configurable as WAN or LAN, plus 2 × Gigabit Ethernet LAN ports.
Integrated Wi-Fi 6 access point for local staff, IoT, and device connectivity at the network edge.
Performance and Environmental
Router throughput up to 1 Gbps to support multi-site and high-traffic applications.
Optimized for continuous operation in vehicles, branch sites, cabinets, and kiosks.
Rugged construction tested for shock, vibration, and temperature extremes in field deployments.
Designed for always-on connectivity in fixed, mobile, and industrial edge environments.
Network and Priority Services
Supports major North American carriers for 5G and LTE connectivity through Paygasus Connect.
Works with public safety and priority services when provisioned with Paygasus Connect policies.
Managed via InControl 2 and Paygasus Connect for centralized monitoring, configuration, and remote access.
Where MAX BR1 Pro Fits in the Paygasus Connect Lineup
A side-by-side comparison of Peplink platforms deployed through Paygasus Connect.
| Platform | Use Case | Typical Deployments |
|---|---|---|
| MAX BR1 Mini 5G | CCompact 5G option for constrained space, power, and budgets with moderate throughput requirements. | Small kiosks, single device cabins, entry level remote monitoring, simple unattended endpoints that still need managed 5G. |
| MAX BR1 Classic / LTE Platforms | LTE-based option where 5G coverage is limited or deployments are standardized on LTE connectivity. | Legacy branch sites, lower bandwidth telemetry, stable locations without gigabit-class 5G needs. |
| MAX BR1 Pro 5G | Standard platform for 5G performance, W-Fi 6, and a low-profile chassis with a 2.5 Gbps WAN/LAN port. | Fixed and mobile deployments, public safety vehicles, multi-site retail, industrial edge environments requiring SD-WAN and multiWAN scalability. |
How Paygasus Connect Deploys This 5G Edge Router
Practical deployment patterns for using MAX BR1 Pro 5G Router across fleets, fixed sites, and industrial edge environments.
Fleets and Public Safety Vehicles
Paygasus Connect deploys MAX BR1 Pro 5G in vehicles that require reliable connectivity while moving across coverage zones and carrier footprints.
Ignition-sensing power, GPS, WiFi 6, and 5G supports an always-on edge for CAD, AVL records systems, cameras, and situational-awareness tools to keep command, dispatch, and field units aligned.
Retail Sites and Unattended Payments
In branch locations and unattended kiosks, MAX BR1 Pro 5G anchors a segmented payment network with managed 5G or LTE as primary or failover WAN.
Multi-WAN design and SpeedFusion keep POS, gateway connections, and terminal management online, while Wi-Fi 6 supports staff, tablets, and IoT devices without touching cardholder data paths.
Industrial and Remote Edge Systems
For plants, utilities, and remote telemetry sites, the low-profile chassis fits into cabinets and control panels without reworking existing infrastructure.
Paygasus Connect uses MAX BR1 Pro 5G to backhaul SCADA, sensors, and video over managed 5G when wired links are unavailable or need a resilient backup path.
Temporary and Pop-Up Sites
For events, construction, and temporary command posts, MAX BR1 Pro 5G operates as a portable edge router that can be paired with fixed wireless or satellite.
Standardized templates in Paygasus Connect bring these sites online quickly with consistent security policies, monitoring, and remote access for operations teams.
SpeedFusion SD-WAN and Paygasus Connect Management
How Peplink MAX BR1 Pro 5G Router uses SpeedFusion SD-WAN and centralized management to keep mission critical applications online.
SpeedFusion SD-WAN Capabilities
MAX Br1 Prog 5G supports the full Peplink SpeedFusion feature set, enabling traffic steering across wired, 5G, LTE, and WiFi WAN links.
- Hot failover helps preserve active sessions as traffic shifts between WAN connections.
- Bonding and WAN smoothing improve voice and video performance by using multiple paths and mitigating packet loss.
- Application-aware policies route POS, dispatch, video, and telemetry over the most appropriate WAN based on performance and cost.
- VLAN and firewall support helps separate payment, operational, and guest traffic at the edge.
Managed Through Paygasus Connect
Paygasus Connect manages MAX BR1 Pro 5G as part of a unified connectivity fabric, reducing manual configuration and improving operational consistency.
- Standardized templates for fleets, branches, kiosks, and industrial sites reduce configuration drift.
- Centralized monitoring combines InControl 2 telemetry with Paygasus Connect health views, alerts, and ticketing workflows.
- Change control spans firmware, SpeedFusion profiles, and WAN policies to support safe, repeatable rollouts at scale.
- Lifecycle visibility supports planning for expansions, replacements, and capacity upgrades as requirements evolve.

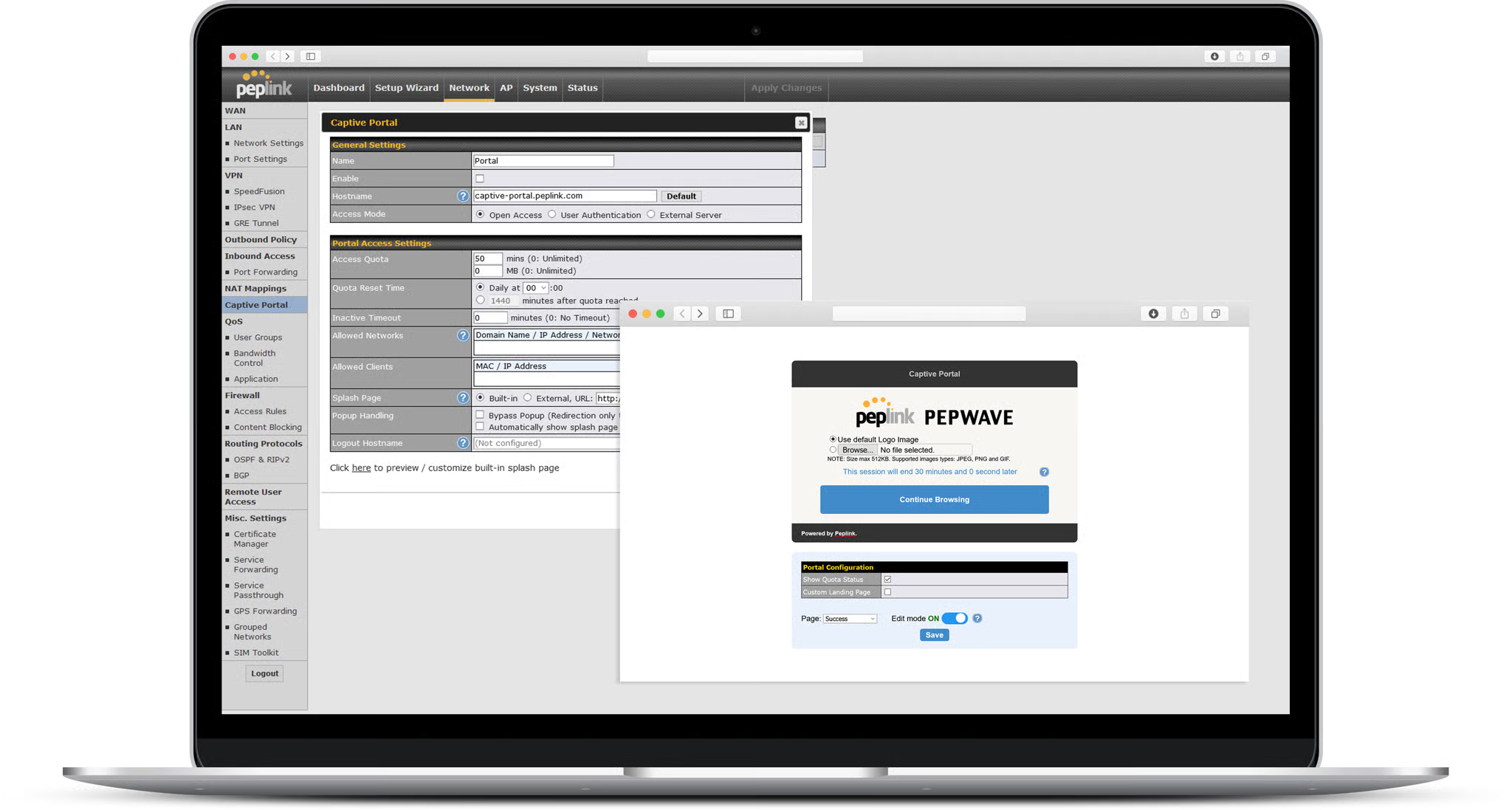

Paygasus Connect Captive Portal
Paygasus Connect’s AP Controller is a software-based access point management tool built into all Paygasus Connect Balance routers and select Pepwave MAX routers. It enables centralized management of Paygasus Connect Access Points and creation of a branded captive portal through an intuitive interface.
Photos
